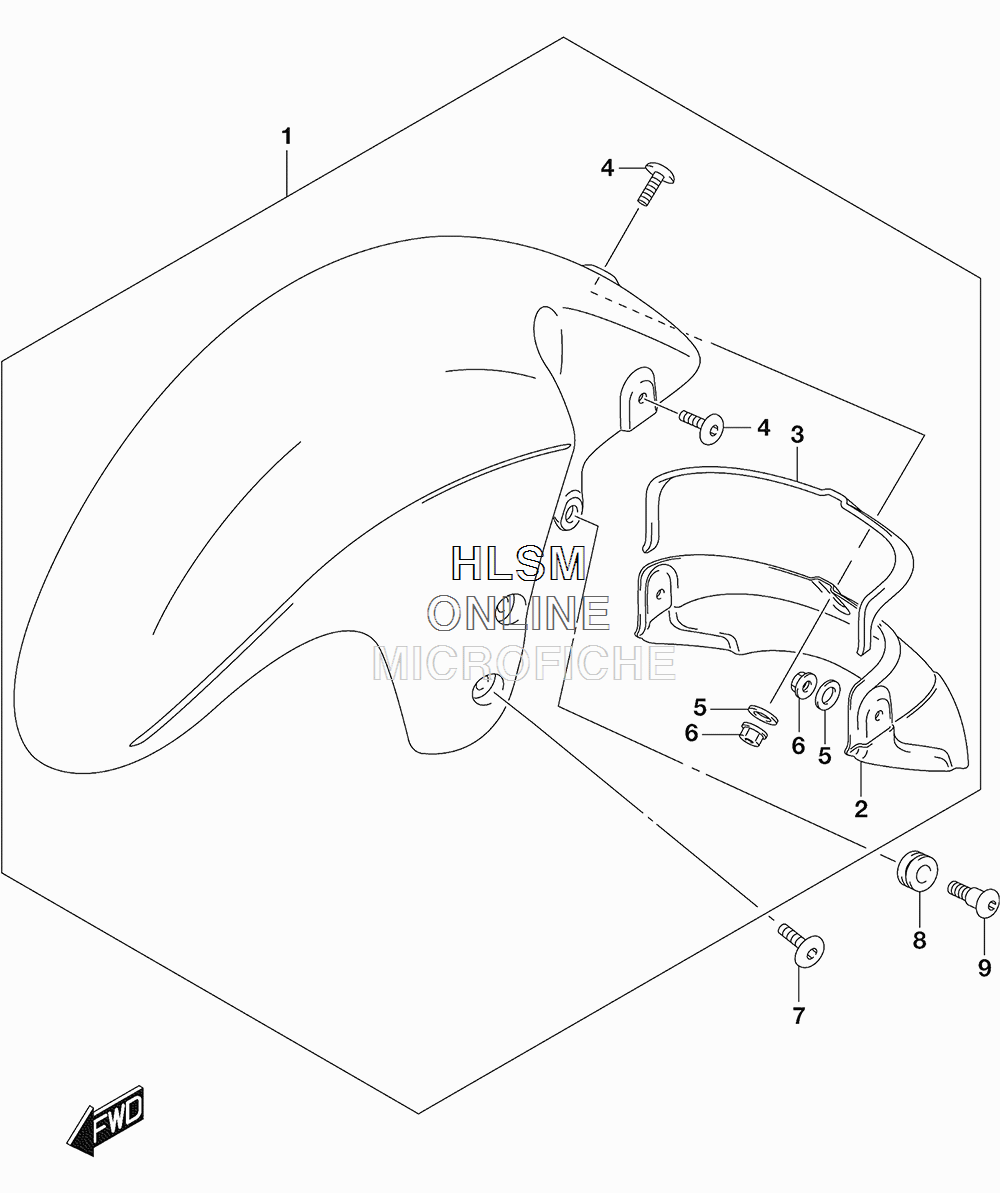

FENDER - FRONT для Suzuki GSX-1300RA L5 HAYABUSA - 2015 года выпуска
-
№АртикулНазвание
-
153100-15H00-RB5 FENDER, FRONT (WHITE) (FOR AA3)FENDER, FRONT (WHITE) (FOR AA3)
-
153100-15H00-YKY FENDER, FRONT (BLUE) (FOR ARA)FENDER, FRONT (BLUE) (FOR ARA)
-
153100-15H00-YVB FENDER, FRONT (BLACK) (FOR ASU)FENDER, FRONT (BLACK) (FOR ASU)
-
253331-15H00 MUDGUARD, FRONT FENDERMUDGUARD, FRONT FENDER
-
394424-05H00 CUSHIONCUSHION
-
409139-06129 SCREW (6X16)SCREW (6X16)
-
509160-06129 WASHER (6.5X16X1)WASHER (6.5X16X1)
-
608319-3106A NUTNUT
-
709139-06131 SCREW (6X16)SCREW (6X16)
-
809320-09016 CUSHIONCUSHION
-
909139-06146 SCREW (6X16)SCREW (6X16)
