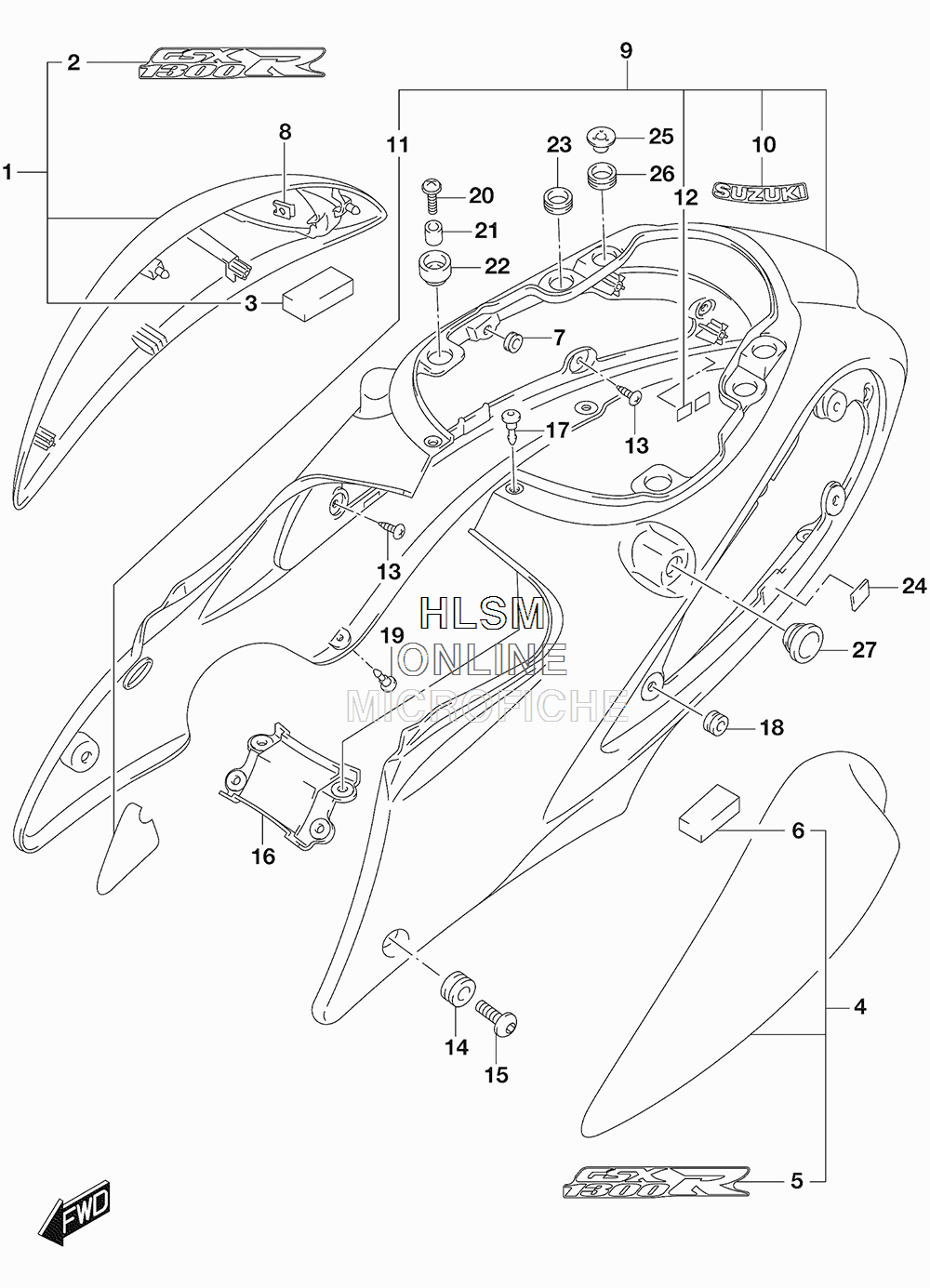

SIDE COVER для Suzuki GSX-1300RA L5 HAYABUSA - 2015 года выпуска
-
№АртикулНазвание
-
147110-15H30-YVB COVER, FRAME RIGHT HAND (BLACK) (FOR AA3)COVER, FRAME RIGHT HAND (BLACK) (FOR AA3)
-
147110-15H30-RB5 COVER, FRAME RIGHT HAND (WHITE) (FOR ARA)COVER, FRAME RIGHT HAND (WHITE) (FOR ARA)
-
147110-15H30-YKY COVER, FRAME RIGHT HAND (BLUE) (FOR ASU)COVER, FRAME RIGHT HAND (BLUE) (FOR ASU)
-
268131-15H10-A33 EMBLEM, FRAME COVEREMBLEM, FRAME COVER
-
347511-15H00 CUSHIONCUSHION
-
447210-15H30-YVB COVER, FRAME LEFT HAND (BLACK) (FOR AA3)COVER, FRAME LEFT HAND (BLACK) (FOR AA3)
-
447210-15H30-RB5 COVER, FRAME LEFT HAND (WHITE) (FOR ARA)COVER, FRAME LEFT HAND (WHITE) (FOR ARA)
-
447210-15H30-YKY COVER, FRAME LEFT HAND (BLUE) (FOR ASU)COVER, FRAME LEFT HAND (BLUE) (FOR ASU)
-
568131-15H10-A33 EMBLEM, FRAME COVEREMBLEM, FRAME COVER
-
647511-15H00 CUSHIONCUSHION
-
709320-06016 CUSHIONCUSHION
-
809148-04034 NUTNUT
-
947310-15H20-YVB COVER, FRAME CENTER (BLACK) (FOR AA3)COVER, FRAME CENTER (BLACK) (FOR AA3)
-
947310-15H20-RB5 COVER, FRAME CENTER (WHITE) (FOR ARA)COVER, FRAME CENTER (WHITE) (FOR ARA)
-
947310-15H20-5FX COVER, FRAME CENTER (BLUE) (FOR ASU)COVER, FRAME CENTER (BLUE) (FOR ASU)
-
1068641-19F00-17U EMBLEM (GRAY)EMBLEM (GRAY)
-
1147312-15H00 TAPE, CENTERTAPE, CENTER
-
1245516-01H00 CUSHIONCUSHION
-
1309136-05062 SCREW (5X15)SCREW (5X15)
-
1409320-09016 CUSHIONCUSHION
-
1509139-06190 BOLT (6X20)BOLT (6X20)
-
1647411-15H00-YVB LID, CENTER (BLACK) (FOR AA3)LID, CENTER (BLACK) (FOR AA3)
-
1647411-15H00-RB5 LID, CENTER (WHITE) (FOR ARA)LID, CENTER (WHITE) (FOR ARA)
-
1647411-15H00-YKY LID, CENTER (BLUE) (FOR ASU)LID, CENTER (BLUE) (FOR ASU)
-
1709409-06314-5PK CLIP (BLACK)CLIP (BLACK)
-
1809320-09016 CUSHIONCUSHION
-
1909409-06329 CLIPCLIP
-
2009136-06105 SCREW (6X20)SCREW (6X20)
-
2109180-06288 SPACER (6.5X10X11)SPACER (6.5X10X11)
-
2247115-16G00 CUSHION, UPPER FRONTCUSHION, UPPER FRONT
-
2347191-24F00 CUSHION, UPPER CENTERCUSHION, UPPER CENTER
-
2433651-37000 CUSHION, LOWERCUSHION, LOWER
-
2547190-24F21 WASHER, UPPER REARWASHER, UPPER REAR
-
2647191-24F30 CUSHION, UPPER REARCUSHION, UPPER REAR
-
2747191-24F20 SPACER, SIDE CENTERSPACER, SIDE CENTER
