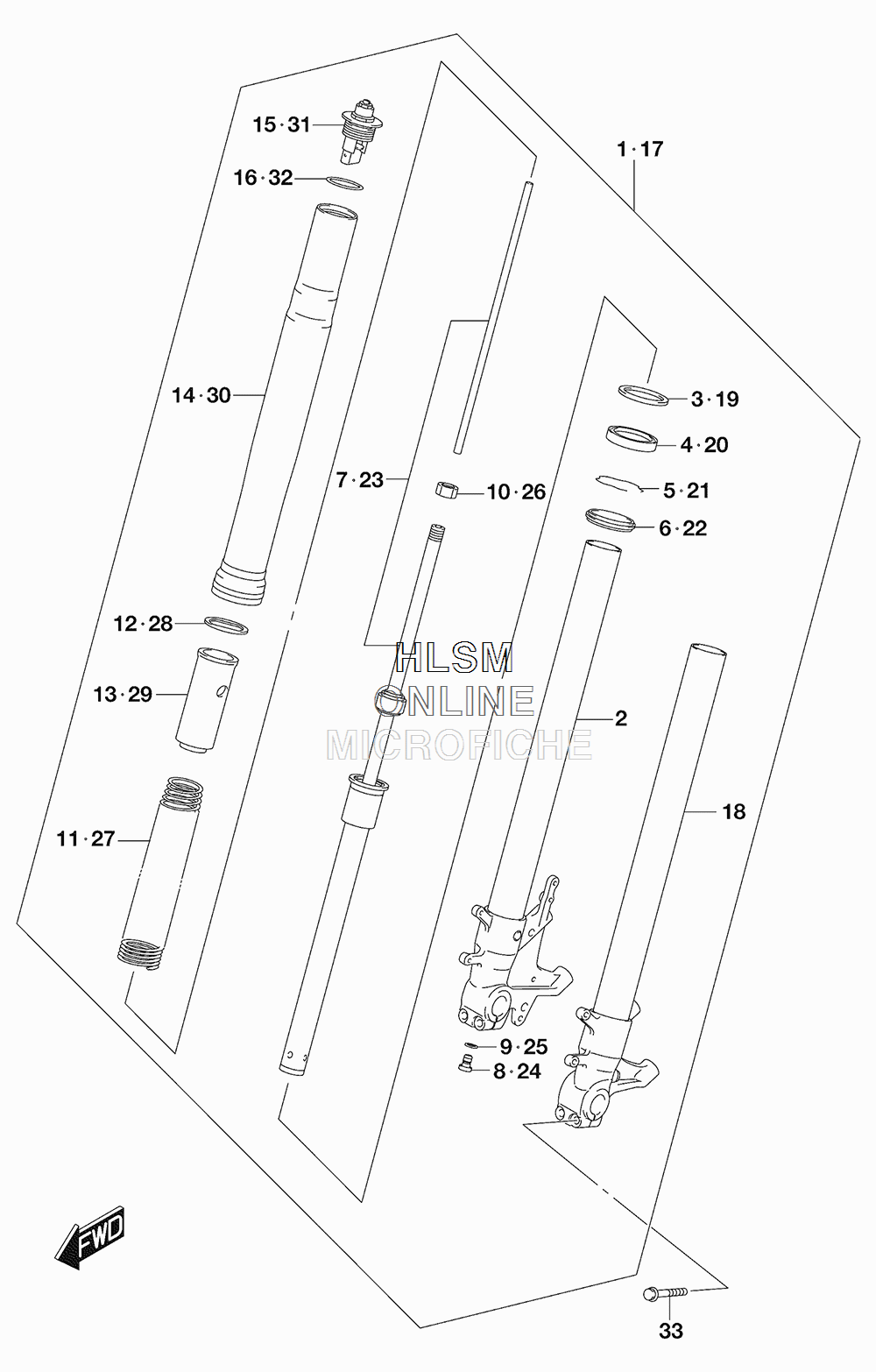

SUSPENSION - FRONT FORK для Suzuki GSX-1300RA L5 HAYABUSA - 2015 года выпуска
-
№АртикулНазвание
-
151103-24F71 DAMPER ASSY, FRONT FORK RIGHT HANDDAMPER ASSY, FRONT FORK RIGHT HAND
-
251110-24F71 TUBE, INNER RIGHT HANDTUBE, INNER RIGHT HAND
-
351158-14200 WASHERWASHER
-
451153-41G00 OIL SEALOIL SEAL
-
551156-14200 RING, STOPPERRING, STOPPER
-
651173-41G00 SEAL, DUSTSEAL, DUST
-
751146-24F50 CYLINDERCYLINDER
-
851147-24F50 BOLTBOLT
-
951148-41310 GASKETGASKET
-
1051352-13A60 NUTNUT
-
1151171-24F50 SPRING, FRONTSPRING, FRONT
-
1251158-40F30 GUIDE, SPRINGGUIDE, SPRING
-
1351176-40F30 SPACER, SPRINGSPACER, SPRING
-
1451130-24F50 TUBE, OUTERTUBE, OUTER
-
1551351-24F50 CAP, FRONT FORKCAP, FRONT FORK
-
1662278-14100 O RINGO RING
-
1751104-24F70 DAMPER ASSY, FRONT FORK LEFT HANDDAMPER ASSY, FRONT FORK LEFT HAND
-
1851120-24F70 TUBE, INNER LEFT HANDTUBE, INNER LEFT HAND
-
1951158-14200 WASHERWASHER
-
2051153-41G00 OIL SEALOIL SEAL
-
2151156-14200 RING, STOPPERRING, STOPPER
-
2251173-41G00 SEAL, DUSTSEAL, DUST
-
2351146-24F50 CYLINDERCYLINDER
-
2451147-24F50 BOLTBOLT
-
2551148-41310 GASKETGASKET
-
2651352-13A60 NUTNUT
-
2751171-24F50 SPRING, FRONTSPRING, FRONT
-
2851158-40F30 GUIDE, SPRINGGUIDE, SPRING
-
2951176-40F30 SPACER, SPRINGSPACER, SPRING
-
3051130-24F50 TUBE, OUTERTUBE, OUTER
-
3151351-24F50 CAP, FRONT FORKCAP, FRONT FORK
-
3262278-14100 O RINGO RING
-
3351166-24F60 BOLTBOLT
