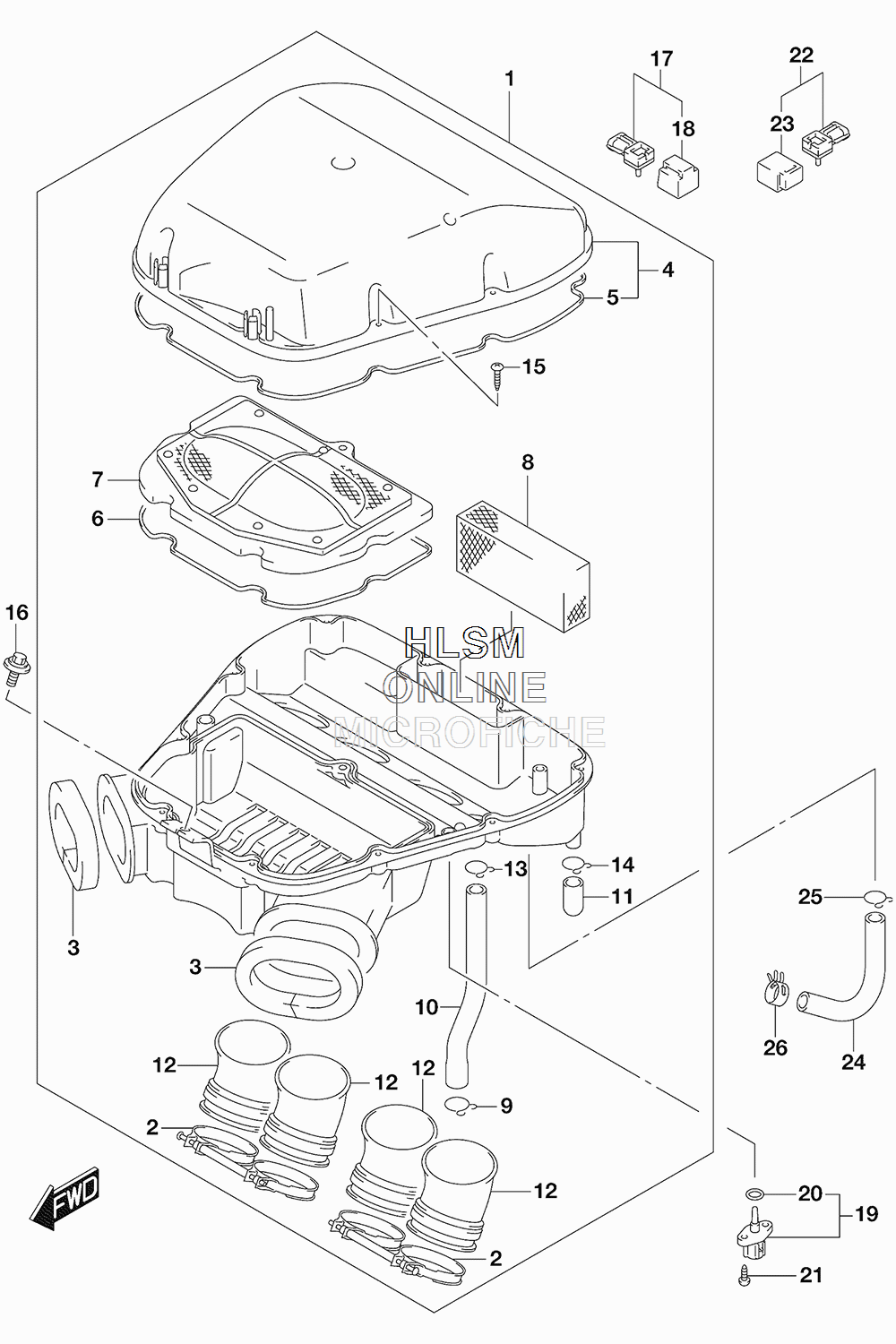

AIR CLEANER для Suzuki GSX-1300RA L5 HAYABUSA - 2015 года выпуска
-
№АртикулНазвание
-
113700-15H02 CLEANER ASSY, AIRCLEANER ASSY, AIR
-
213170-15H10 CLAMPCLAMP
-
313736-15H01 CUSHION, DUCTCUSHION, DUCT
-
413740-15H00 CAP, AIR CLEANERCAP, AIR CLEANER
-
513746-15H00 GASKET, CAPGASKET, CAP
-
613756-15H00 GASKET, CASEGASKET, CASE
-
713780-15H00 FILTER ASSYFILTER ASSY
-
813788-15H00 FILTER, BREATHERFILTER, BREATHER
-
909401-16401 CLIPCLIP
-
1013853-15H00 TUBE, BREATHERTUBE, BREATHER
-
1113859-41B10 PLUGPLUG
-
1213882-41G00 TUBE, OUTLETTUBE, OUTLET
-
1309401-14101 CLIPCLIP
-
1409401-14101 CLIPCLIP
-
1503541-0525A SCREWSCREW
-
1609116-06130 BOLT (6X16)BOLT (6X16)
-
1715630-29G40 SENSOR, BOOSTSENSOR, BOOST
-
1815625-29G40 COVERCOVER
-
1913650-14G10 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
2013655-14G10 O RINGO RING
-
2103511-0516A SCREWSCREW
-
2215630-29G30 SENSOR, AIR PRESSURESENSOR, AIR PRESSURE
-
2315625-29G30 COVERCOVER
-
2413697-15H00 HOSE, ISC VALVEHOSE, ISC VALVE
-
2509401-15101 CLIPCLIP
-
2609401-16403 CLIPCLIP
