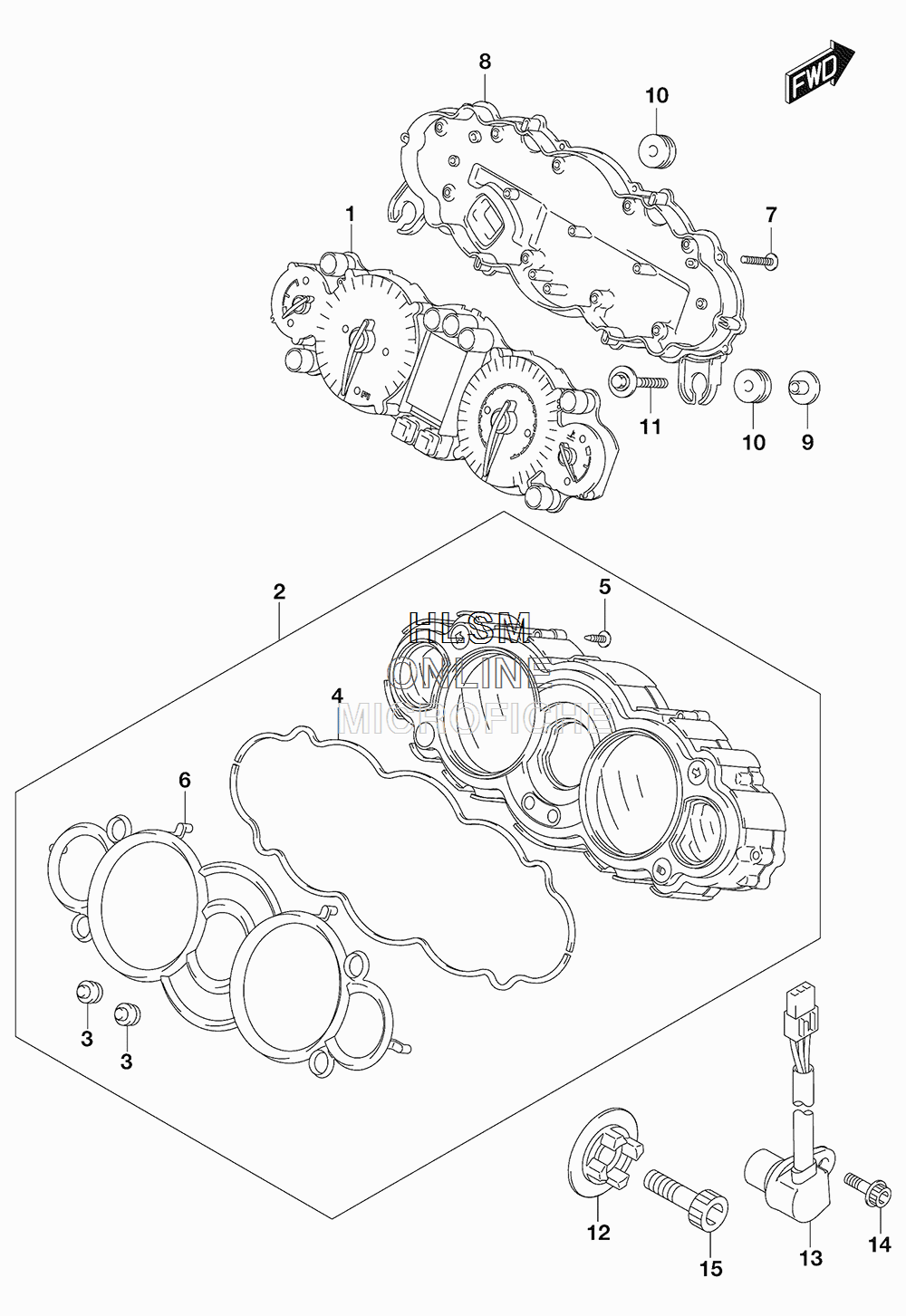

SPEEDOMETER для Suzuki GSX-1300RA L5 HAYABUSA - 2015 года выпуска
-
№АртикулНазвание
-
134120-15H30 COMBINATION METERCOMBINATION METER
-
234150-15H00 UPPER CASE ASSYUPPER CASE ASSY
-
334124-39G00 SWITCH RUBBERSWITCH RUBBER
-
434153-15H00 PACKINGPACKING
-
534183-31F10 SCREW (2.3X8)SCREW (2.3X8)
-
634193-15H00 RINGRING
-
709132-03008 SCREW (3X16)SCREW (3X16)
-
834111-15H01 LOWER CASE ASSYLOWER CASE ASSY
-
934187-24F00 WASHER, SPEEDOMETERWASHER, SPEEDOMETER
-
1034955-13E00 CUSHION, SPEEDOMETERCUSHION, SPEEDOMETER
-
1109116-06186 BOLT (6X25)BOLT (6X25)
-
1234981-47H01 ROTOR, SPEEDROTOR, SPEED
-
1334990-35F00 SENSOR, SPEEDSENSOR, SPEED
-
1407120-0512B BOLTBOLT
-
1507130-0825B BOLTBOLT
