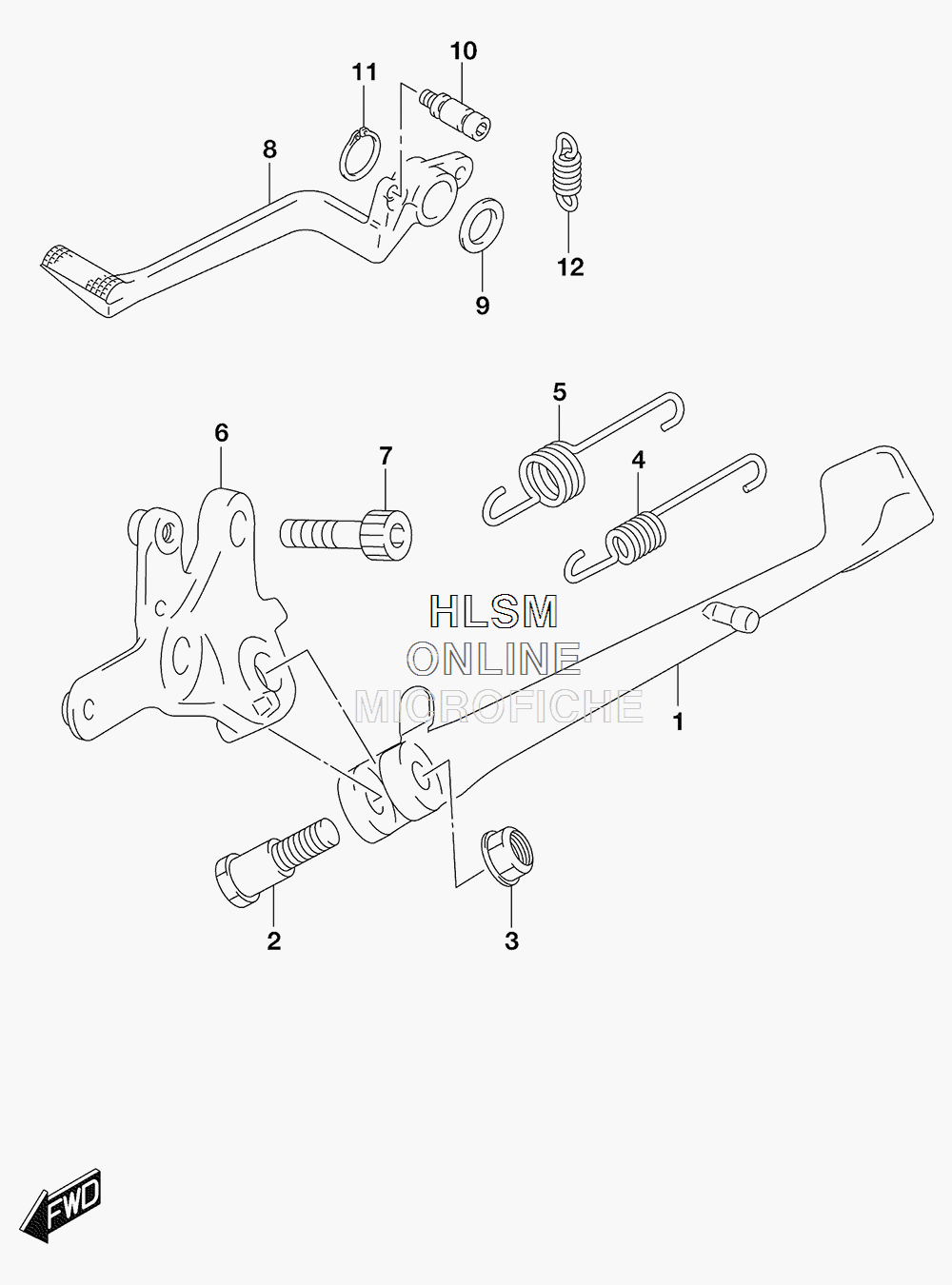

BRAKE PEDAL W/ STAND для Suzuki GSX-1300RA L5 HAYABUSA - 2015 года выпуска
-
№АртикулНазвание
-
142310-24F00 STAND, PROPSTAND, PROP
-
209111-10059 BOLT (10X21)BOLT (10X21)
-
309159-10103 NUTNUT
-
409443-14068 SPRINGSPRING
-
509443-19015 SPRINGSPRING
-
642330-24F01 BRACKET, PROP STANDBRACKET, PROP STAND
-
709106-12003 BOLT (12X35)BOLT (12X35)
-
843111-24F01 PEDAL, BRAKEPEDAL, BRAKE
-
909160-18022 WASHER (18X24X1)WASHER (18X24X1)
-
1043561-24F00 HOOK, RETURN SPRINGHOOK, RETURN SPRING
-
1108331-3118A CLIPCLIP
-
1209443-13032 SPRINGSPRING
