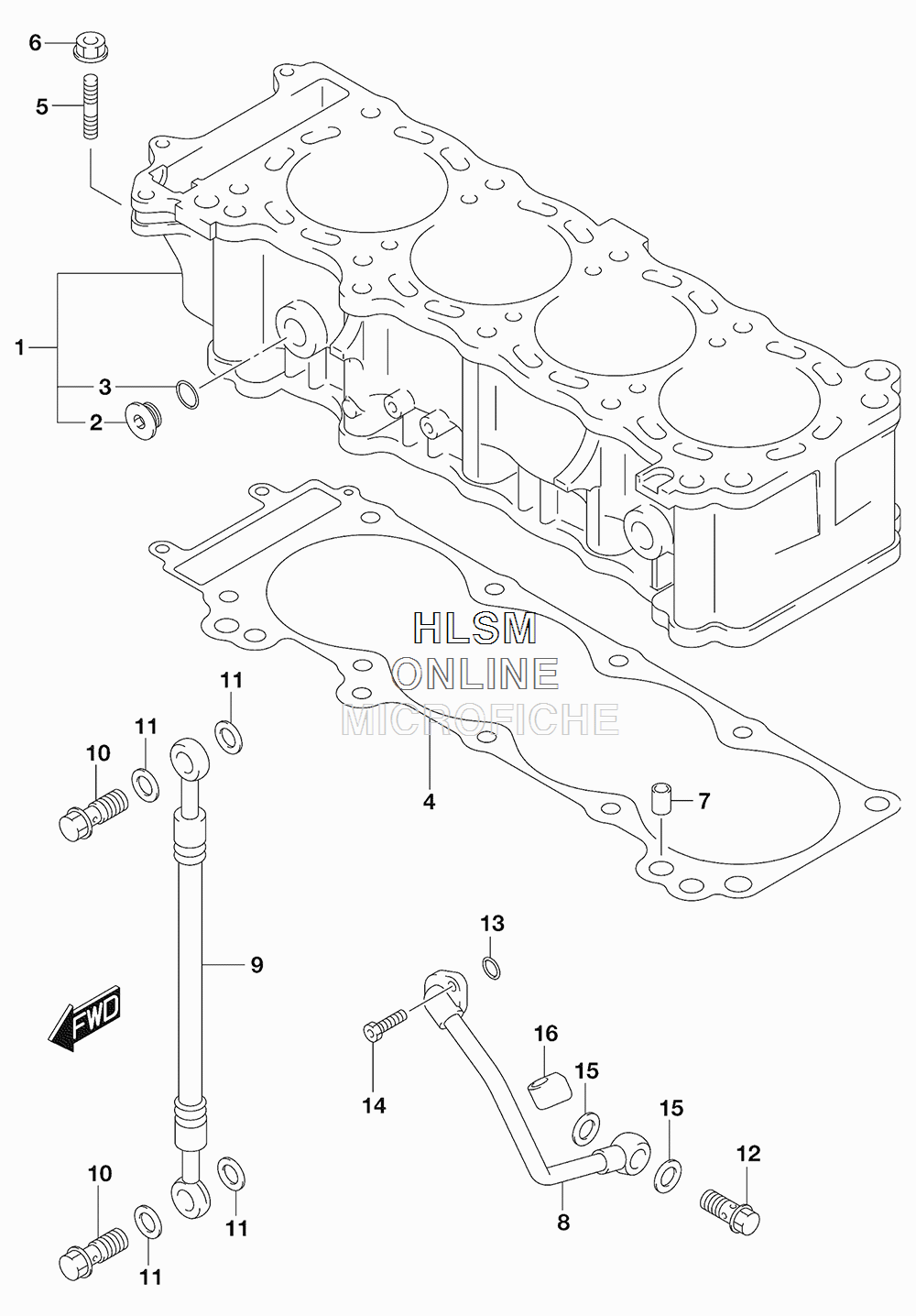

CYLINDER для Suzuki GSX-1300RA L5 HAYABUSA - 2015 года выпуска
-
№АртикулНазвание
-
111210-15H00-0F0 CYLINDERCYLINDER
-
211318-35F00 PLUG, WATER JACKETPLUG, WATER JACKET
-
309280-20002 O RING (D:3.1,ID:19.4)O RING (D:3.1,ID:19.4)
-
411241-15H00 GASKETGASKET
-
501421-0625B STUD BOLTSTUD BOLT
-
608316-1006B NUTNUT
-
704211-11169 PINPIN
-
811280-24F00 PIPE, CRANKCASE OILPIPE, CRANKCASE OIL
-
911282-24F00 HOSE, OILHOSE, OIL
-
1009360-10062 UNIONUNION
-
1109168-10007 GASKET (10.1X16X1)GASKET (10.1X16X1)
-
1209360-14012 UNIONUNION
-
1309280-12012 O RING (D:2.4,ID:11.8)O RING (D:2.4,ID:11.8)
-
1409106-06073 BOLT (6X16)BOLT (6X16)
-
1509168-14015 GASKET (14X20X1.5)GASKET (14X20X1.5)
-
1611283-24F00 CUSHION, CRANKCASE OIL PIPECUSHION, CRANKCASE OIL PIPE
