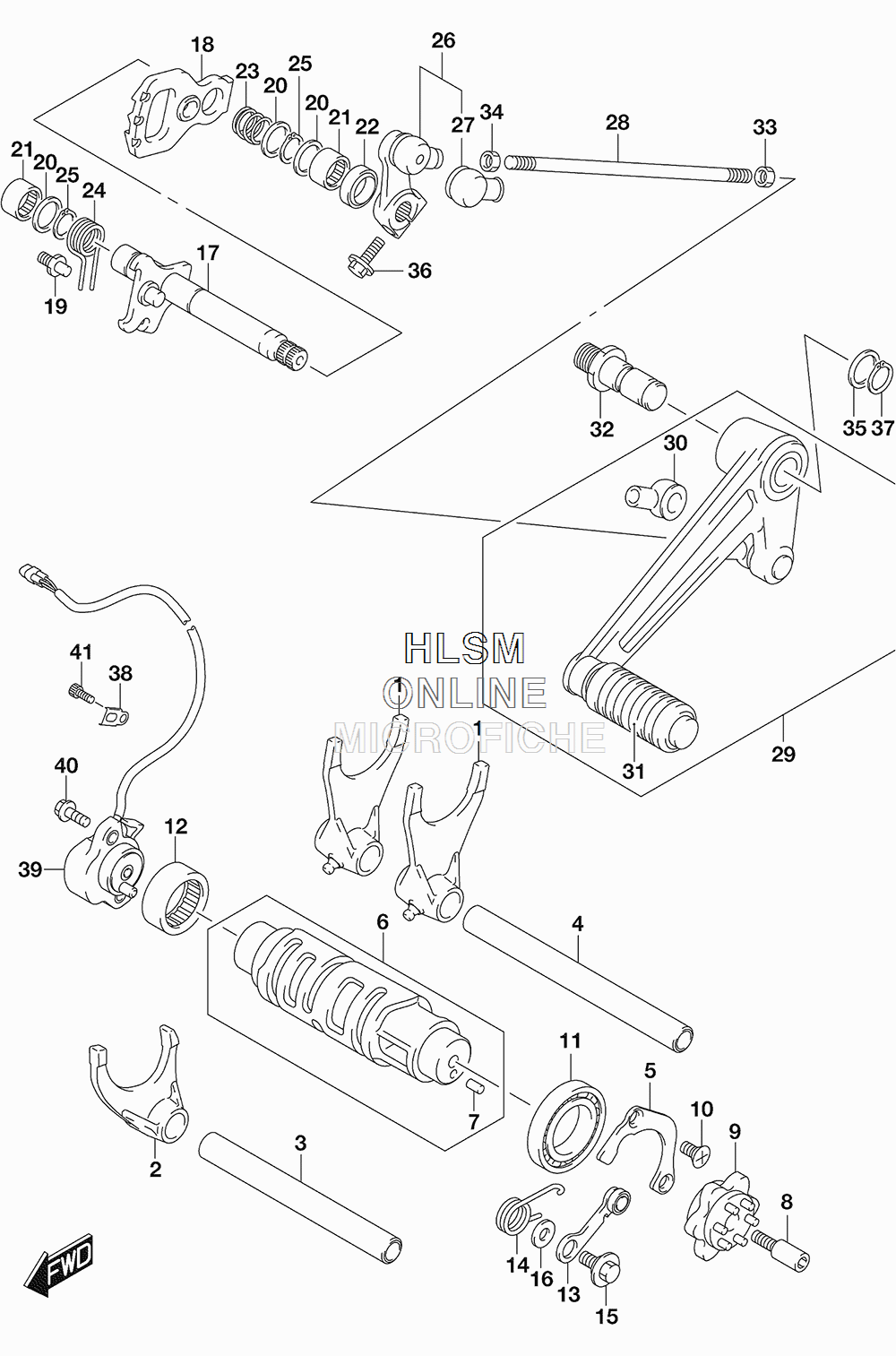

GEAR SHIFTING для Suzuki GSX-1300RA L5 HAYABUSA - 2015 года выпуска
-
№АртикулНазвание
-
125211-24F20 FORK, GEAR SHIFT NO.1FORK, GEAR SHIFT NO.1
-
225231-24F20 FORK, GEAR SHIFT NO.3FORK, GEAR SHIFT NO.3
-
325411-24F00 SHAFT, GEAR SHIFT NO.2 (L:132)SHAFT, GEAR SHIFT NO.2 (L:132)
-
425411-38B01 SHAFT, GEAR SHIFT NO.1 (L:152)SHAFT, GEAR SHIFT NO.1 (L:152)
-
524741-24F10 RETAINER, SHIFT CAM BEARINGRETAINER, SHIFT CAM BEARING
-
625310-24F00 CAM, GEAR SHIFTCAM, GEAR SHIFT
-
704221-04089 PINPIN
-
825312-42F01 STOPPER, SHIFT CAM DRIVE PLATESTOPPER, SHIFT CAM DRIVE PLATE
-
925381-13E00 PLATE, GEAR SHIFT CAMPLATE, GEAR SHIFT CAM
-
1009126-06011 SCREW (6X12)SCREW (6X12)
-
1109262-25006 BEARING (25X47X8)BEARING (25X47X8)
-
1209263-25018 BEARING (25X32X12) (RIGHT HAND)BEARING (25X32X12) (RIGHT HAND)
-
1325350-24F00 STOPPER, SHIFT CAMSTOPPER, SHIFT CAM
-
1425355-24F00 SPRING, SHIFT CAM STOPPERSPRING, SHIFT CAM STOPPER
-
1509111-06041 BOLT (6X14.3)BOLT (6X14.3)
-
1608211-06141 WASHERWASHER
-
1725510-15H00 SHAFT, GEARSHAFT, GEAR
-
1825512-06G10 PLATE, GEAR SHIFT CAM DRIVEPLATE, GEAR SHIFT CAM DRIVE
-
1925671-01011 STOPPER, GEAR SHIFT ARMSTOPPER, GEAR SHIFT ARM
-
2009181-14167 SHIM (14X22X1) (RIGHT HAND)SHIM (14X22X1) (RIGHT HAND)
-
2109263-14027 BEARING (14X20X12)BEARING (14X20X12)
-
2209283-14005 OIL SEAL (14X22X7.3)OIL SEAL (14X22X7.3)
-
2309440-17009 SPRINGSPRING
-
2409444-20001 SPRINGSPRING
-
2508331-3114A CIRCLIPCIRCLIP
-
2625520-40F10 ARM, GEAR SHIFT LINKARM, GEAR SHIFT LINK
-
2725526-47000 COVER, DUSTCOVER, DUST
-
2825525-19F10 ROD, GEAR SHIFT LINK (L:150)ROD, GEAR SHIFT LINK (L:150)
-
2925600-17G10 LEVER ASSY, GEAR SHIFTLEVER ASSY, GEAR SHIFT
-
3025526-47000 COVER, DUSTCOVER, DUST
-
3125652-20C00 RUBBER, GEAR SHIFT PEDALRUBBER, GEAR SHIFT PEDAL
-
3225617-03F10 SHAFT, GEAR SHIFT LEVERSHAFT, GEAR SHIFT LEVER
-
3309140-06020 NUTNUT
-
3409140-06025 NUT (LEFT HAND)NUT (LEFT HAND)
-
3509160-12011 WASHER (12.5X20X1)WASHER (12.5X20X1)
-
3601500-0625A BOLTBOLT
-
3708331-3112A CIRCLIPCIRCLIP
-
3831497-45000 CLAMP, POSITION SENSOR LEADCLAMP, POSITION SENSOR LEAD
-
3937730-15H01 SENSOR ASSY, GEAR POSITIONSENSOR ASSY, GEAR POSITION
-
4007120-0516A BOLTBOLT
-
4107130-0510A BOLTBOLT
