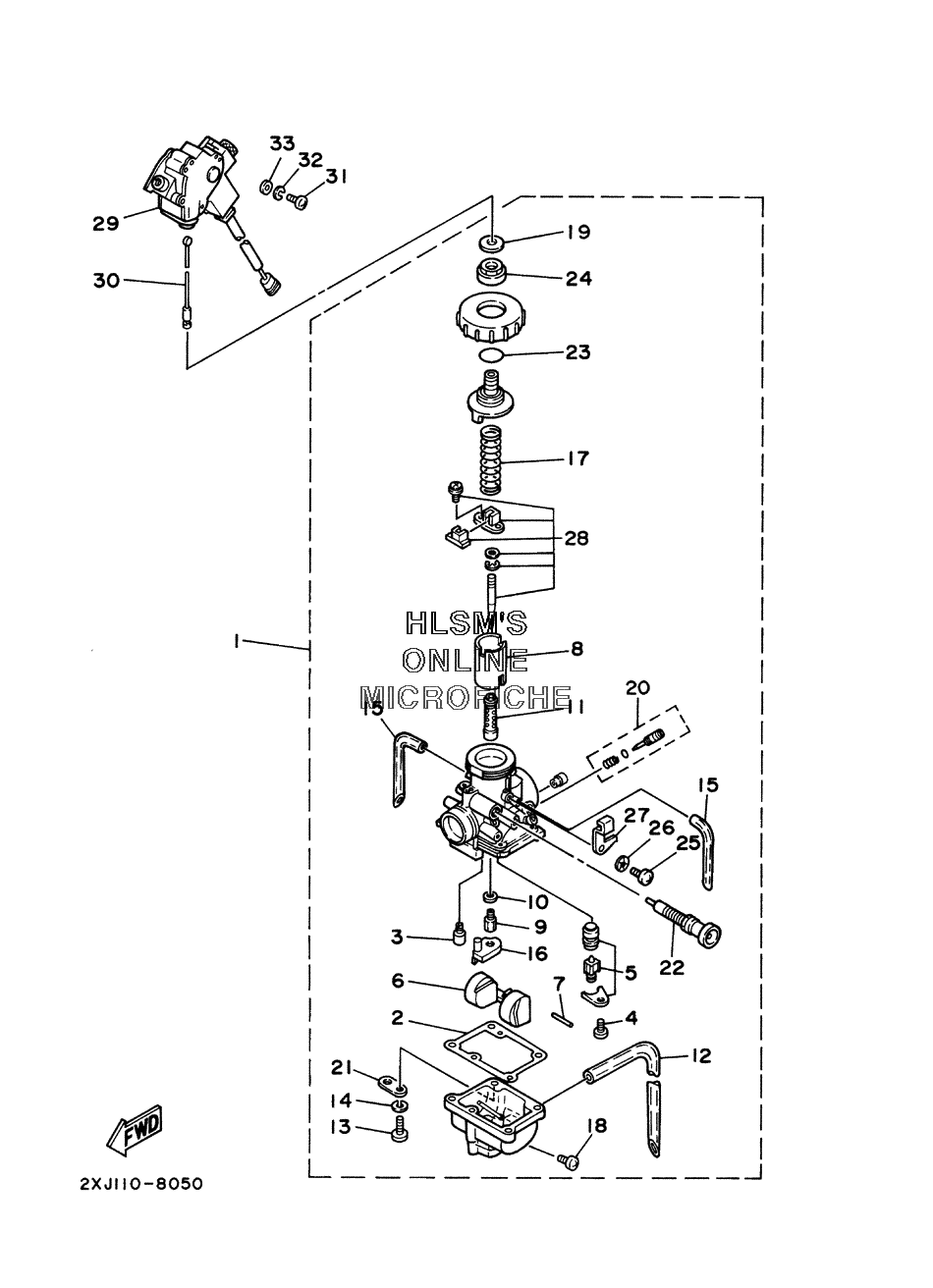

CARBURETOR для Yamaha BLASTER YFS200M (5KJ1) - 2000 года выпуска
-
№АртикулНазвание
-
12XJ-14101-01-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
2304-14184-00-00 ...GASKET, FLOAT CHAMBER...GASKET, FLOAT CHAMBER
-
3260-14142-32-00 ...JET, PILOT (# 32.5)...JET, PILOT (# 32.5)
-
498502-04008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
52MA-14107-28-00 ...NEEDLE VALVE SET...NEEDLE VALVE SET
-
64L0-14185-00-00 ...FLOAT...FLOAT
-
7537-14186-00-00 ...PIN, FLOAT...PIN, FLOAT
-
82XJ-14112-20-00 ...VALVE, THROTTLE 1...VALVE, THROTTLE 1
-
9137-14143-46-00 ...JET, MAIN (#230)...JET, MAIN (#230)
-
10137-14153-00-00 ...WASHER, MAIN JET...WASHER, MAIN JET
-
114L0-14141-46-00 ...NOZZLE, MAIN...NOZZLE, MAIN
-
122NL-14197-00-00 ...PIPE...PIPE
-
1398502-04016-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1492990-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
154L0-14197-00-00 ...PIPE...PIPE
-
162GU-14153-00-00 ...RING...RING
-
17248-14131-00-00 ...SPRING, THROTTLE VALVE...SPRING, THROTTLE VALVE
-
1812R-14191-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
192GU-14952-00-00 ...WASHER...WASHER
-
2010W-14104-00-00 ...AIR SCREW SET...AIR SCREW SET
-
21500-14146-00-00 ...PLATE...PLATE
-
222GU-14171-00-00 ...PLUNGER, STARTER...PLUNGER, STARTER
-
23558-14147-00-00 ...O-RING...O-RING
-
242GU-14161-00-00 ...NUT, CABLE ADJUSTING...NUT, CABLE ADJUSTING
-
2598502-05008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2692990-05100-00 ...WASHER, SPRING...WASHER, SPRING
-
272GU-14243-00-00 ...PLATE...PLATE
-
282XJ-1490J-00-00 ...NEEDLE SET...NEEDLE SET
-
293JM-8259E-00-00 SWITCH ASSYSWITCH ASSY
-
302GU-2633K-00-00 WIRE, INNER 1WIRE, INNER 1
-
3198507-03010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3292907-03100-00 WASHERWASHER
-
3392907-03600-00 WASHERWASHER
