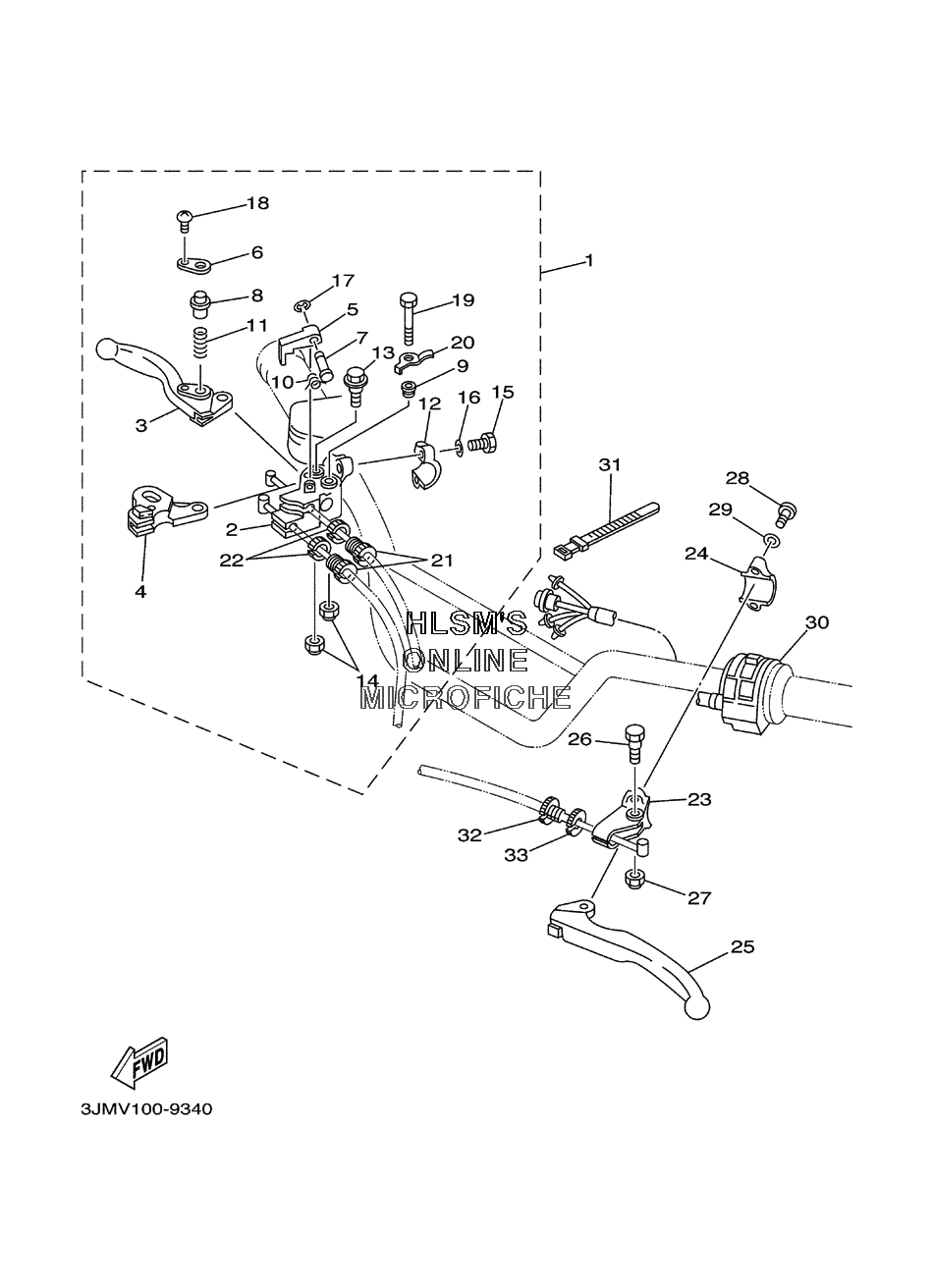

HANDLEBAR - SWITCHES/LEVERS для Yamaha BLASTER YFS200M (5KJ1) - 2000 года выпуска
-
№АртикулНазвание
-
13JM-82920-10-00 LEVER HOLDER ASSY (RIGHT)LEVER HOLDER ASSY (RIGHT)
-
23GH-82921-01-00 ...HOLDER, LEVER 2...HOLDER, LEVER 2
-
33GH-83922-00-00 ...LEVER 2...LEVER 2
-
43GH-83912-00-00 ...LEVER 1...LEVER 1
-
53JM-83965-00-00 ...LEVER, LOCK...LEVER, LOCK
-
61UY-83935-00-00 ...COVER...COVER
-
73FA-83967-00-00 ...PIN, LOCK 1...PIN, LOCK 1
-
81UY-83967-00-00 ...PIN, LOCK 1...PIN, LOCK 1
-
91UY-83913-00-00 ...COLLAR, LEVER 1...COLLAR, LEVER 1
-
103GH-83966-00-00 ...SPRING, RETURN...SPRING, RETURN
-
111UY-83962-00-00 ...SPRING...SPRING
-
122XJ-82913-00-00 ...HOLDER, LEVER LOWER 1...HOLDER, LEVER LOWER 1
-
1390109-06797-00 ...BOLT...BOLT
-
1495607-06100-00 ...NUT, U...NUT, U
-
1597027-06025-00 ...BOLT...BOLT
-
1692907-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
173FA-26466-00-00 ...RING, SNAP...RING, SNAP
-
1898507-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1995807-06040-00 ...BOLT, FLANGE...BOLT, FLANGE
-
203JM-8331L-10-00 ...PLATE, STOPPER...PLATE, STOPPER
-
2190123-08046-00 ...BOLT...BOLT
-
2290179-08148-00 ...NUT...NUT
-
2338V-82911-00-00 HOLDER, LEVER 1HOLDER, LEVER 1
-
2438V-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
251NV-83912-00-00 LEVER 1LEVER 1
-
2690109-06799-00 BOLTBOLT
-
2795607-06100-00 NUT, UNUT, U
-
2898507-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2992907-05100-00 WASHER, SPRINGWASHER, SPRING
-
302XJ-83975-01-00 SWITCH, HANDLE 2SWITCH, HANDLE 2
-
31437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
3290123-08046-00 BOLTBOLT
-
3390179-08148-00 NUTNUT
