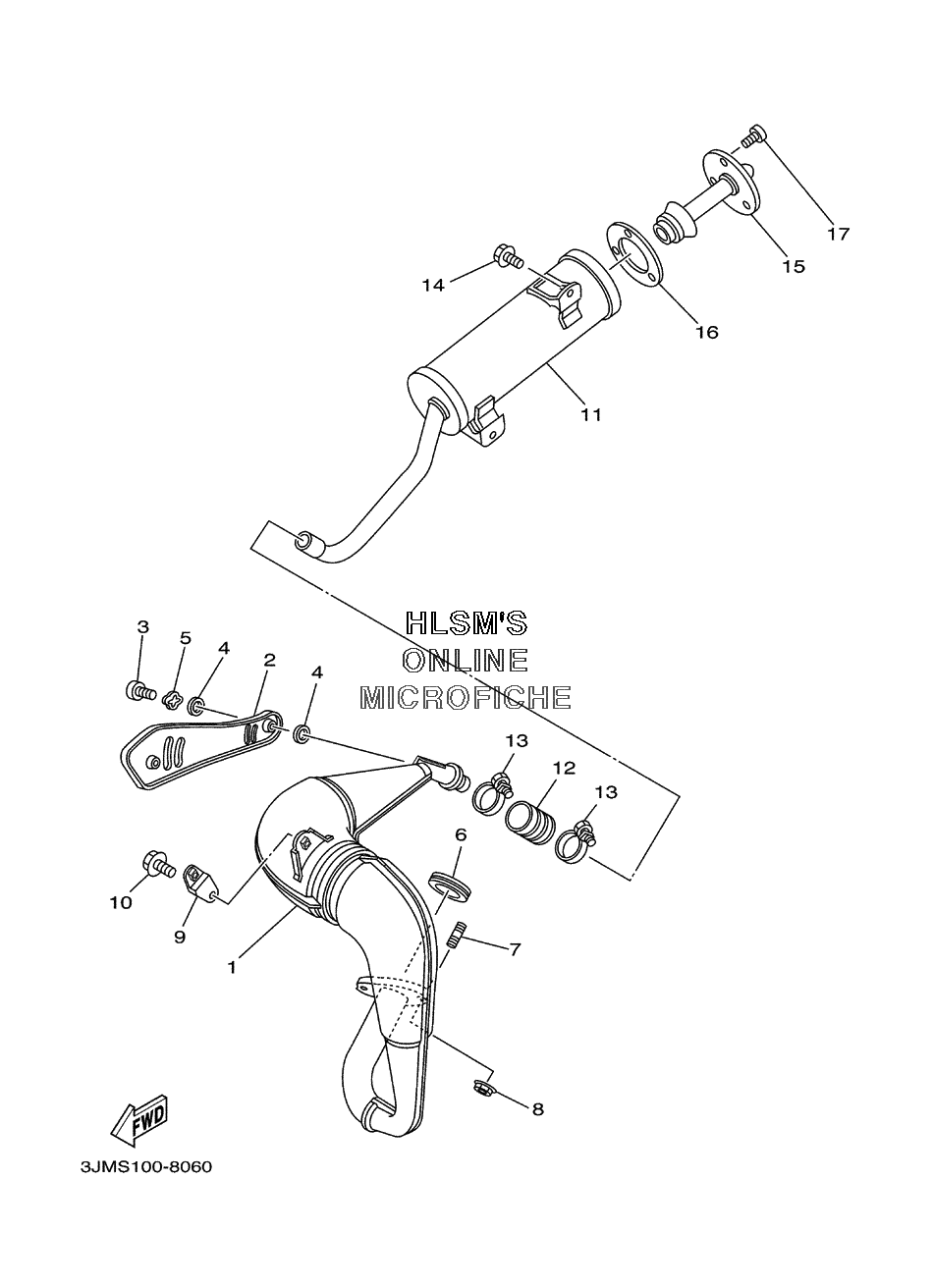

EXHAUST для Yamaha BLASTER YFS200M (5KJ1) - 2000 года выпуска
-
№АртикулНазвание
-
12XJ-14610-00-00 EXHAUST PIPE ASSY 1EXHAUST PIPE ASSY 1
-
22XJ-14718-00-00 PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
398907-06010-00 SCREW, BINDSCREW, BIND
-
44BD-14766-00-00 WASHER, PROTECTORWASHER, PROTECTOR
-
590206-06090-00 WASHER, WAVEWASHER, WAVE
-
63PA-14613-10-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
790116-08042-00 BOLT, STUDBOLT, STUD
-
890179-08270-00 NUTNUT
-
9565-14771-00-00 STAY, MUFFLER 1STAY, MUFFLER 1
-
1095817-06012-00 BOLT, FLANGEBOLT, FLANGE
-
112XJ-14753-00-00 SILENCER, EXHAUSTSILENCER, EXHAUST
-
121W2-14714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
1390460-37026-00 CLAMP, HOSECLAMP, HOSE
-
1495817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
152XJ-14752-00-00 PIPE, OUTLETPIPE, OUTLET
-
162XJ-14755-10-00 GASKET, SILENCERGASKET, SILENCER
-
1798907-06010-00 SCREW, BINDSCREW, BIND
