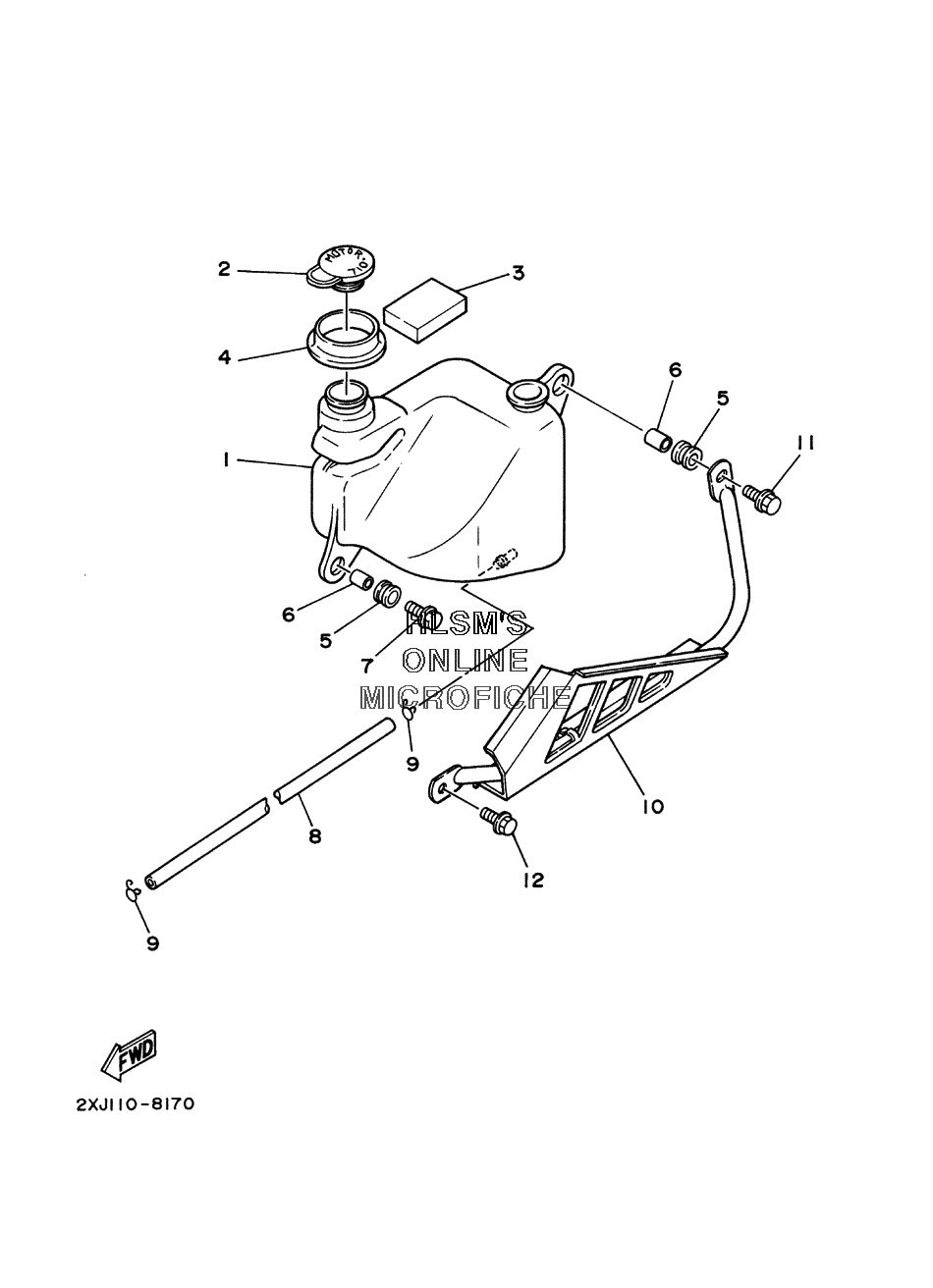

OIL TANK для Yamaha BLASTER YFS200M (5KJ1) - 2000 года выпуска
-
№АртикулНазвание
-
12XJ-21751-01-00 TANK, OILTANK, OIL
-
22N3-21771-01-00 BODY, CAPBODY, CAP
-
32XJ-21746-00-00 DAMPERDAMPER
-
490480-48493-00 GROMMETGROMMET
-
590480-13238-00 GROMMETGROMMET
-
690387-07391-00 COLLARCOLLAR
-
795827-06025-00 BOLT, FLANGEBOLT, FLANGE
-
890445-084J3-00 HOSEHOSE
-
990467-08075-00 CLIPCLIP
-
102XJ-2172W-00-00 COVERCOVER
-
1195827-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1295827-06025-00 BOLT, FLANGEBOLT, FLANGE
