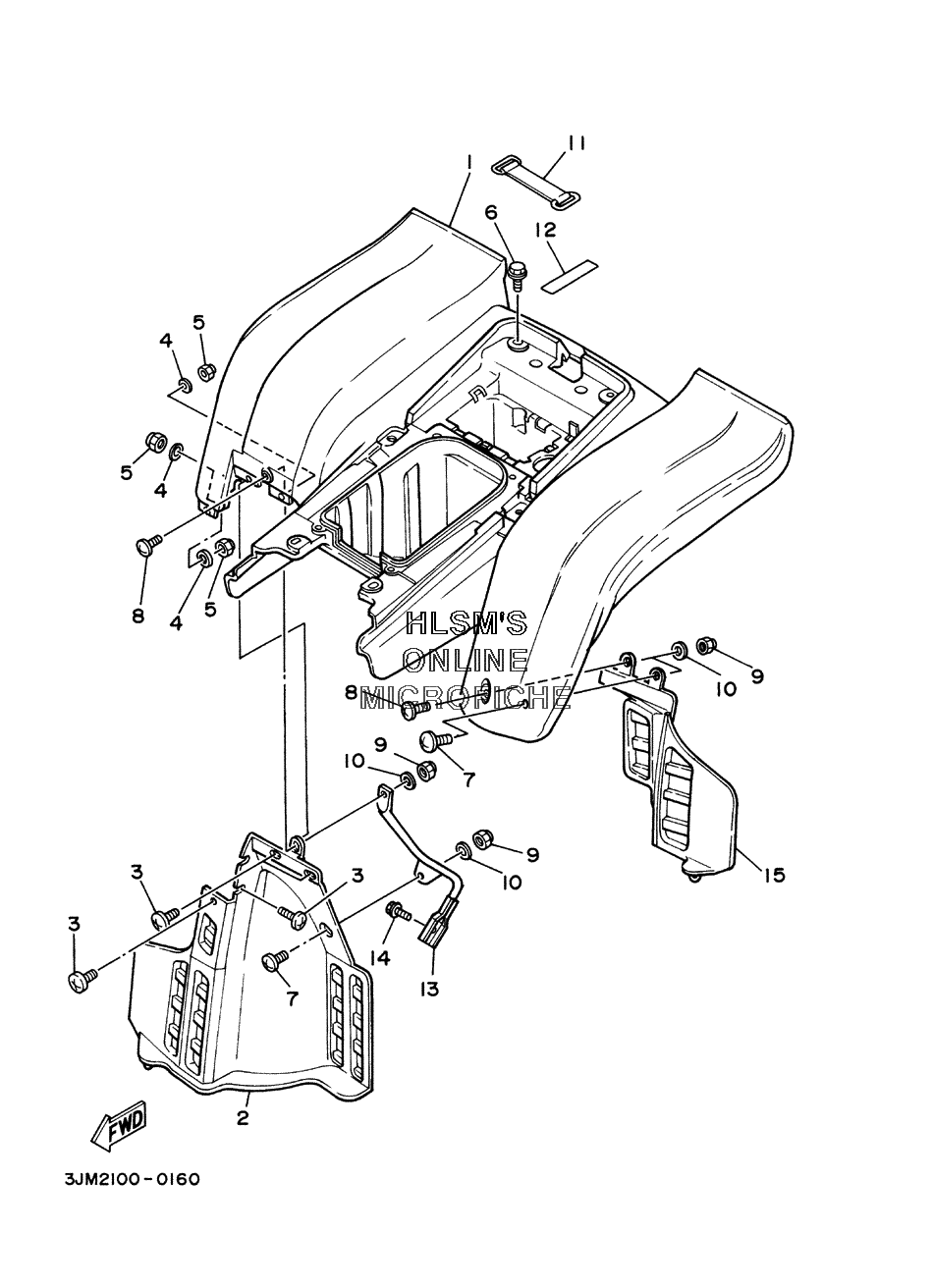

FENDER - REAR для Yamaha BLASTER YFS200M (5KJ1) - 2000 года выпуска
-
№АртикулНазвание
-
12XJ-W2161-N1-00 REAR FENDER COMP. (RADICAL WHITE) (RW)REAR FENDER COMP. (RADICAL WHITE) (RW)
-
12XJ-W2161-R1-00 REAR FENDER COMP. (DEEP PURPLISH BLUE SOLID E) (DPBSE)REAR FENDER COMP. (DEEP PURPLISH BLUE SOLID E) (DPBSE)
-
23JM-21621-00-00 FLAPFLAP
-
390154-05005-00 SCREW, BINDINGSCREW, BINDING
-
492907-05200-00 WASHERWASHER
-
595607-05100-00 NUT, UNUT, U
-
690119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
790149-06306-00 SCREWSCREW
-
890150-06037-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
995607-06100-00 NUT, UNUT, U
-
1092907-06200-00 WASHERWASHER
-
112T4-82131-00-00 BAND, BATTERYBAND, BATTERY
-
1293210-61750-00 O-RINGO-RING
-
132XJ-21614-00-00 STAY, FENDER 2STAY, FENDER 2
-
1492017-08012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
153JM-21691-00-00 FLAPFLAP
