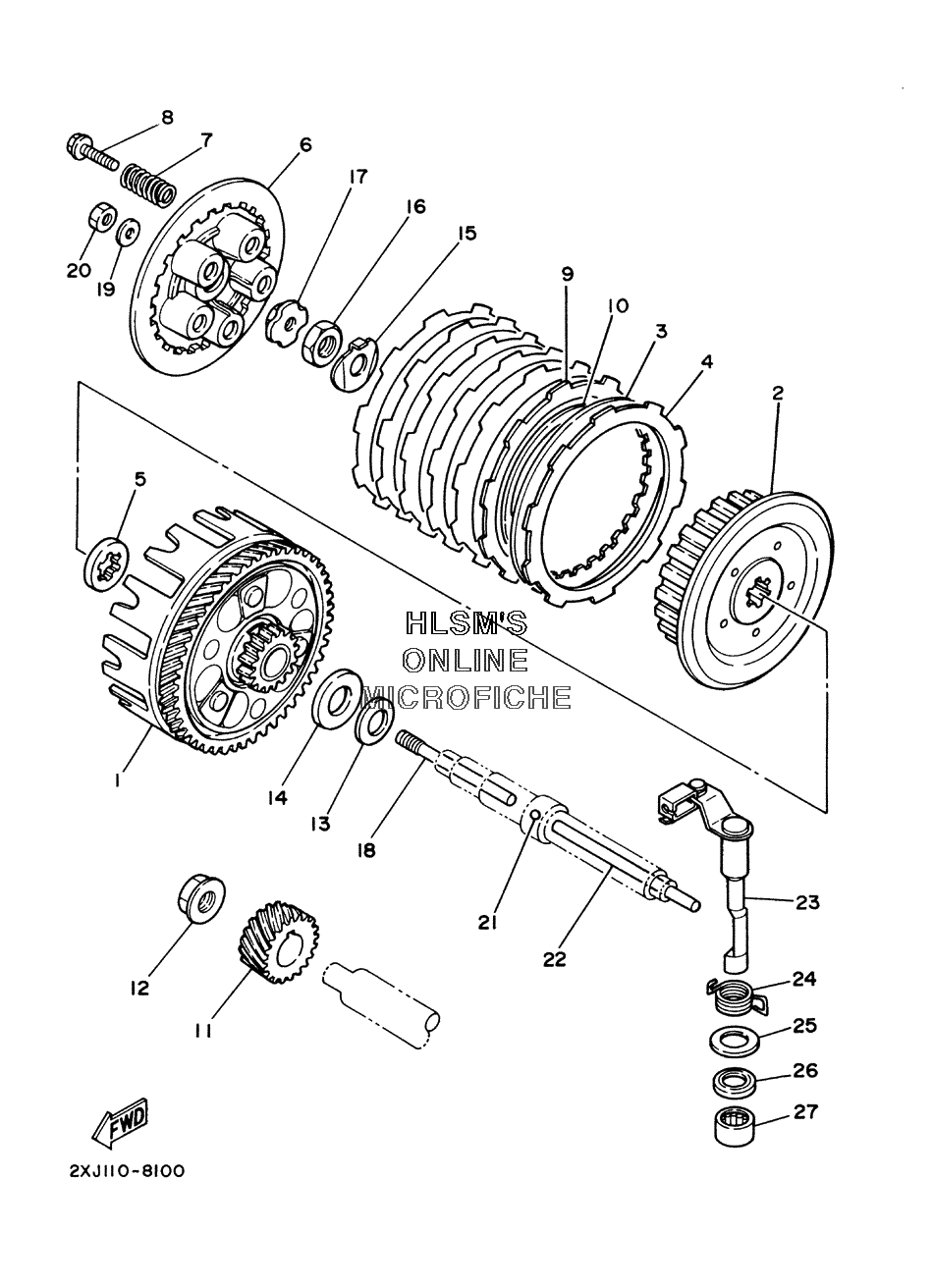

CLUTCH для Yamaha BLASTER YFS200M (5KJ1) - 2000 года выпуска
-
№АртикулНазвание
-
13JM-16150-01-00 PRIMARY DRIVEN GEAR COMP.PRIMARY DRIVEN GEAR COMP.
-
237F-16371-01-00 BOSS, CLUTCHBOSS, CLUTCH
-
31V1-16324-00-00 PLATE, CLUTCH 1PLATE, CLUTCH 1
-
44V0-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
52TV-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
637F-16351-00-00 PLATE, PRESSURE 1PLATE, PRESSURE 1
-
790501-20568-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
890119-05001-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
91HX-16331-00-00 PLATE, FRICTION 2PLATE, FRICTION 2
-
101HX-16383-00-00 SPRING, CLUTCH BOSSSPRING, CLUTCH BOSS
-
112JK-16111-01-00 GEAR, PRIMARY DRIVE (22T)GEAR, PRIMARY DRIVE (22T)
-
1290179-12567-00 NUTNUT
-
1390208-18046-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
1490201-180P2-00 WASHER, PLATEWASHER, PLATE
-
1590215-12271-00 WASHER, LOCKWASHER, LOCK
-
1690170-12370-00 NUTNUT
-
171W1-16358-01-00 PLATE, PUSHPLATE, PUSH
-
181W1-16356-02-00 ROD, PUSH 1ROD, PUSH 1
-
1992907-06200-00 WASHERWASHER
-
2095307-06600-00 NUTNUT
-
2193503-16003-00 BALLBALL
-
222J5-16357-00-00 ROD, PUSH 2ROD, PUSH 2
-
2337F-16380-02-00 PUSH LEVER ASSYPUSH LEVER ASSY
-
2490508-20555-00 SPRING, TORSIONSPRING, TORSION
-
2590201-14217-00 WASHER, PLATEWASHER, PLATE
-
2693104-14004-00 OIL SEALOIL SEAL
-
2793315-21429-00 BEARINGBEARING
