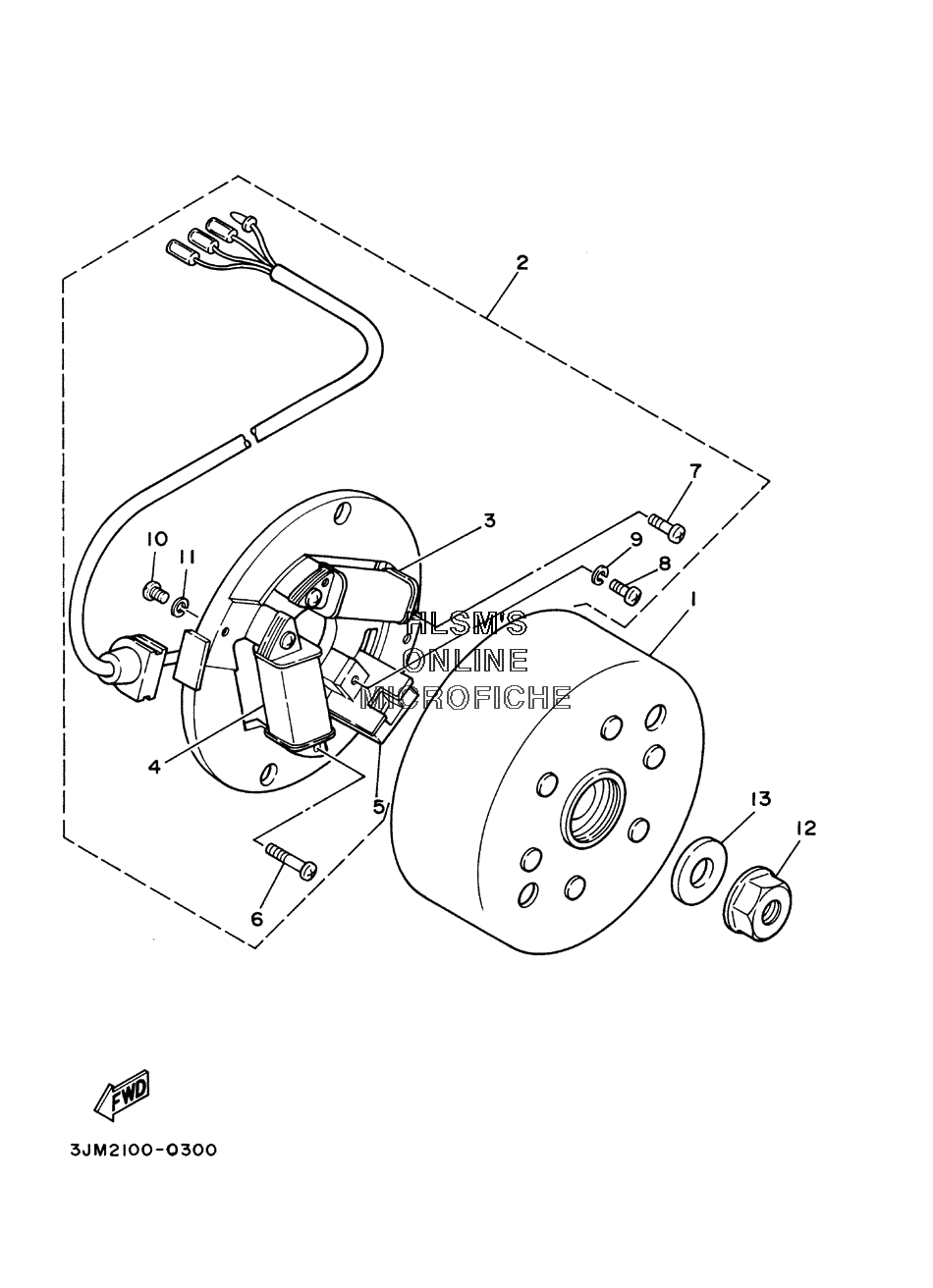

GENERATOR для Yamaha BLASTER YFS200M (5KJ1) - 2000 года выпуска
-
№АртикулНазвание
-
12XJ-85550-M0-00 ROTOR ASSYROTOR ASSY
-
23JM-85560-00-00 BASE ASSYBASE ASSY
-
314L-85520-M0-00 ...COIL, CHARGE...COIL, CHARGE
-
42XJ-81313-M0-00 ...COIL, LIGHTING 1...COIL, LIGHTING 1
-
52AL-85580-M0-00 ...COIL, PULSER...COIL, PULSER
-
698511-04020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
798511-04012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
898501-04100-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
992901-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
1098501-04008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1192901-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
1290179-12248-00 NUTNUT
-
1390201-123L6-00 WASHER, PLATEWASHER, PLATE
