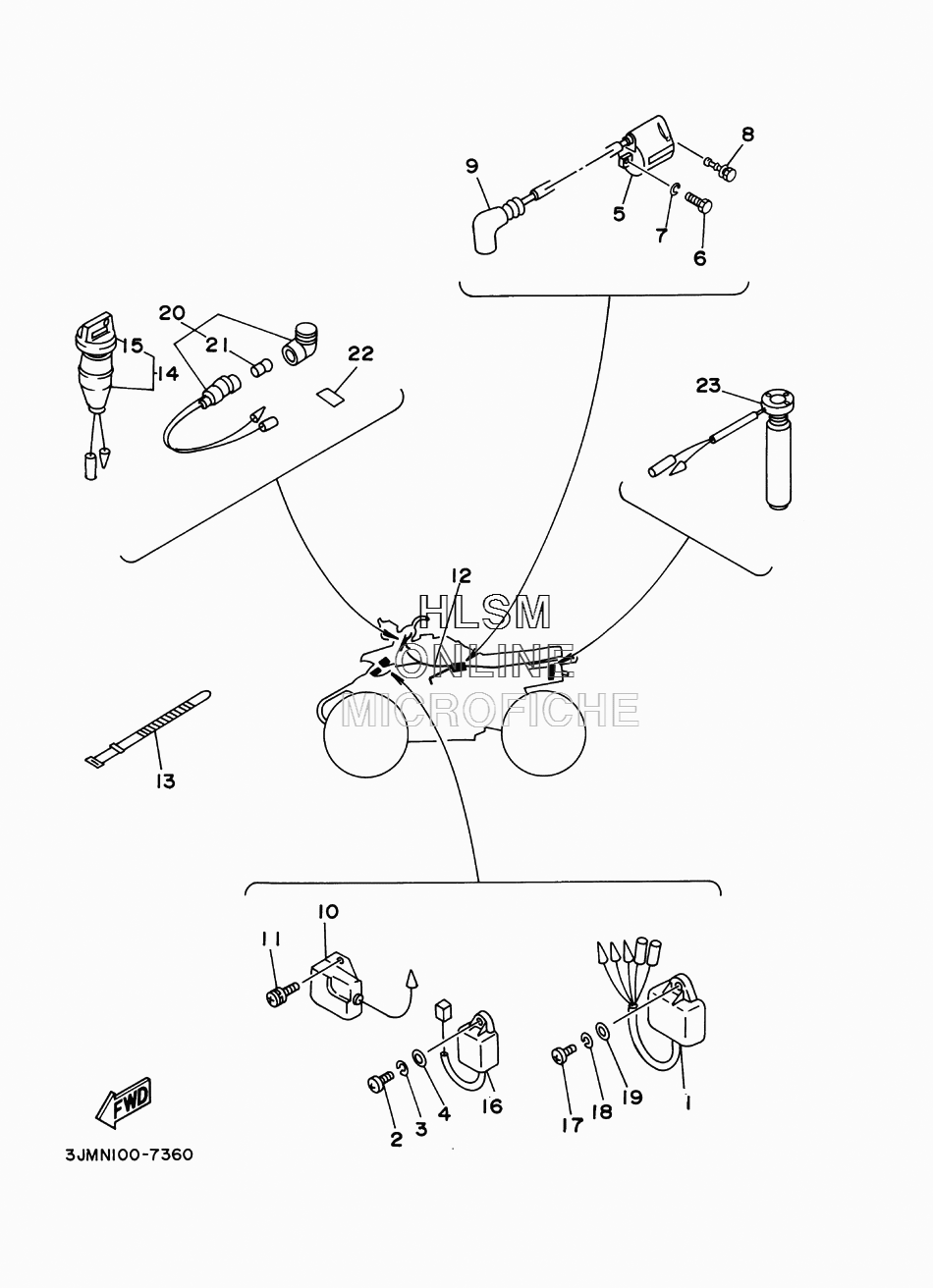

ELECTRICAL для Yamaha BLASTER YFS200M (5KJ1) - 2000 года выпуска
-
№АртикулНазвание
-
13FL-85540-10-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
298507-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
392907-06100-00 WASHER, SPRINGWASHER, SPRING
-
492907-06600-00 WASHER, PLATEWASHER, PLATE
-
53NS-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
697007-06020-00 BOLTBOLT
-
792907-06100-00 WASHER, SPRINGWASHER, SPRING
-
890109-06723-00 BOLTBOLT
-
91M1-82370-30-00 PLUG CAP ASSYPLUG CAP ASSY
-
1082F-81910-A0-00 VOLTAGE REGULATOR ASSYVOLTAGE REGULATOR ASSY
-
1190159-06056-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
123JM-82590-10-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
133TB-83936-00-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
142XJ-82510-01-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
153HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
163GG-85590-00-00 CONTROL UNIT ASSYCONTROL UNIT ASSY
-
1798507-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1892907-06100-00 WASHER, SPRINGWASHER, SPRING
-
1992907-06600-00 WASHER, PLATEWASHER, PLATE
-
202XJ-83530-01-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
212XJ-83516-00-00 ...BULB (12V-3.4W)...BULB (12V-3.4W)
-
224U3-83585-00-00 LABELLABEL
-
232XJ-85720-02-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
