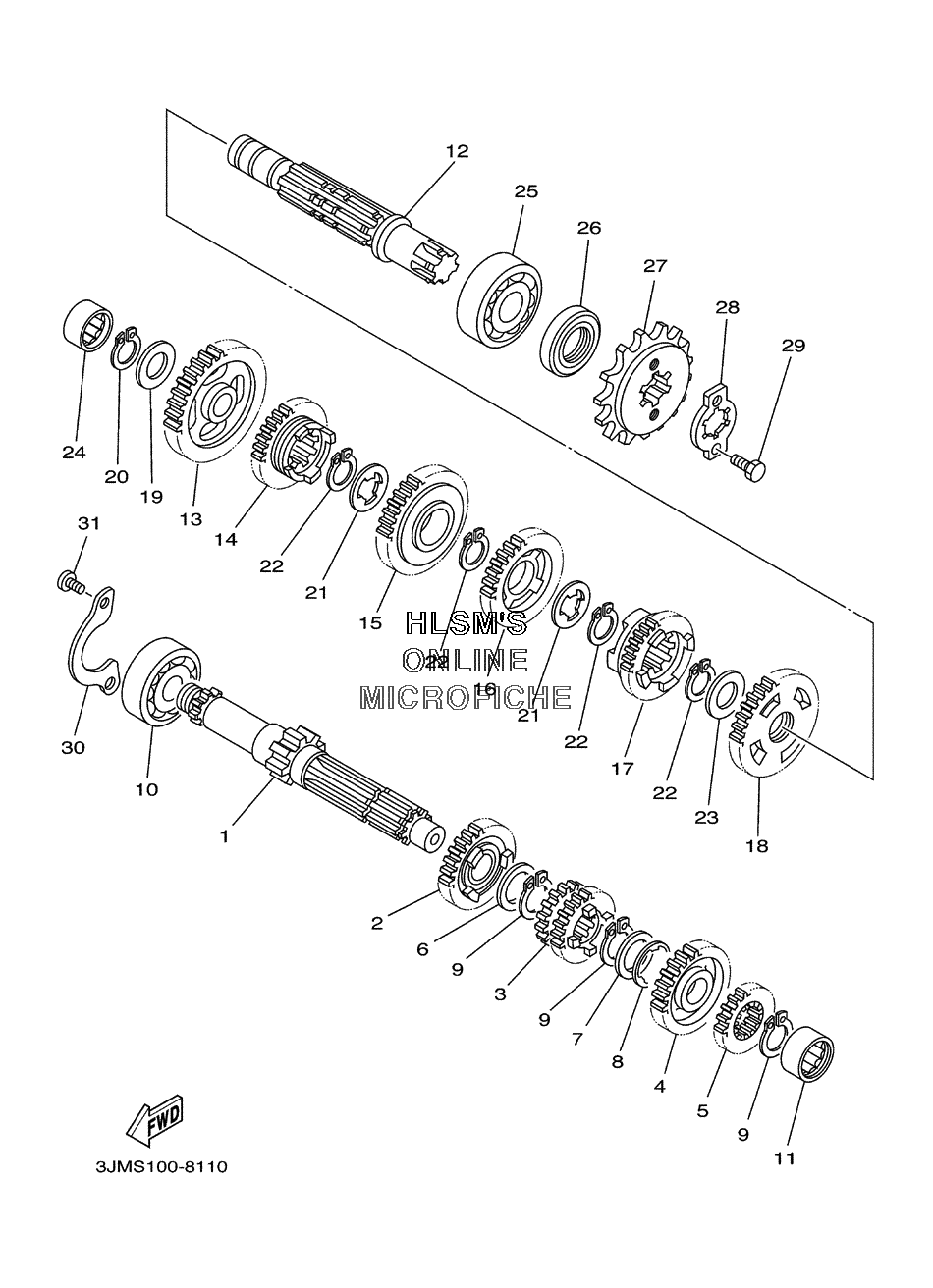

TRANSMISSION для Yamaha BLASTER YFS200M (5KJ1) - 2000 года выпуска
-
№АртикулНазвание
-
12XJ-17411-00-00 AXLE, MAINAXLE, MAIN
-
22XJ-17151-00-00 GEAR, 5TH PINION (18T)GEAR, 5TH PINION (18T)
-
32XJ-17131-00-00 GEAR, 3RD-4TH PINION (15T-16T)GEAR, 3RD-4TH PINION (15T-16T)
-
42XJ-17161-00-00 GEAR, 6TH PINION (21T)GEAR, 6TH PINION (21T)
-
52XJ-17121-00-00 GEAR, 2ND PINION (14T)GEAR, 2ND PINION (14T)
-
690201-20266-00 WASHER, PLATE (1.0T)WASHER, PLATE (1.0T)
-
790201-206L6-00 WASHER, PLATEWASHER, PLATE
-
890209-16133-00 WASHERWASHER
-
993410-20038-00 CIRCLIPCIRCLIP
-
1093306-20431-00 BEARING (B6204Z)BEARING (B6204Z)
-
1193311-31576-00 BEARINGBEARING
-
1237F-17421-01-00 AXLE, DRIVEAXLE, DRIVE
-
132XJ-17211-00-00 GEAR, 1ST WHEEL (34T)GEAR, 1ST WHEEL (34T)
-
142XJ-17251-00-00 GEAR, 5TH WHEEL (19T)GEAR, 5TH WHEEL (19T)
-
152XJ-17231-00-00 GEAR, 3RD WHEEL (25T)GEAR, 3RD WHEEL (25T)
-
162XJ-17241-00-00 GEAR, 4TH WHEEL (20T)GEAR, 4TH WHEEL (20T)
-
172XJ-17261-00-00 GEAR, 6TH WHEEL (19T)GEAR, 6TH WHEEL (19T)
-
182XJ-17221-01-00 GEAR, 2ND WHEELGEAR, 2ND WHEEL
-
1990201-150J4-00 WASHER, PLATEWASHER, PLATE
-
2093440-15012-00 CIRCLIPCIRCLIP
-
2190209-18135-00 WASHERWASHER
-
2293410-22039-00 CIRCLIPCIRCLIP
-
2390201-22555-00 WASHER, PLATEWASHER, PLATE
-
2493311-51554-00 BEARINGBEARING
-
2593306-30438-00 BEARINGBEARING
-
2693102-20143-00 OIL SEALOIL SEAL
-
2793832-13164-00 SPROCKET, DRIVE (13T)SPROCKET, DRIVE (13T)
-
285H0-17456-00-00 HOLDER, SPROCKETHOLDER, SPROCKET
-
2997027-06012-00 BOLTBOLT
-
3010V-17471-00-00 PLATE, COVERPLATE, COVER
-
3198507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
