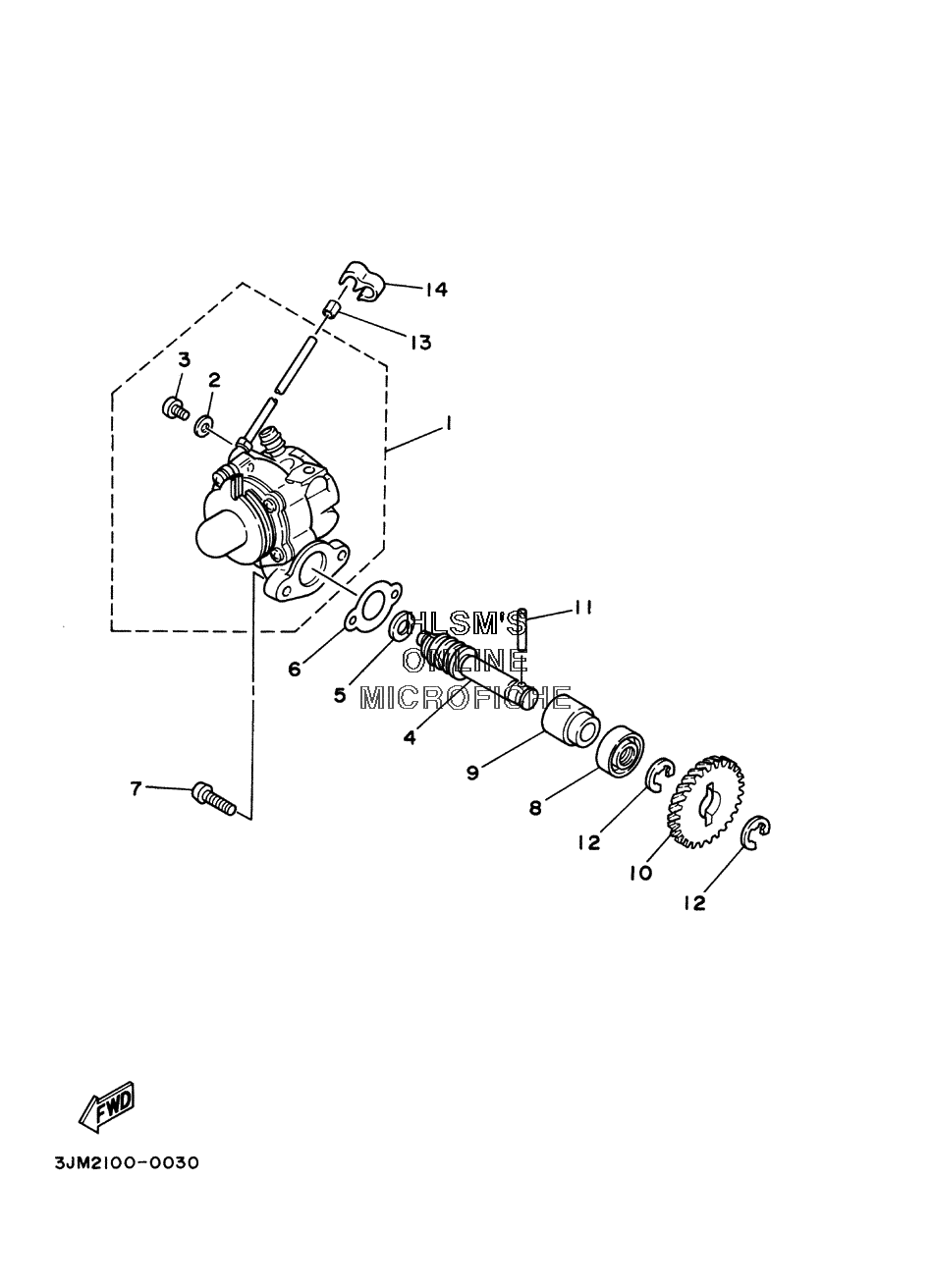

OIL PUMP для Yamaha BLASTER YFS200M (5KJ1) - 2000 года выпуска
-
№АртикулНазвание
-
12XJ-13100-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
290430-04004-00 ...GASKET...GASKET
-
398907-04008-00 ...SCREW, BIND...SCREW, BIND
-
410V-13175-00-00 SHAFT, WORMSHAFT, WORM
-
590201-08624-00 WASHER, PLATEWASHER, PLATE
-
6126-13116-01-00 GASKET, PUMP CASEGASKET, PUMP CASE
-
798507-05014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
893101-10001-00 OIL SEALOIL SEAL
-
9137-13176-00-00 METAL, WORM SHAFT OUTERMETAL, WORM SHAFT OUTER
-
1010V-13178-01-00 GEAR, PUMP DRIVEGEAR, PUMP DRIVE
-
1193603-22028-00 PIN, DOWELPIN, DOWEL
-
1293430-08007-00 CIRCLIPCIRCLIP
-
1390468-02033-00 CLIPCLIP
-
1490468-15020-00 CLIPCLIP
