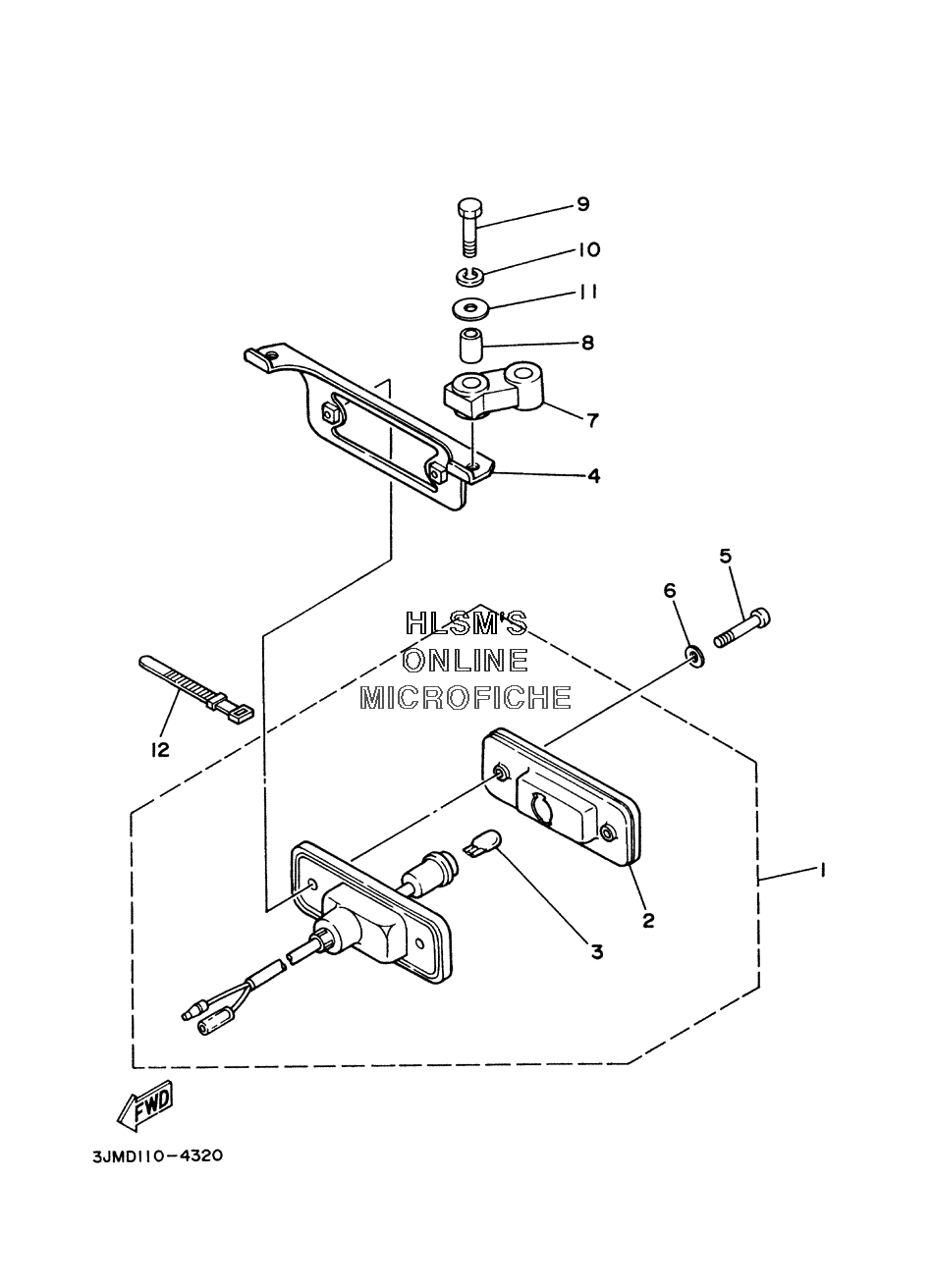

TAILLIGHT для Yamaha BLASTER YFS200M (5KJ1) - 2000 года выпуска
-
№АртикулНазвание
-
138W-84710-00-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
238W-84721-00-00 ...LENS, TAILLIGHT...LENS, TAILLIGHT
-
338W-84714-00-00 ...BULB (12V-3.8W)...BULB (12V-3.8W)
-
41UY-84702-00-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
598507-04020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
692907-04600-00 WASHERWASHER
-
738W-84736-00-00 DAMPER, TAIL 1DAMPER, TAIL 1
-
890387-06299-00 COLLARCOLLAR
-
997007-06025-00 BOLTBOLT
-
1092907-06600-00 WASHER, PLATEWASHER, PLATE
-
1190201-06380-00 WASHER, PLATEWASHER, PLATE
-
12437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
