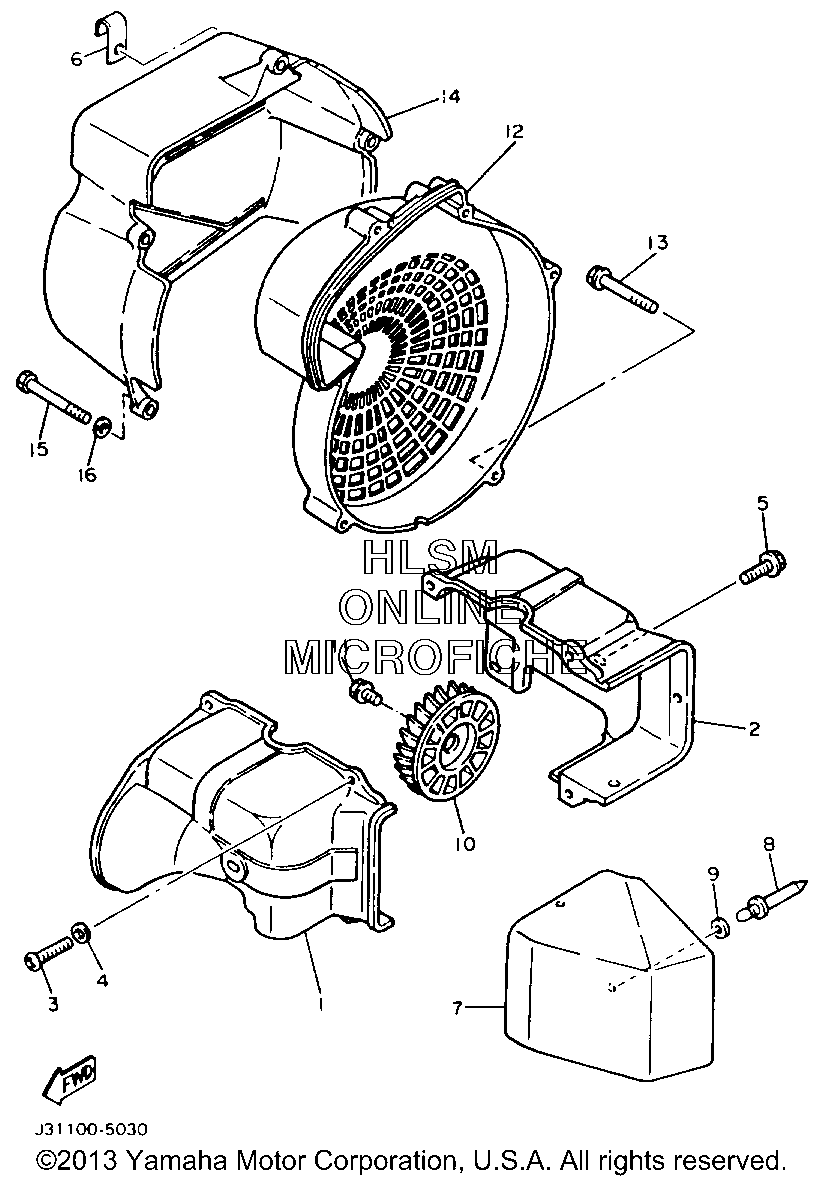

AIR SHROUD для Yamaha SUN CLASSIC GAS CAR [G3A] (J42) - 1986 года выпуска
-
№АртикулНазвание
-
1J10-12651-00-00 AIR SHROUD, CYLINDER 1AIR SHROUD, CYLINDER 1
-
2J24-12652-00-00 AIR SHROUD, CYLINDER 2AIR SHROUD, CYLINDER 2
-
398503-06014-00 SCREW, PAN HEAD (92502-06016-00)SCREW, PAN HEAD (92502-06016-00)
-
492990-06600-00 WASHER, PLATEWASHER, PLATE
-
590119-06108-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
690462-08056-00 CLAMPCLAMP
-
7J10-12631-00-00 DEFLECTOR 1DEFLECTOR 1
-
890267-48086-00 RIVET, BLIND (4.8X19 BLACK)RIVET, BLIND (4.8X19 BLACK)
-
990201-04325-00 WASHER, PLATEWASHER, PLATE
-
108G8-12611-01-00 FANFAN
-
1195811-06012-00 BOLT, FLANGEBOLT, FLANGE
-
12J10-12621-01-00 CASE, FANCASE, FAN
-
1395801-06050-00 BOLT, FLANGE (95802-06050-00)BOLT, FLANGE (95802-06050-00)
-
14J24-12616-00-00 COVER, FAN CASECOVER, FAN CASE
-
1597313-06060-00 BOLT, HEXAGONBOLT, HEXAGON
-
1692990-06600-00 WASHER, PLATEWASHER, PLATE
