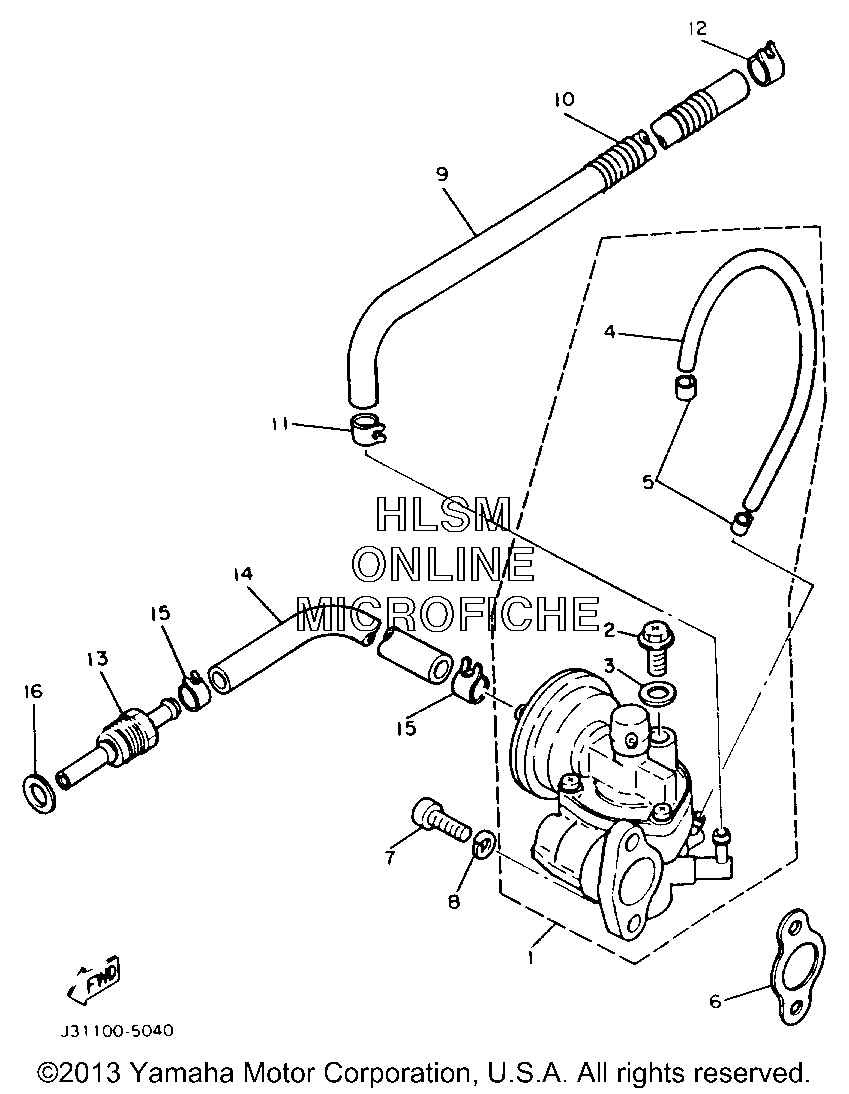

OIL PUMP для Yamaha SUN CLASSIC GAS CAR [G3A] (J42) - 1986 года выпуска
-
№АртикулНазвание
-
1J24-13101-00-00 OIL PUMP ASSEMBLYOIL PUMP ASSEMBLY
-
290401-06001-00 ...BOLT, UNION...BOLT, UNION
-
390430-06180-00 ...GASKET...GASKET
-
490445-05214-00 ...HOSE...HOSE
-
590468-02033-00 ...CLIP...CLIP
-
68Y0-13116-01-00 GASKET, PUMP CASEGASKET, PUMP CASE
-
798580-05016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
892990-05100-00 WASHER, SPRINGWASHER, SPRING
-
990445-09635-00 HOSE (L910)HOSE (L910)
-
1090501-08430-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1190467-09005-00 CLIP, SCISSORCLIP, SCISSOR
-
1290467-09026-00 CLIPCLIP
-
13J10-13283-00-00 JET, SENSORJET, SENSOR
-
1490445-11634-00 HOSEHOSE
-
1590467-10035-00 CLIPCLIP
-
1690201-08624-00 WASHER, PLATEWASHER, PLATE
