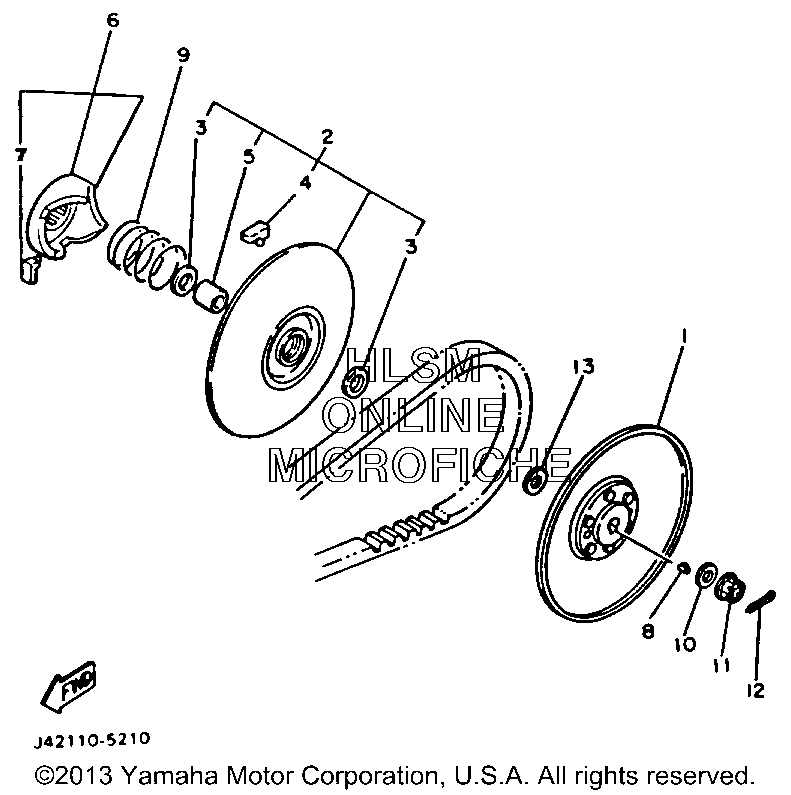

SECONDARY SHEAVE для Yamaha SUN CLASSIC GAS CAR [G3A] (J42) - 1986 года выпуска
-
№АртикулНазвание
-
1J55-G6260-00-00 SECONDARY FIXED SHEAVE COMP.SECONDARY FIXED SHEAVE COMP.
-
2J17-46270-01-00 SECONDARY SLIDING SHEAVE COMPSECONDARY SLIDING SHEAVE COMP
-
393102-20309-00 ...OIL SEAL...OIL SEAL
-
4801-17688-10-00 ...SHOE, RAMP...SHOE, RAMP
-
590384-20143-00 ...BUSH, BIMETAL FORM FORMED...BUSH, BIMETAL FORM FORMED
-
6J55-G6280-00-00 SEC SPRING SEAT CMP (J38-46280-00-00)SEC SPRING SEAT CMP (J38-46280-00-00)
-
7801-17688-10-00 SHOE, RAMPSHOE, RAMP
-
890280-05022-00 KEY, WOODRUFFKEY, WOODRUFF
-
990501-45600-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1090201-12588-00 WASHER, PLATEWASHER, PLATE
-
1190171-12023-00 NUT, CASTLENUT, CASTLE
-
1291401-30030-00 PIN, COTTERPIN, COTTER
-
1390202-20130-00 WASHER, PLATEWASHER, PLATE
