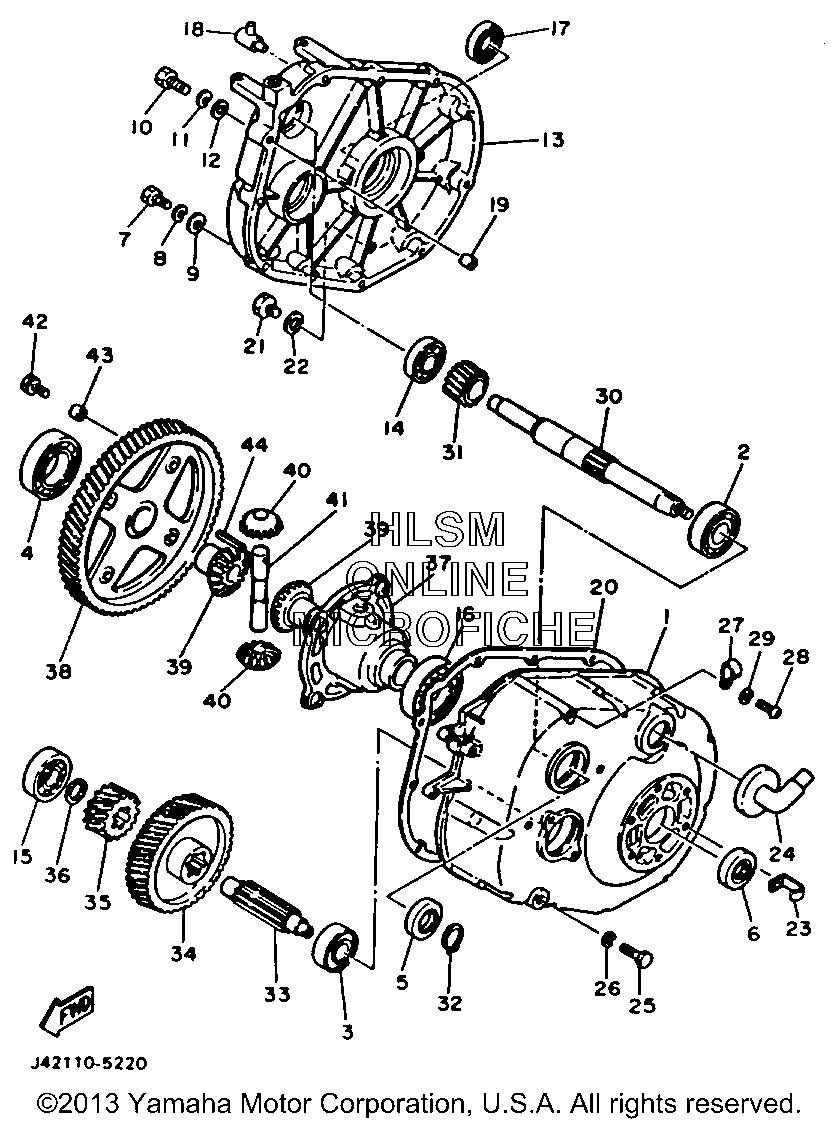

TRANSMISSION 1 для Yamaha SUN CLASSIC GAS CAR [G3A] (J42) - 1986 года выпуска
-
№АртикулНазвание
-
1J11-46311-00-00 CASE, TRANS 1CASE, TRANS 1
-
293306-20541-00 BEARING (B6205)BEARING (B6205)
-
393306-20421-00 BEARINGBEARING
-
493306-00803-00 BEARING (B6008)BEARING (B6008)
-
593102-25017-00 OIL SEALOIL SEAL
-
693102-22189-00 OIL SEALOIL SEAL
-
797313-08035-00 BOLT, HEXAGONBOLT, HEXAGON
-
892990-08100-00 WASHER, SPRINGWASHER, SPRING
-
992901-08600-00 WASHERWASHER
-
1097313-08045-00 BOLTBOLT
-
1192990-08100-00 WASHER, SPRINGWASHER, SPRING
-
1292901-08600-00 WASHERWASHER
-
13J10-46312-00-00 CASE, TRANS 2CASE, TRANS 2
-
1493306-20324-00 BEARINGBEARING
-
1593306-20421-00 BEARINGBEARING
-
1693306-00803-00 BEARING (B6008)BEARING (B6008)
-
1793102-22189-00 OIL SEALOIL SEAL
-
188E4-24461-00-00 PIPE, JOINTPIPE, JOINT
-
1999510-12016-00 PIN, DOWELPIN, DOWEL
-
20J10-46319-01-00 GASKETGASKET
-
2190340-14036-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
2290430-14043-00 GASKETGASKET
-
2390465-06100-00 CLAMPCLAMP
-
24835-47559-00-00 CAP 2CAP 2
-
2597011-10020-00 BOLTBOLT
-
2692990-10100-00 WASHER, SPRINGWASHER, SPRING
-
2790465-08028-00 CLAMPCLAMP
-
2898580-06010-00 SCREW, PAN HEAD (92503-06010-00)SCREW, PAN HEAD (92503-06010-00)
-
2992995-06100-00 WASHER, SPRINGWASHER, SPRING
-
30J10-46321-00-00 SHAFT, INPUTSHAFT, INPUT
-
31J10-46331-02-00 GEAR, IMPUT 1GEAR, IMPUT 1
-
3293410-25017-00 CIRCLIPCIRCLIP
-
33J10-46351-00-00 SHAFT, COUNTERSHAFT, COUNTER
-
34J10-46361-02-00 GEAR, COUNTER 1GEAR, COUNTER 1
-
35J17-46362-00-00 GEAR, COUNTER 2GEAR, COUNTER 2
-
3690201-20272-00 WASHER, PLATEWASHER, PLATE
-
37J38-46411-01-00 CASE, DIFFERENTIALCASE, DIFFERENTIAL
-
38J41-46421-00-00 GEAR, RINGGEAR, RING
-
39J38-46414-00-00 GEAR, DIFFERENTIAL SIDEGEAR, DIFFERENTIAL SIDE
-
40J38-46415-00-00 PINION, DIFFERENTIALPINION, DIFFERENTIAL
-
41J38-46417-02-00 PIN, DIFFERENTIALPIN, DIFFERENTIAL
-
4290105-08390-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
4391812-16001-00 PIN, DOWELPIN, DOWEL
-
4491609-40040-00 PIN, SPRINGPIN, SPRING
