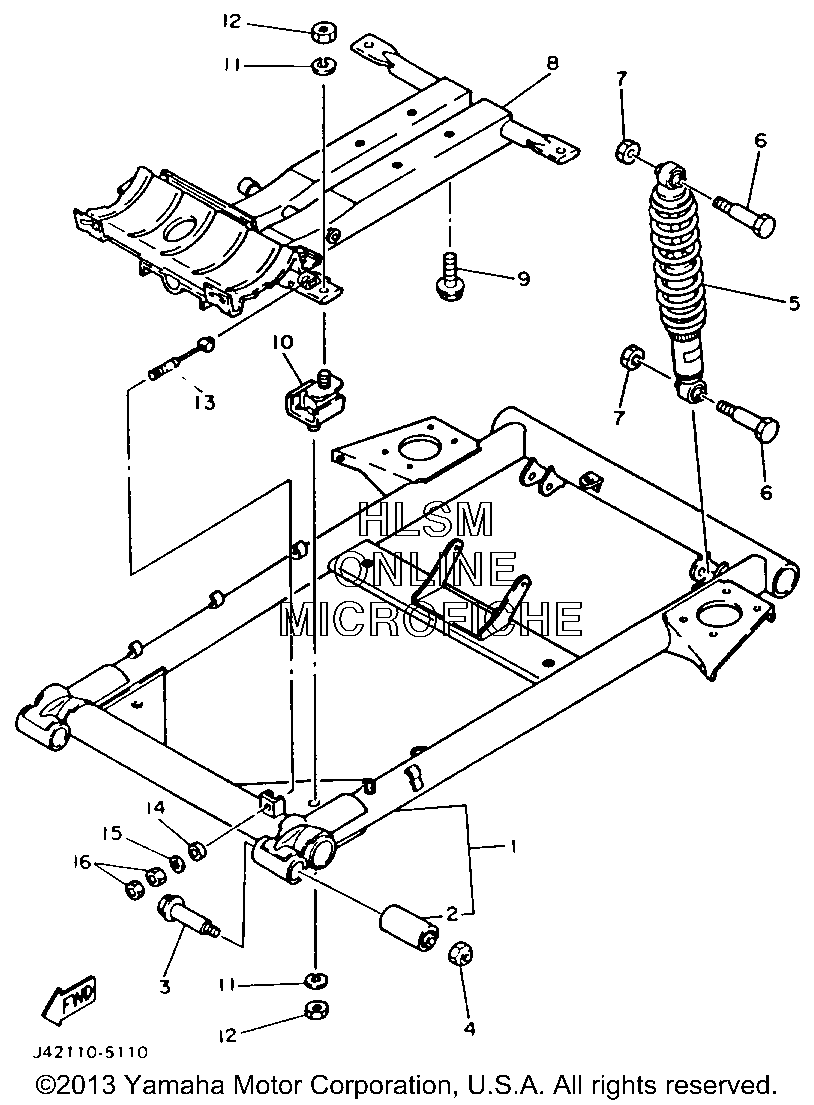

SUSPENSION - REAR SHOCK ABSORBER для Yamaha SUN CLASSIC GAS CAR [G3A] (J42) - 1986 года выпуска
-
№АртикулНазвание
-
1J42-Y2210-00-00 REAR ARM COMP.REAR ARM COMP.
-
2J10-22123-00-00 ...BUSH 1...BUSH 1
-
390105-10359-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
490185-10130-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5J46-22210-00-00 SHOCK ABSORBER ASSY, REAR (J42-22210-00-00)SHOCK ABSORBER ASSY, REAR (J42-22210-00-00)
-
697313-10050-00 BOLT, HEXAGON (676)BOLT, HEXAGON (676)
-
795601-10100-00 NUT, U (95602-10100-00)NUT, U (95602-10100-00)
-
8J17-21411-00-00 BRACKET, ENGINE 1BRACKET, ENGINE 1
-
995822-10025-00 BOLT, FLANGEBOLT, FLANGE
-
10J10-21486-00-00 DAMPER 2DAMPER 2
-
1192990-10100-00 WASHER, SPRINGWASHER, SPRING
-
1295303-10700-00 NUTNUT
-
13J31-2217J-01-00 TENSIONER 1TENSIONER 1
-
14J17-2214F-00-00 DAMPER 1DAMPER 1
-
1590201-06778-00 WASHER, PLATEWASHER, PLATE
-
1695380-06600-00 NUT, HEXAGONNUT, HEXAGON
