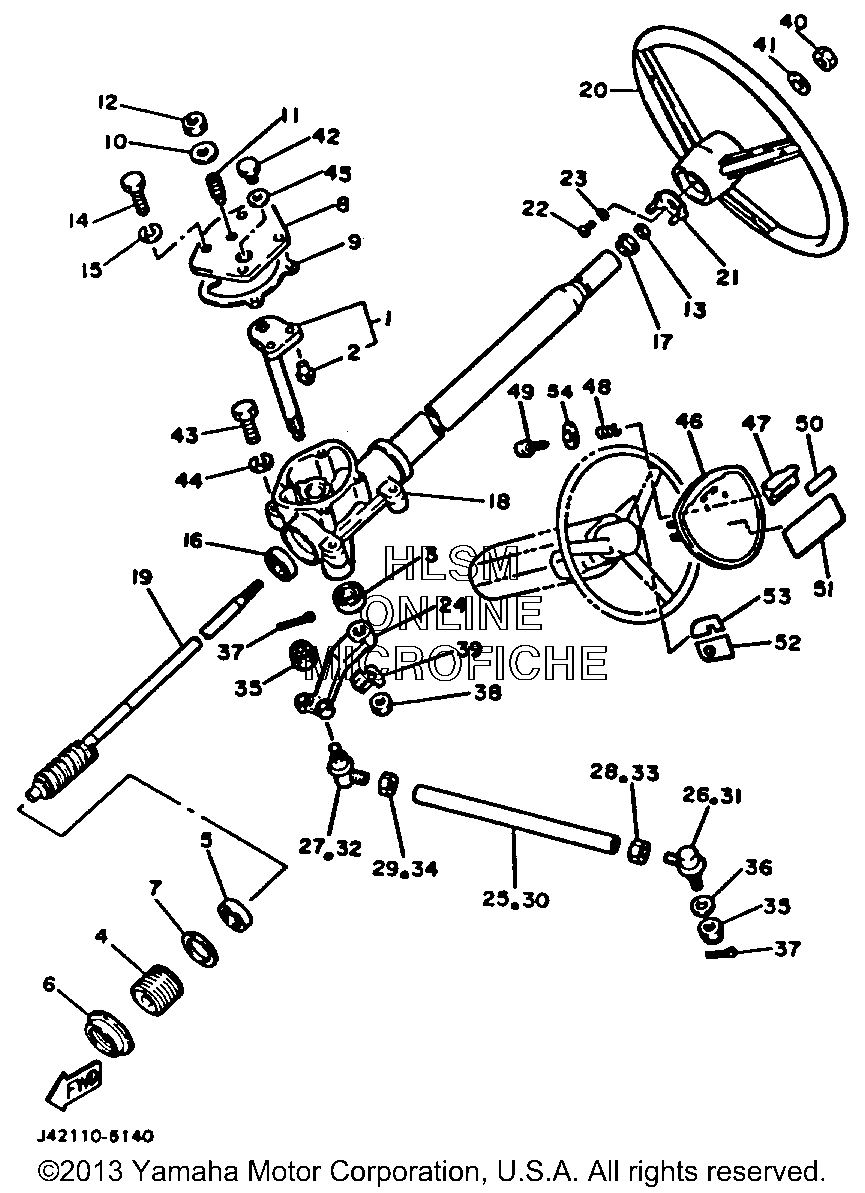

STEERING для Yamaha SUN CLASSIC GAS CAR [G3A] (J42) - 1986 года выпуска
-
№АртикулНазвание
-
1J24-23816-01-00 ARM, PITMAN (J24-23816-00-00)ARM, PITMAN (J24-23816-00-00)
-
2J10-23836-09-00 ...PIN, PITMAN...PIN, PITMAN
-
393102-22087-00 OIL SEALOIL SEAL
-
4J55-F3876-00-00 BOLTBOLT
-
593332-00010-00 BEARINGBEARING
-
6J10-23877-00-00 NUTNUT
-
7J10-23444-00-00 WASHERWASHER
-
8J10-23818-00-00 COVER, STEERINGCOVER, STEERING
-
9J10-23462-00-00 SEAL, STEERINGSEAL, STEERING
-
1090201-08087-00 WASHER, PLATEWASHER, PLATE
-
11J10-23459-00-00 BOLTBOLT
-
1290170-08024-00 NUT, HEXNUT, HEX
-
1393104-15005-00 OIL SEAL, SO-TYPEOIL SEAL, SO-TYPE
-
1497313-08020-00 BOLT, HEXAGONBOLT, HEXAGON
-
1592990-08100-00 WASHER, SPRINGWASHER, SPRING
-
1693332-00010-00 BEARINGBEARING
-
17J42-23814-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
18J42-23811-00-00 COLUMN, STEERINGCOLUMN, STEERING
-
19J10-23840-00-00 STEERING SHAFT ASSEMBLYSTEERING SHAFT ASSEMBLY
-
20J50-F3838-00-00 WHEEL, STEERINGWHEEL, STEERING
-
21J42-23839-00-00 PIN, CANCELPIN, CANCEL
-
2298580-04008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2392901-04600-00 WASHER, PLATEWASHER, PLATE
-
24J24-23826-00-00 ARM, IDLERARM, IDLER
-
25J10-23831-00-00 ROD, TIEROD, TIE
-
26J10-23841-10-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
27J10-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
2890170-12054-00 NUTNUT
-
2990170-12055-00 NUTNUT
-
30J10-23831-00-00 ROD, TIEROD, TIE
-
31J10-23841-10-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
32J10-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
3390170-12054-00 NUTNUT
-
3490170-12055-00 NUTNUT
-
3595301-12900-00 NUT, SLOTTEDNUT, SLOTTED
-
3692990-12600-00 WASHER, PLATEWASHER, PLATE
-
3791401-30030-00 PIN, COTTERPIN, COTTER
-
3895701-16300-00 NUT, FLANGENUT, FLANGE
-
3990215-16161-00 WASHER, LOCKWASHER, LOCK
-
4090185-12119-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4192990-12200-00 WASHER, PLAINWASHER, PLAIN
-
4290340-14029-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
4397313-10050-00 BOLT, HEXAGON (676)BOLT, HEXAGON (676)
-
4492990-10100-00 WASHER, SPRINGWASHER, SPRING
-
4590430-14175-00 GASKETGASKET
-
46J50-K8357-00-00 HOLDER 1HOLDER 1
-
47J50-K8358-00-00 HOLDER 2HOLDER 2
-
4890502-10013-00 SPRING, CONICALSPRING, CONICAL
-
4997780-50125-00 SCREW, TAPPINGSCREW, TAPPING
-
50J10-78292-00-00 EMBLEM 2EMBLEM 2
-
51J42-77762-00-00 LABEL, WARNING 2LABEL, WARNING 2
-
52J42-77741-00-00 INDICATOR 1INDICATOR 1
-
53J42-77742-00-00 INDICATOR 2INDICATOR 2
-
5492901-05600-00 WASHER, PLATEWASHER, PLATE
