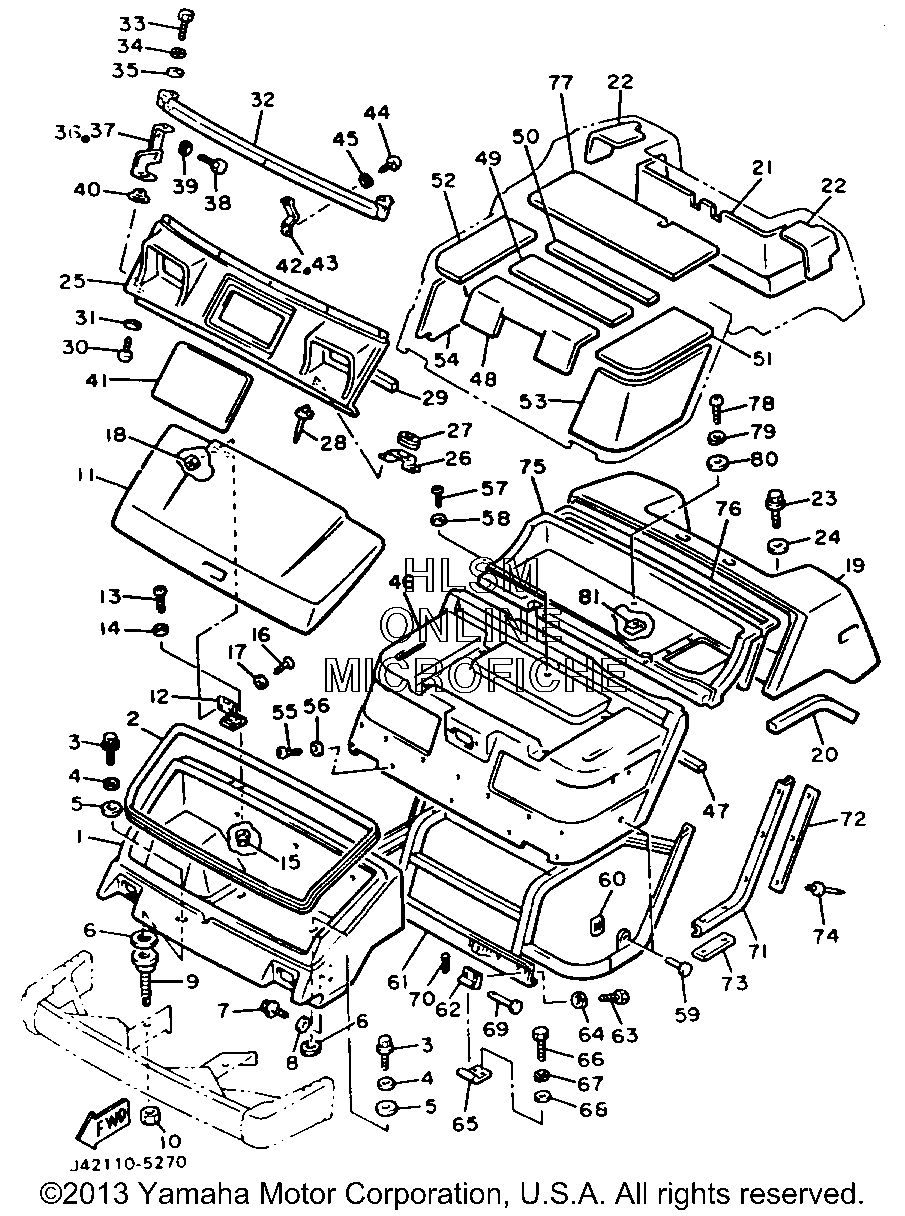

BODY 1 для Yamaha SUN CLASSIC GAS CAR [G3A] (J42) - 1986 года выпуска
-
№АртикулНазвание
-
1J42-7810A-00-00 FRONT COMPFRONT COMP
-
2J42-7815G-00-00 SEAL, FRONT STORAGESEAL, FRONT STORAGE
-
395811-08030-00 BOLT, FLANGEBOLT, FLANGE
-
490201-084K7-00 WASHER, PLATEWASHER, PLATE
-
590202-09167-00 WASHER, PLATEWASHER, PLATE
-
690202-09169-00 WASHER, PLATEWASHER, PLATE
-
790119-06063-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
890201-06074-00 WASHER, PLATEWASHER, PLATE
-
9J42-77519-00-00 BOLTBOLT
-
1095301-14700-00 NUTNUT
-
11J42-7810E-01-00 FRONT STORAGE LID COMP (J42-7810E-00-00)FRONT STORAGE LID COMP (J42-7810E-00-00)
-
12J42-78153-00-00 HINGE, FRONT LIDHINGE, FRONT LID
-
1398511-04025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1492990-04200-00 WASHER, PLAINWASHER, PLAIN
-
1595701-04300-00 NUT, FLANGENUT, FLANGE
-
1698701-05016-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
1792990-05200-00 WASHER, PLAINWASHER, PLAIN
-
1895701-05300-00 NUT, NYLONNUT, NYLON
-
19J42-7810H-01-00 REAR BODY COMP (J42-7810H-00-00)REAR BODY COMP (J42-7810H-00-00)
-
20J42-7814E-00-00 SEAL, BODY SIDE 1SEAL, BODY SIDE 1
-
21J42-7825A-01-00 PAD, SILENCER 10PAD, SILENCER 10
-
22J42-7825E-01-00 PAD, SILENCER 11PAD, SILENCER 11
-
2395821-08020-00 BOLT, FLANGE (95811-08020-00)BOLT, FLANGE (95811-08020-00)
-
2490201-084K7-00 WASHER, PLATEWASHER, PLATE
-
25J42-7811J-00-00 BASE, HEADLIGHTBASE, HEADLIGHT
-
26J42-77723-01-00 BRACKET 3BRACKET 3
-
2790480-22084-00 GROMMETGROMMET
-
2890267-40075-00 RIVET, BLINDRIVET, BLIND
-
29J42-78247-01-00 SEAL 3SEAL 3
-
3097706-50125-00 SCREW, TAPPINGSCREW, TAPPING
-
3190201-05033-00 WASHER, PLATEWASHER, PLATE
-
32J42-78122-01-00 REINFORCEMENT 2REINFORCEMENT 2
-
3397313-06016-00 BOLT, HEXAGONBOLT, HEXAGON
-
3492995-06100-00 WASHER, SPRINGWASHER, SPRING
-
3590201-06074-00 WASHER, PLATEWASHER, PLATE
-
36J42-77721-01-00 BRACKET 1BRACKET 1
-
37J42-77722-01-00 BRACKET 2BRACKET 2
-
3897313-08020-00 BOLT, HEXAGONBOLT, HEXAGON
-
3992990-08100-00 WASHER, SPRINGWASHER, SPRING
-
4090480-07241-00 GROMMETGROMMET
-
41J42-7813H-00-00 COVER, VENTILATORCOVER, VENTILATOR
-
42J42-7813M-00-00 HINGE, VENTILATOR (L.H)HINGE, VENTILATOR (L.H)
-
43J42-7813N-00-00 HINGE, VENTILATOR 2HINGE, VENTILATOR 2
-
4497780-50612-00 SCREW, TAPPINGSCREW, TAPPING
-
4592990-05100-00 WASHER, SPRINGWASHER, SPRING
-
46J42-78141-00-00 PANEL, INTERMEDIATE BODYPANEL, INTERMEDIATE BODY
-
47J42-7814A-01-00 SEAL, BODY UPPERSEAL, BODY UPPER
-
48J42-78251-00-00 PAD, SILENCER 1PAD, SILENCER 1
-
49J42-78252-00-00 PAD, SILENCER 2PAD, SILENCER 2
-
50J42-78253-00-00 PAD, SILENCER3PAD, SILENCER3
-
51J42-78254-00-00 PAD, SILENCER 4PAD, SILENCER 4
-
52J42-78255-00-00 PAD, SILENCER 5PAD, SILENCER 5
-
53J42-78256-00-00 PAD, SILENCER 6PAD, SILENCER 6
-
54J42-78257-00-00 PAD, SILENCER 7PAD, SILENCER 7
-
5598980-06025-00 SCREW, BINDSCREW, BIND
-
5690201-06697-00 WASHER, PLATEWASHER, PLATE
-
5797780-50612-00 SCREW, TAPPINGSCREW, TAPPING
-
5890201-05556-00 WASHER, PLATEWASHER, PLATE
-
5990338-06184-00 PLUGPLUG
-
6090183-06011-00 NUT, SPRINGNUT, SPRING
-
61J42-78121-00-00 REINFORCEMENT 1REINFORCEMENT 1
-
61J42-78121-01-00 REINFORCEMENT 1 0 1 (122~)REINFORCEMENT 1 0 1 (122~)
-
62J55-K8143-00-00 HINGE, INTERMEDIATE BODY 1HINGE, INTERMEDIATE BODY 1
-
6397003-06012-00 BOLT (97001-06012-00)BOLT (97001-06012-00)
-
6492990-06100-00 WASHER, SPRINGWASHER, SPRING
-
65J55-K8144-00-00 HINGE, INTERMEDIATE BODY 2HINGE, INTERMEDIATE BODY 2
-
6697011-06025-00 BOLT (97001-06025-00)BOLT (97001-06025-00)
-
6792995-06100-00 WASHER, SPRINGWASHER, SPRING
-
6892990-06600-00 WASHER, PLATEWASHER, PLATE
-
6991790-06125-00 PIN, CLEVISPIN, CLEVIS
-
7091490-20015-00 PIN. COTTERPIN. COTTER
-
71J42-7814V-01-00 SEAL, BODY SIDE 6SEAL, BODY SIDE 6
-
72J42-7815A-00-00 PLATE, SEAL SUPPORT 1PLATE, SEAL SUPPORT 1
-
73J42-7815E-00-00 PLATE, SEAL SUPPORT 2PLATE, SEAL SUPPORT 2
-
7490267-32108-00 RIVET, BLINDRIVET, BLIND
-
75J42-7810L-01-00 INSPECTION, LIDINSPECTION, LID
-
76J42-78159-00-00 SEAL, INSPECTION LIDSEAL, INSPECTION LID
-
77J42-78259-00-00 PAD, SILENCER 9PAD, SILENCER 9
-
7898580-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
7992995-06100-00 WASHER, SPRINGWASHER, SPRING
-
8090201-06697-00 WASHER, PLATEWASHER, PLATE
-
8190183-06028-00 NUT, SPRINGNUT, SPRING
