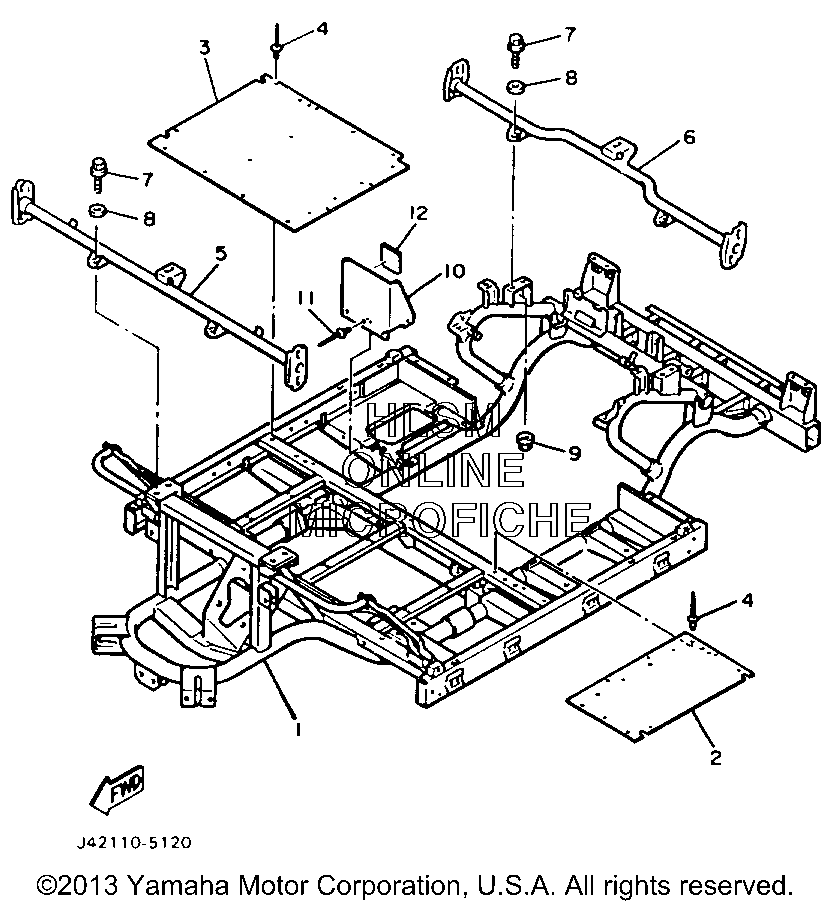

FRAME для Yamaha SUN CLASSIC GAS CAR [G3A] (J42) - 1986 года выпуска
-
№АртикулНазвание
-
1J42-22501-00-00 FRAME COMPFRAME COMP
-
2J42-22571-00-00 PANEL 1PANEL 1
-
3J42-22572-00-00 PANEL 2PANEL 2
-
490267-40054-00 RIVET, BLINDRIVET, BLIND
-
5J42-2254J-01-00 SUPPORT, SIDE PANELSUPPORT, SIDE PANEL
-
6J42-2254K-00-00 SUPPORT, SIDE PANEL 2SUPPORT, SIDE PANEL 2
-
795821-08020-00 BOLT, FLANGE (95811-08020-00)BOLT, FLANGE (95811-08020-00)
-
890201-084K3-00 WASHER, PLATEWASHER, PLATE
-
995701-08500-00 NUT, FLANGE (95702-08500-00)NUT, FLANGE (95702-08500-00)
-
10J24-2255V-00-00 PLATE, BATTERY COVERPLATE, BATTERY COVER
-
1190267-32063-00 RIVET, BLINDRIVET, BLIND
-
12J24-2255Y-00-00 PAD, BATTERY COVERPAD, BATTERY COVER
