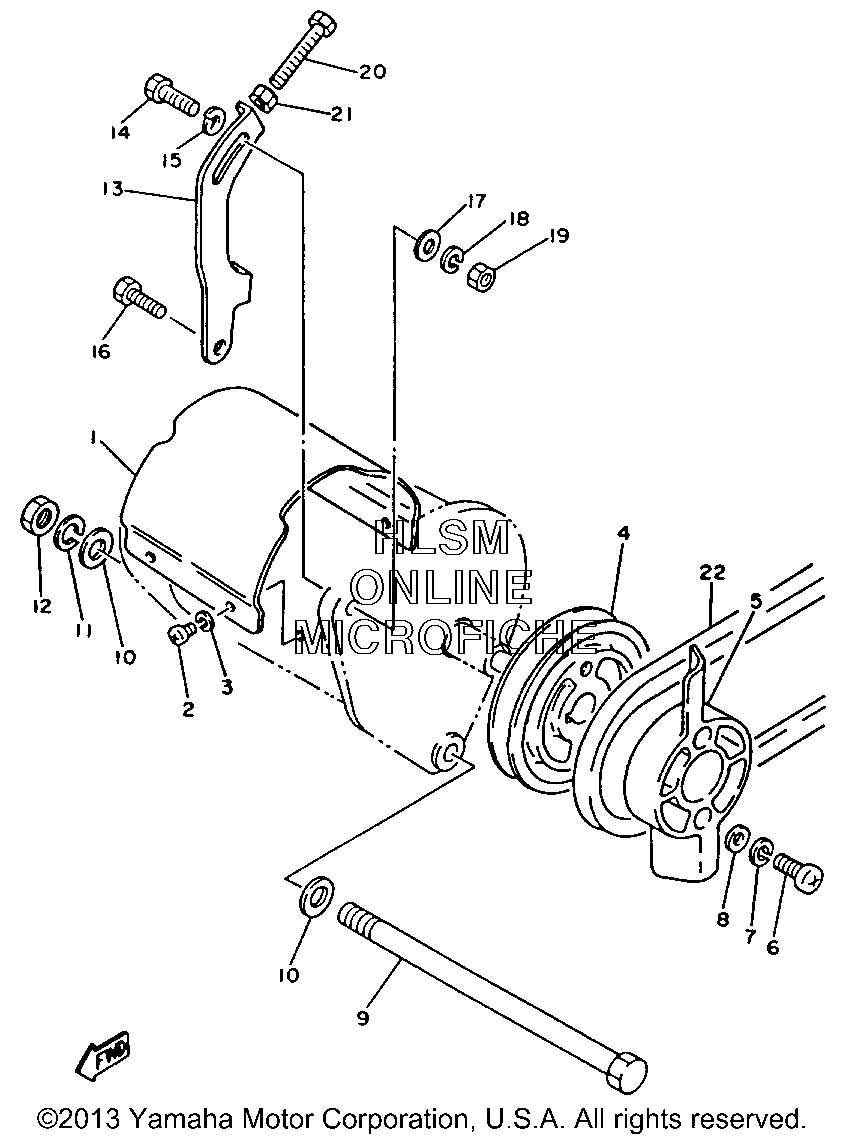

STARTER PULLEY для Yamaha SUN CLASSIC GAS CAR [G3A] (J42) - 1986 года выпуска
-
№АртикулНазвание
-
1J17-87183-00-00 INSULATOR, GENINSULATOR, GEN
-
298501-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
392990-05100-00 WASHER, SPRINGWASHER, SPRING
-
4J10-81161-01-00 PULLEYPULLEY
-
5J10-87172-00-00 FAN, GENERATORFAN, GENERATOR
-
692501-06025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
792995-06100-00 WASHER, SPRINGWASHER, SPRING
-
892990-06600-00 WASHER, PLATEWASHER, PLATE
-
990101-12545-00 BOLTBOLT
-
1092990-12600-00 WASHER, PLATEWASHER, PLATE
-
1192901-12100-00 WASHER, SPRINGWASHER, SPRING
-
1295303-12600-00 NUTNUT
-
13J17-81170-00-00 TENSIONER ASSEMBLY (92902-08100-00)TENSIONER ASSEMBLY (92902-08100-00)
-
1497313-08020-00 BOLT, HEXAGONBOLT, HEXAGON
-
1592990-08100-00 WASHER, SPRINGWASHER, SPRING
-
1690109-08653-00 BOLT, HEXAGONBOLT, HEXAGON
-
1792990-08600-00 WASHER, PLATEWASHER, PLATE
-
1892990-08100-00 WASHER, SPRINGWASHER, SPRING
-
1995303-08600-00 NUTNUT
-
2090101-06410-00 BOLTBOLT
-
2195380-06700-00 NUTNUT
-
22J10-81173-00-00 BELTBELT
