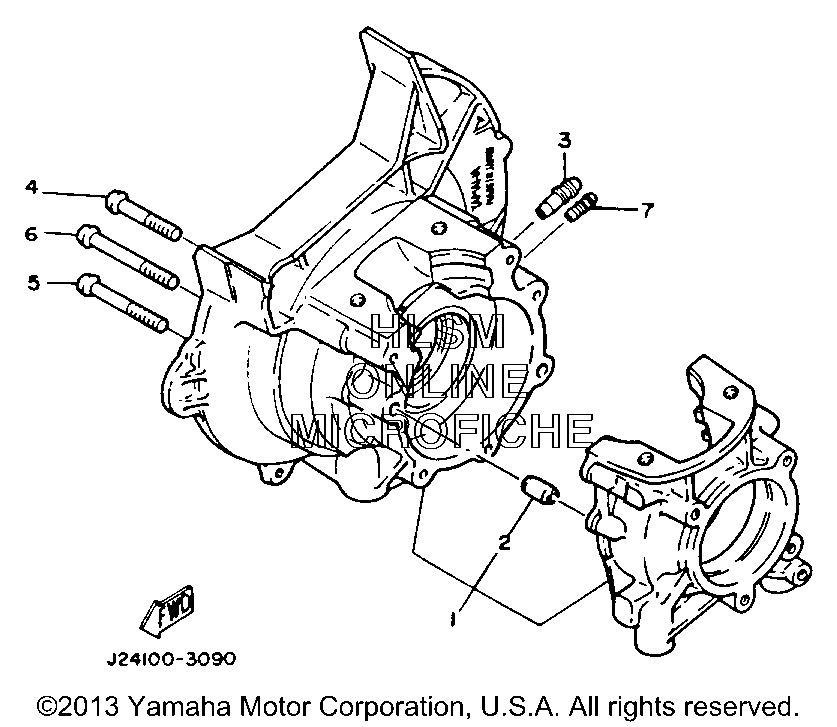

CRANKCASE для Yamaha SUN CLASSIC GAS CAR [G3A] (J42) - 1986 года выпуска
-
№АртикулНазвание
-
1J24-15100-00-00 CRANKCASE ASSEMBLYCRANKCASE ASSEMBLY
-
299530-10014-00 ...PIN, DOWEL...PIN, DOWEL
-
3J38-11116-00-00 JOINT, BREATHERJOINT, BREATHER
-
492503-06045-00 SCREW, PAN HEADSCREW, PAN HEAD
-
590157-06072-00 SCREW, PAN HEADSCREW, PAN HEAD
-
698580-06055-00 SCREW, PAN HEAD (92501-06065-00)SCREW, PAN HEAD (92501-06065-00)
-
718A-15138-00-00 NOZZLE 1NOZZLE 1
