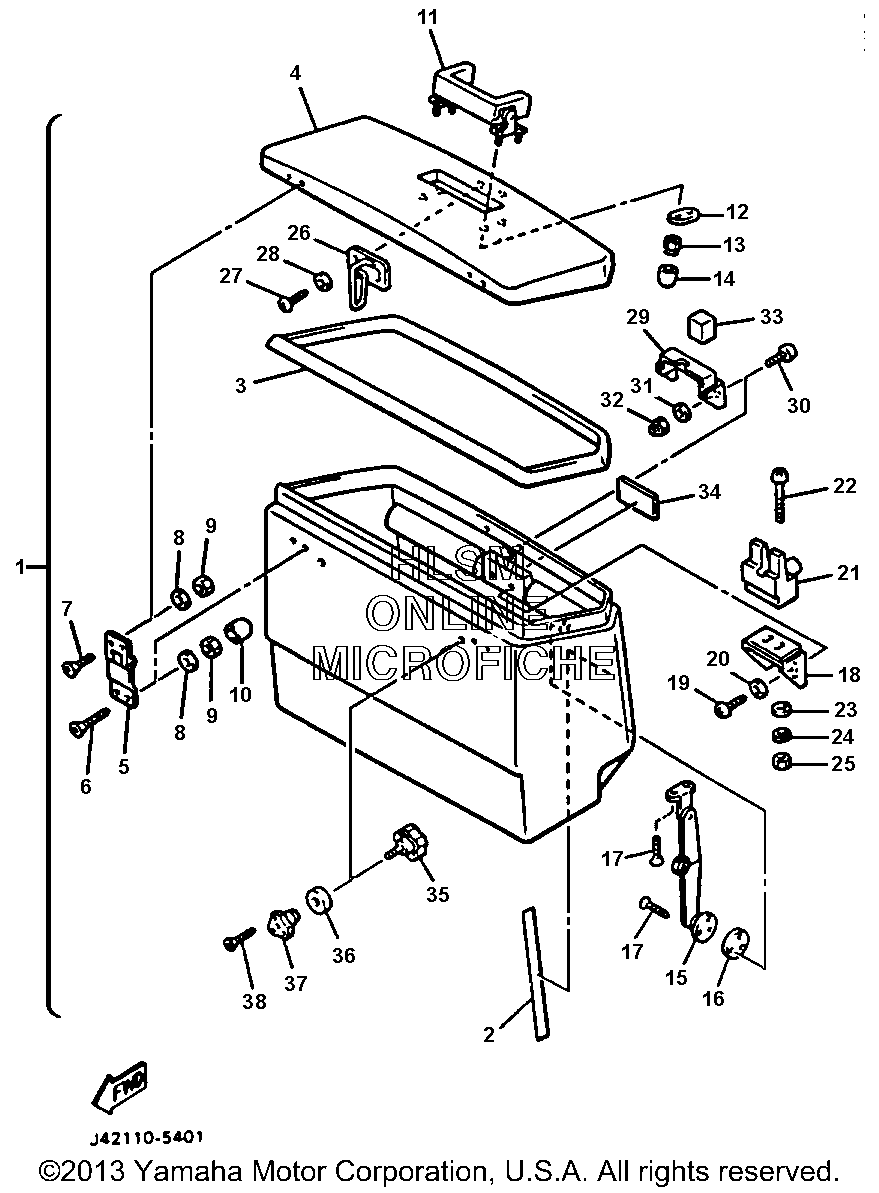

ALTERNATE для Yamaha SUN CLASSIC GAS CAR [G3A] (J42) - 1986 года выпуска
-
№АртикулНазвание
-
1J42-7810R-00-00 REAR STORAGE BOXREAR STORAGE BOX
-
2J42-7824G-00-00 ...TAPE 2...TAPE 2
-
3J42-7815K-00-00 ...SEAL, REAR STORAGE...SEAL, REAR STORAGE
-
4J42-7810N-00-00 ...REAR STORAGE LID COMP...REAR STORAGE LID COMP
-
5J42-7815J-00-00 ...HINGE, REAR STORAGE...HINGE, REAR STORAGE
-
698701-05025-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
798701-05016-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
892990-05200-00 ...WASHER, PLAIN...WASHER, PLAIN
-
995701-05300-00 ...NUT, NYLON...NUT, NYLON
-
1090190-05008-00 ...CLING...CLING
-
11J42-28408-00-00 GRIP, SADDLEBAGGRIP, SADDLEBAG
-
1226H-28458-00-00 PATCHPATCH
-
1395701-05300-00 ...NUT, NYLON...NUT, NYLON
-
1490190-05008-00 ...CLING...CLING
-
15J42-7831T-00-00 ...SUPPORT, REAR LID...SUPPORT, REAR LID
-
16J42-78328-00-00 ...SPACER 1...SPACER 1
-
1797780-30312-00 ...SCREW, TAPPING...SCREW, TAPPING
-
18J42-78323-00-00 ...BRACKET 1...BRACKET 1
-
1997780-60520-00 ...SCREW, TAPPING...SCREW, TAPPING
-
2092990-06600-00 ...WASHER, PLATE...WASHER, PLATE
-
2123T-24780-00-00 SEAT LOCK ASSEMBLYSEAT LOCK ASSEMBLY
-
2298580-06040-00 ...SCREW, PAN HEAD (90501-06040-00)...SCREW, PAN HEAD (90501-06040-00)
-
2392990-06600-00 ...WASHER, PLATE...WASHER, PLATE
-
2492995-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
2595380-06600-00 ...NUT, HEXAGON...NUT, HEXAGON
-
26J42-7831R-00-00 ...HOOK, END 3...HOOK, END 3
-
2797780-60116-00 ...SCREW, TAPPING...SCREW, TAPPING
-
2892990-06600-00 ...WASHER, PLATE...WASHER, PLATE
-
29J42-78325-00-00 ...BRACKET 3...BRACKET 3
-
3098901-04010-00 ...SCREW, BIND...SCREW, BIND
-
3192901-04600-00 ...WASHER, PLATE...WASHER, PLATE
-
3295701-04300-00 ...NUT, FLANGE...NUT, FLANGE
-
33J42-78316-00-00 ...DAMPER...DAMPER
-
3425G-21578-00-00 ...EMBLEM...EMBLEM
-
35J42-78383-00-00 ...KNOB...KNOB
-
36J42-78329-00-00 ...SPACER 2...SPACER 2
-
37A00-65628-40-00 INSERT NUTINSERT NUT
