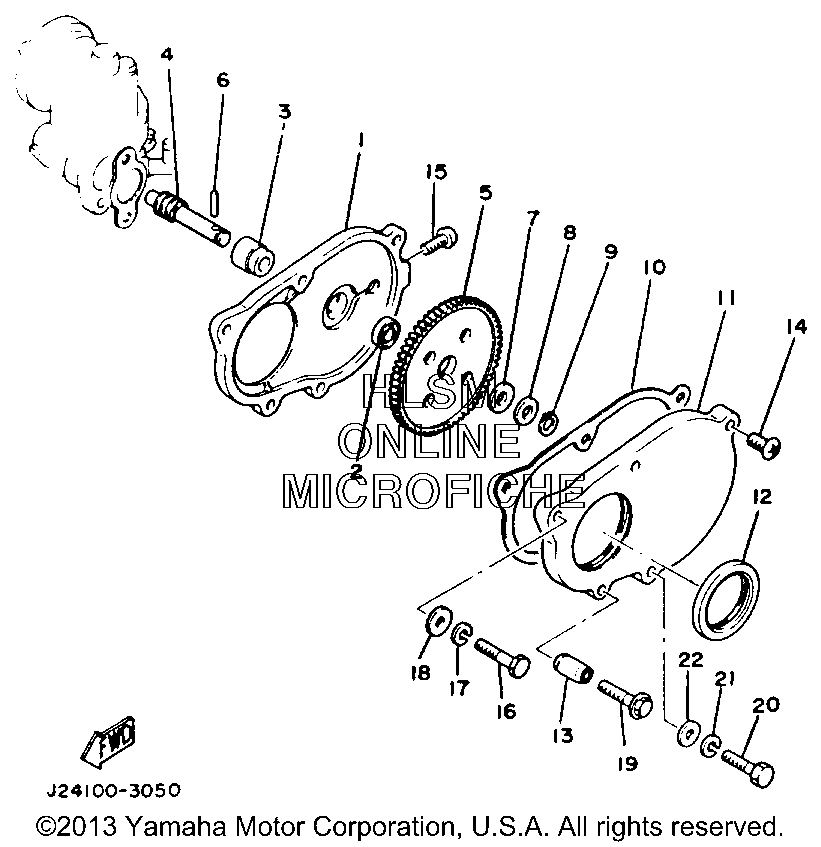

PUMP DRIVE GEAR для Yamaha SUN CLASSIC GAS CAR [G3A] (J42) - 1986 года выпуска
-
№АртикулНазвание
-
1J10-15416-00-00 COVER, OIL PUMPCOVER, OIL PUMP
-
293101-10090-00 OIL SEALOIL SEAL
-
31E7-13176-00-00 METAL, WORM SHAFT OTRMETAL, WORM SHAFT OTR
-
4J10-13175-00-00 SHAFT, WORMSHAFT, WORM
-
5J10-13188-00-00 GEAR, DRIVEGEAR, DRIVE
-
693603-22028-00 PIN, DOWELPIN, DOWEL
-
790206-11016-00 WASHER, WAVEWASHER, WAVE
-
8137-13148-00-00 PLATE, CAM THRUSTPLATE, CAM THRUST
-
999009-10400-00 CIRCLIPCIRCLIP
-
10J10-15466-00-00 GASKET 2GASKET 2
-
11J10-15426-00-00 COVER, OIL PUMP RCOVER, OIL PUMP R
-
1293112-53004-00 OIL SEAL, SR-TYPEOIL SEAL, SR-TYPE
-
1391810-18025-00 PIN, DOWELPIN, DOWEL
-
1498503-06018-00 SCREW, PAN HEAD (92503-060180-00)SCREW, PAN HEAD (92503-060180-00)
-
1598580-06012-00 SCREW, PAN HEAD (92501-06012-00)SCREW, PAN HEAD (92501-06012-00)
-
1697313-08035-00 BOLT, HEXAGONBOLT, HEXAGON
-
1792990-08100-00 WASHER, SPRINGWASHER, SPRING
-
1892990-08600-00 WASHER, PLATEWASHER, PLATE
-
1995822-06035-00 BOLT, FLANGEBOLT, FLANGE
-
2097021-06030-00 BOLTBOLT
-
2192995-06100-00 WASHER, SPRINGWASHER, SPRING
-
2292990-06600-00 WASHER, PLATEWASHER, PLATE
