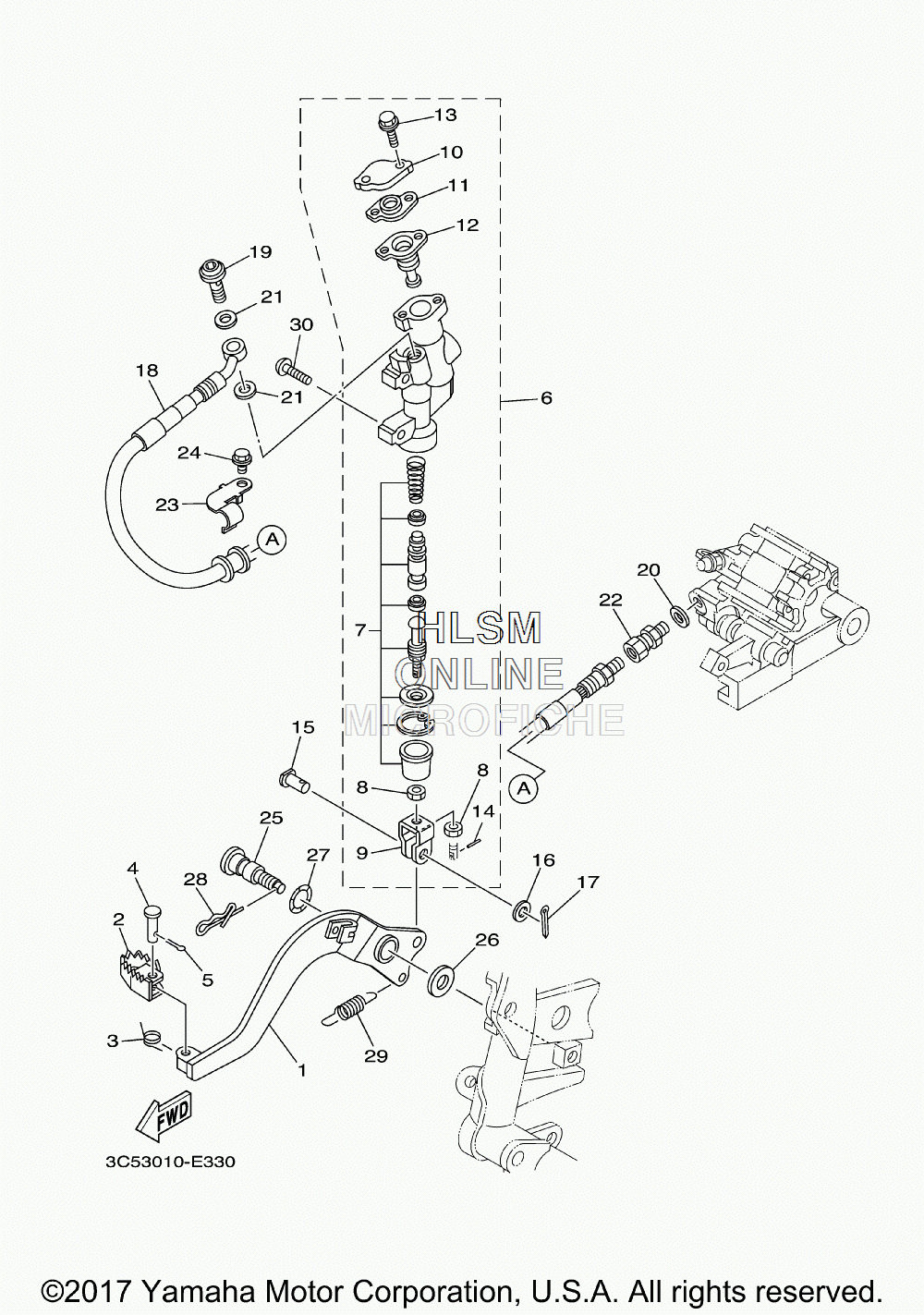

BRAKE - REAR MASTER CYLINDER для Yamaha XT 250 - 2018 года выпуска
-
№АртикулНазвание
-
13C5-27211-10-00 PEDAL, BRAKEPEDAL, BRAKE
-
255V-27242-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
390508-14352-00 SPRING, TORSIONSPRING, TORSION
-
491701-06022-00 PINPIN
-
591401-20012-00 PIN, COTTERPIN, COTTER
-
65XT-2583V-10-00 REAR MASTER CYLINDER ASSY.REAR MASTER CYLINDER ASSY.
-
75XT-W0042-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
84SS-27218-00-00 ...NUT...NUT
-
92YK-27222-00-00 ...JOINT...JOINT
-
105UN-25852-50-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
115UN-2585B-00-00 ...PLATE, DIAPHRAGM...PLATE, DIAPHRAGM
-
125UN-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
135UN-27217-00-00 ...BOLT...BOLT
-
143KW-27234-00-00 ...PIN, BRAKE ROD...PIN, BRAKE ROD
-
1590240-08005-00 PIN, CLEVISPIN, CLEVIS
-
1690201-08083-00 WASHER, PLATEWASHER, PLATE
-
1791401-16012-00 PIN, COTTERPIN, COTTER
-
183C5-25873-00-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
1990401-10172-00 BOLT, UNIONBOLT, UNION
-
2090201-10118-00 WASHER, PLATEWASHER, PLATE
-
2190430-10005-00 GASKETGASKET
-
223LC-25885-00-00 JOINTJOINT
-
233C5-25887-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2495802-06008-00 BOLT, FLANGEBOLT, FLANGE
-
255XT-27261-00-00 SHAFTSHAFT
-
2690201-10135-00 WASHER, PLATEWASHER, PLATE
-
2790206-14001-00 WASHER, WAVEWASHER, WAVE
-
2890468-16191-00 CLIPCLIP
-
2990506-23008-00 SPRING, TENSIONSPRING, TENSION
-
3090149-06302-00 SCREWSCREW
