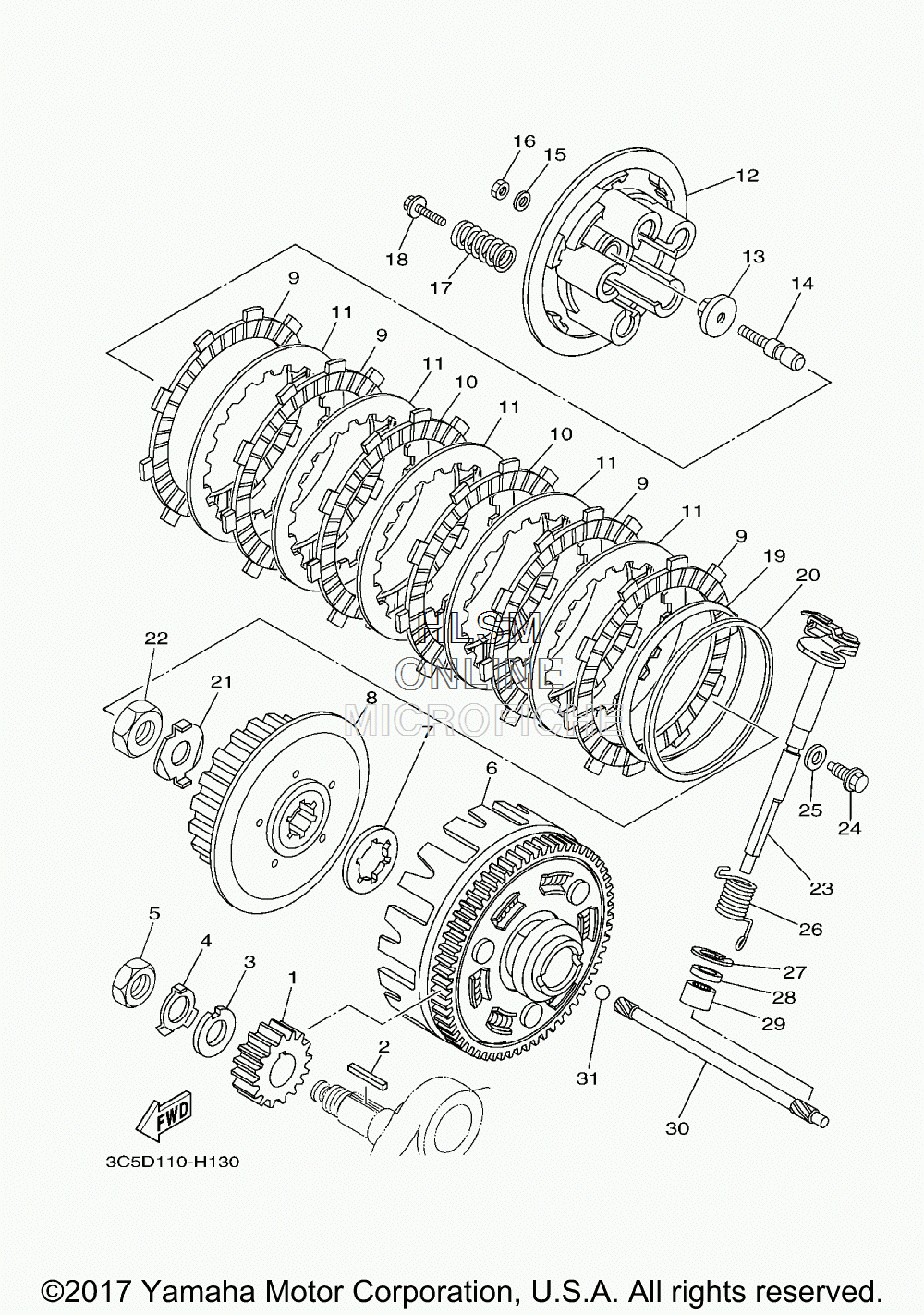

CLUTCH для Yamaha XT 250 - 2018 года выпуска
-
№АртикулНазвание
-
15XT-16111-00-00 GEAR, PRIMARY DRIVE (24T)GEAR, PRIMARY DRIVE (24T)
-
290282-05077-00 KEY, STRAIGHTKEY, STRAIGHT
-
390214-16063-00 WASHER, CLAWWASHER, CLAW
-
490215-16293-00 WASHER, LOCKWASHER, LOCK
-
590170-16425-00 NUTNUT
-
65XT-16150-00-00 PRIMARY DRIVEN GEAR COMP. (74T)PRIMARY DRIVEN GEAR COMP. (74T)
-
730X-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
84GY-16371-01-00 BOSS, CLUTCHBOSS, CLUTCH
-
91KT-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
105DH-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
113XJ-16324-01-00 PLATE, CLUTCH 1PLATE, CLUTCH 1
-
124GY-16351-00-00 PLATE, PRESSURE 1PLATE, PRESSURE 1
-
131W1-16358-01-00 PLATE, PUSHPLATE, PUSH
-
145XT-16356-00-00 ROD, PUSH 1ROD, PUSH 1
-
1592902-06200-00 WASHERWASHER
-
1695302-06600-00 NUT, HEXAGONNUT, HEXAGON
-
1790501-23598-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1890159-06010-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
193XV-16383-00-00 SPRING, CUSHIONSPRING, CUSHION
-
205NL-16384-00-00 PLATE, SEATPLATE, SEAT
-
2190215-16289-00 WASHER, LOCKWASHER, LOCK
-
2290170-16326-00 NUTNUT
-
235XT-16380-00-00 PUSH LEVER ASSYPUSH LEVER ASSY
-
2490109-08105-00 BOLTBOLT
-
2590430-08119-00 GASKETGASKET
-
2690508-203B3-00 SPRING, TORSIONSPRING, TORSION
-
2799009-20500-00 CIRCLIPCIRCLIP
-
2893102-12224-00 OIL SEALOIL SEAL
-
2993315-11206-00 BEARINGBEARING
-
304GY-16357-00-00 ROD, PUSH 2ROD, PUSH 2
-
3193511-32017-00 BALLBALL
