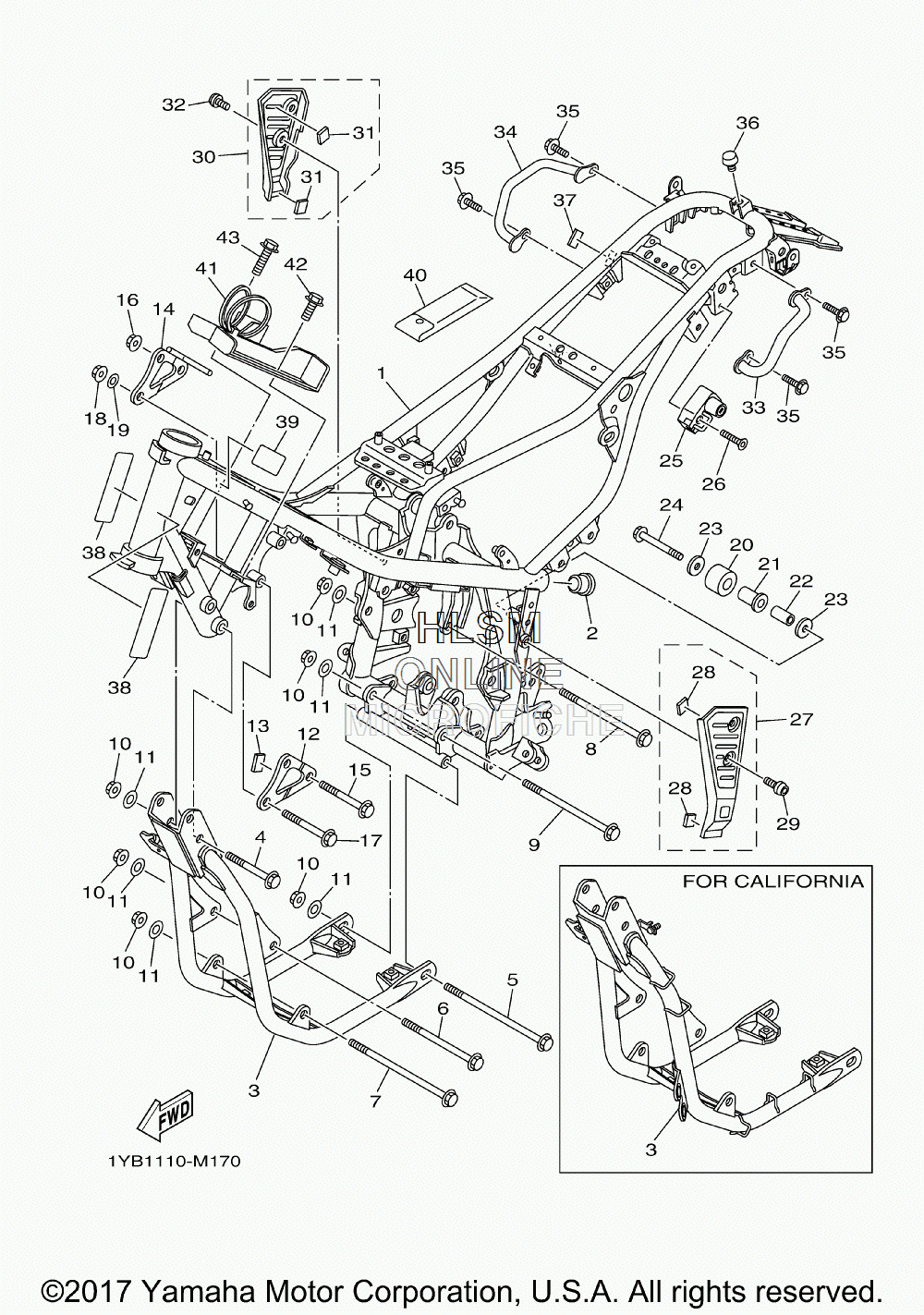

FRAME для Yamaha XT 250 - 2018 года выпуска
-
№АртикулНазвание
-
11YB-21110-00-00 FRAME COMP.FRAME COMP.
-
290338-26004-00 PLUGPLUG
-
33C5-21140-20-00 DOWN TUBE COMP. (EXCEPT CALIF)DOWN TUBE COMP. (EXCEPT CALIF)
-
33C5-21140-10-00 DOWN TUBE COMP. (CALIF ONLY)DOWN TUBE COMP. (CALIF ONLY)
-
490105-10788-00 BOLT, FLANGEBOLT, FLANGE
-
590105-10300-00 BOLT, FLANGEBOLT, FLANGE
-
690105-10220-00 BOLT, FLANGEBOLT, FLANGE
-
790105-10403-00 BOLT, FLANGEBOLT, FLANGE
-
890105-10219-00 BOLT, FLANGEBOLT, FLANGE
-
990105-10214-00 BOLT, FLANGEBOLT, FLANGE
-
1090179-10658-00 NUTNUT
-
1190201-10035-00 WASHER, PLATEWASHER, PLATE
-
123C5-21315-20-00 STAY, ENGINE 1STAY, ENGINE 1
-
1351Y-21639-00-00 DAMPER 2DAMPER 2
-
143C5-21316-20-00 STAY, ENGINE 2STAY, ENGINE 2
-
1590105-10281-00 BOLT, FLANGEBOLT, FLANGE
-
1690179-10658-00 NUTNUT
-
1790105-08102-00 BOLT, FLANGEBOLT, FLANGE
-
1890179-08674-00 NUTNUT
-
1990201-08043-00 WASHER, PLATEWASHER, PLATE
-
2010V-22178-00-00 TENSIONERTENSIONER
-
2110V-22184-00-00 BUSHBUSH
-
2290387-08024-00 COLLARCOLLAR
-
2390201-08753-00 WASHER, PLATEWASHER, PLATE
-
2495022-08045-00 BOLT, FLANGEBOLT, FLANGE
-
254R8-21308-01-00 HELMET HANGER ASSYHELMET HANGER ASSY
-
2690151-06018-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
273C5-2110M-01-00 COVER ASSY 1COVER ASSY 1
-
285XT-2139X-01-00 ...DAMPER...DAMPER
-
2990149-06298-00 SCREWSCREW
-
303C5-2110N-01-00 COVER ASSY 2COVER ASSY 2
-
315XT-2139X-01-00 ...DAMPER...DAMPER
-
3290149-06298-00 SCREWSCREW
-
333C5-21165-00-00 HANDLE, STANDINGHANDLE, STANDING
-
343C5-21275-00-00 STAY, REARSTAY, REAR
-
3595802-08016-00 BOLT, FLANGEBOLT, FLANGE
-
365RU-24768-00-00 STOPPERSTOPPER
-
3722F-21746-01-00 DAMPERDAMPER
-
385XT-21268-00-00 SEALSEAL
-
3932C-21686-00-00 PLATE, ROUTING 2 (CALIF ONLY)PLATE, ROUTING 2 (CALIF ONLY)
-
403C5-28100-00-00 TOOL KITTOOL KIT
-
415XT-21107-00-00 TOOL BOX COMP.TOOL BOX COMP.
-
4295022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
4395022-06035-00 BOLT, FLANGEBOLT, FLANGE
