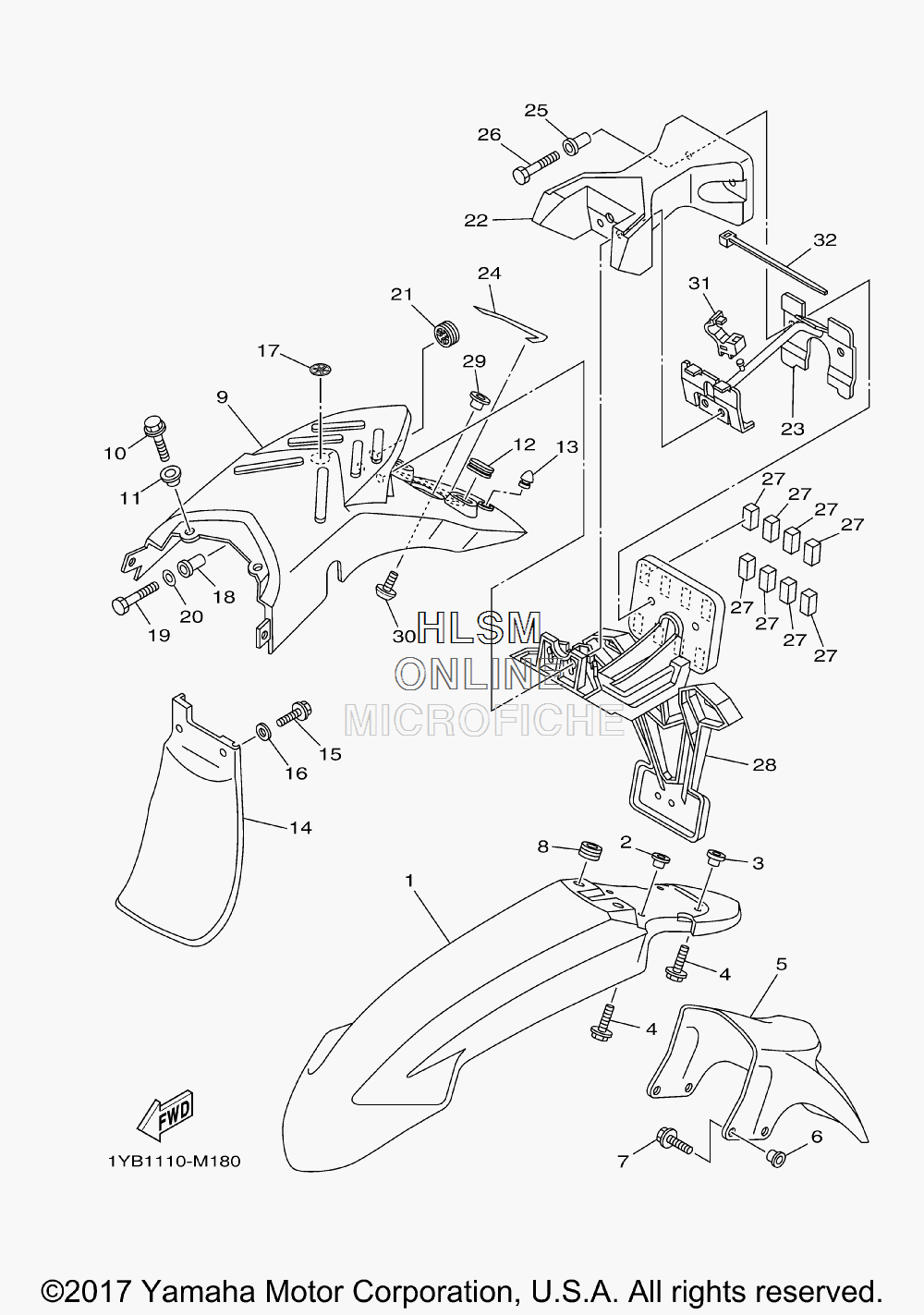

FENDER - FRONT / REAR для Yamaha XT 250 - 2018 года выпуска
-
№АртикулНазвание
-
13C5-21511-60-00 FENDER, FRONTFENDER, FRONT
-
290387-06681-00 COLLARCOLLAR
-
390387-06117-00 COLLARCOLLAR
-
490119-06147-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
53C5-21556-00-00 FENDER, FRONT 2FENDER, FRONT 2
-
690387-06681-00 COLLARCOLLAR
-
790119-06147-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
890480-13398-00 GROMMETGROMMET
-
93C5-21611-00-00 FENDER, REARFENDER, REAR
-
1095022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1190387-06107-00 COLLARCOLLAR
-
123C5-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
134G0-21639-00-00 DAMPER 2DAMPER 2
-
145XT-21642-02-00 GUARD, FLAPGUARD, FLAP
-
1595802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1690201-06055-00 WASHER, PLATEWASHER, PLATE
-
173C5-2411B-00-00 EMBLEMEMBLEM
-
1890387-0602Y-00 COLLARCOLLAR
-
1997002-06030-00 BOLTBOLT
-
2092902-06600-00 WASHER, PLATEWASHER, PLATE
-
214XV-83513-00-00 DAMPERDAMPER
-
223C5-84527-10-00 DAMPERDAMPER
-
233C5-2161A-00-00 BRACKET 3BRACKET 3
-
243C5-21652-00-00 PROTECTORPROTECTOR
-
2590387-06M21-00 COLLARCOLLAR
-
2697022-06030-00 BOLT, HEXAGONBOLT, HEXAGON
-
274D9-28415-00-00 DAMPER 1DAMPER 1
-
283C5-84551-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
293C5-21634-00-00 COLLAR 2COLLAR 2
-
3090105-06170-00 BOLT, FLANGEBOLT, FLANGE
-
3190464-05188-00 CLAMPCLAMP
-
325Y9-12491-00-00 CLAMP 1CLAMP 1
