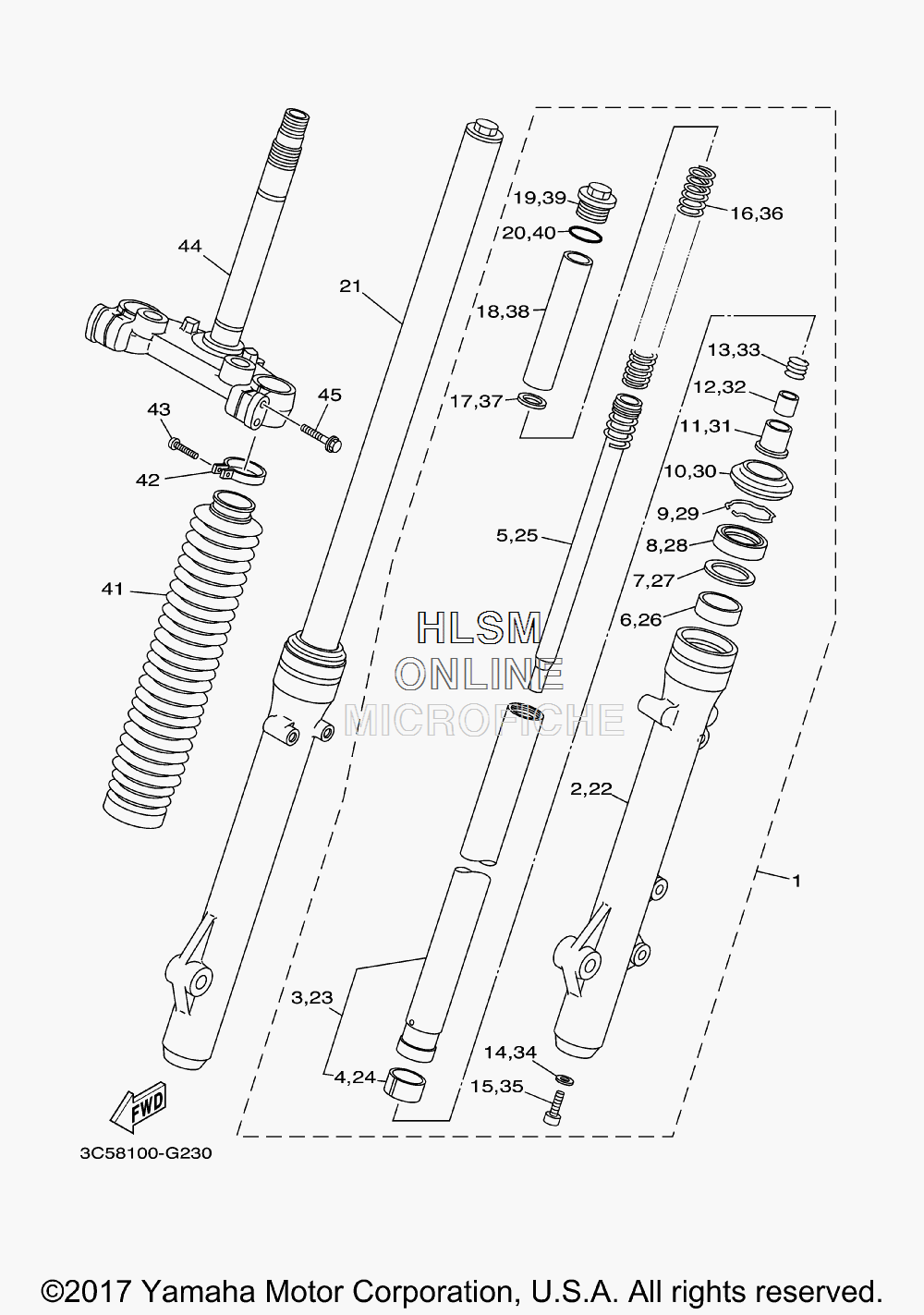

SUSPENSION - FRONT FORK для Yamaha XT 250 - 2018 года выпуска
-
№АртикулНазвание
-
13C5-23102-20-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
23C5-23126-10-00 ...TUBE, OUTER (L.H)...TUBE, OUTER (L.H)
-
33C5-23110-00-00 ......INNER TUBE COMP. 1......INNER TUBE COMP. 1
-
45JX-23171-00-00 ......PISTON, FRONT FORK......PISTON, FRONT FORK
-
53C5-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
65JX-23125-00-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
75K5-23149-00-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
85JX-23145-00-00 ...OIL SEAL...OIL SEAL
-
94A1-23156-00-00 ...RING, SNAP...RING, SNAP
-
105JX-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
115XT-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
125XT-23363-00-00 ...COLLAR 1...COLLAR 1
-
135XT-23151-00-00 ...SPRING, REBOUND...SPRING, REBOUND
-
141N1-23158-00-00 ...GASKET...GASKET
-
1591311-08025-00 ...BOLT...BOLT
-
163C5-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
174FY-23149-00-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
183C5-23118-00-00 ...SPACER...SPACER
-
195JX-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
20240-23114-00-00 ...GASKET...GASKET
-
213C5-23103-20-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
223C5-23136-10-00 ...TUBE, OUTER 2 (L.H.)...TUBE, OUTER 2 (L.H.)
-
233C5-23110-00-00 ......INNER TUBE COMP. 1......INNER TUBE COMP. 1
-
245JX-23171-00-00 ......PISTON, FRONT FORK......PISTON, FRONT FORK
-
253C5-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
265JX-23125-00-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
275K5-23149-00-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
285JX-23145-00-00 ...OIL SEAL...OIL SEAL
-
294A1-23156-00-00 ...RING, SNAP...RING, SNAP
-
305JX-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
315XT-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
325XT-23363-00-00 ...COLLAR 1...COLLAR 1
-
335XT-23151-00-00 ...SPRING, REBOUND...SPRING, REBOUND
-
341N1-23158-00-00 ...GASKET...GASKET
-
3591311-08025-00 ...BOLT...BOLT
-
363C5-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
374FY-23149-00-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
383C5-23118-00-00 ...SPACER...SPACER
-
395JX-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
40240-23114-00-00 ...GASKET...GASKET
-
413C5-23191-10-00 BOOTBOOT
-
423C5-23192-00-00 BANDBAND
-
4398506-04016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
443C5-23340-10-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
455RS-23346-00-00 BOLT 1BOLT 1
