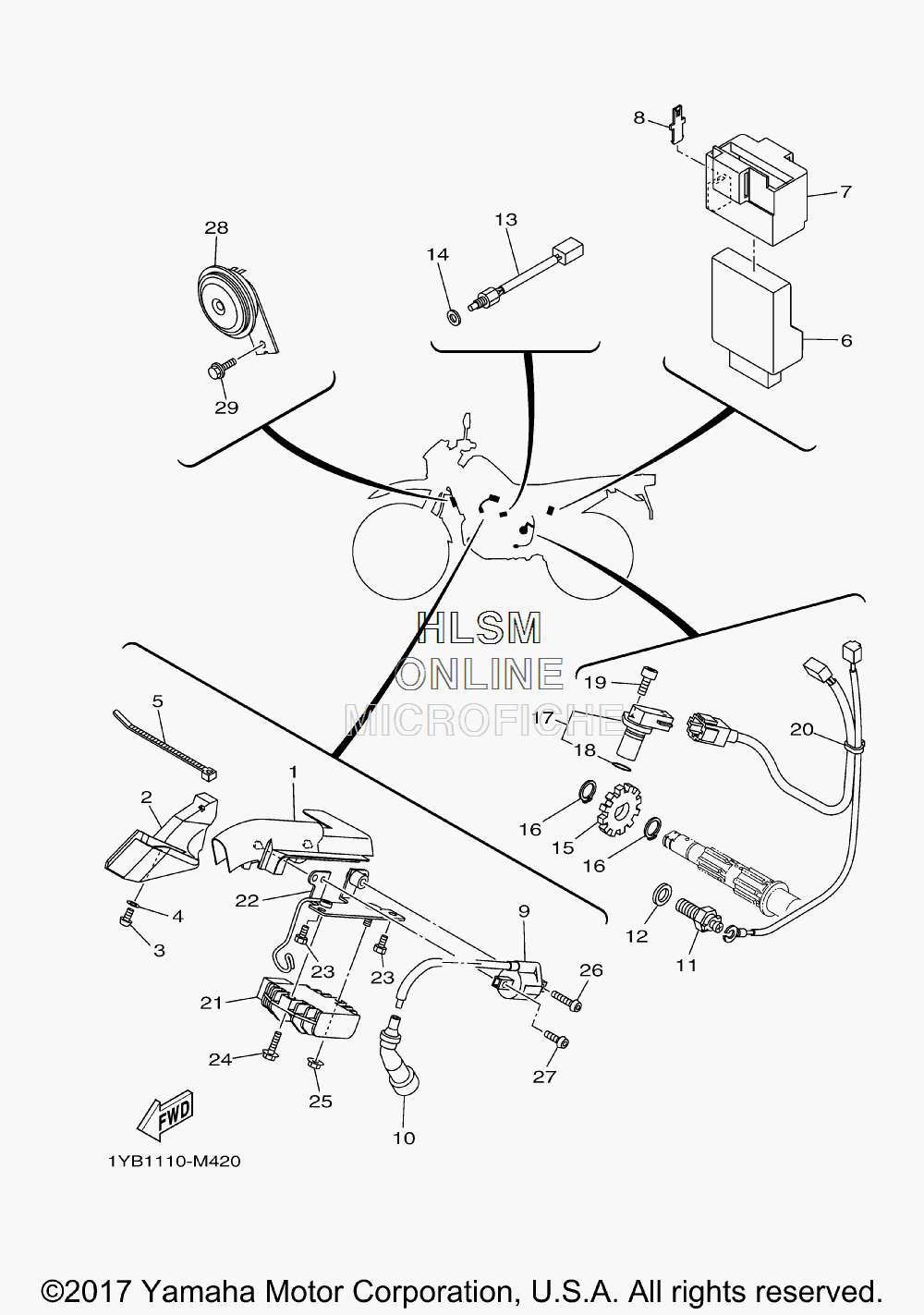

ELECTRICAL 2 для Yamaha XT 250 - 2018 года выпуска
-
№АртикулНазвание
-
15XT-2117N-00-00 COVER 3COVER 3
-
25XT-2117R-00-00 COVER 4COVER 4
-
390149-06298-00 SCREWSCREW
-
490201-06058-00 WASHER, PLATEWASHER, PLATE
-
51UA-82591-00-00 BANDBAND
-
61YB-8591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
75XT-85546-10-00 BANDBAND
-
85XT-82171-00-00 STAY, FUSE BOXSTAY, FUSE BOX
-
91S4-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
103NS-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
114KM-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
1290430-10148-00 GASKETGASKET
-
135XT-83591-00-00 THERMO UNITTHERMO UNIT
-
1490430-08204-00 GASKETGASKET
-
153C5-8354W-00-00 ROTORROTOR
-
1699009-17400-00 CIRCLIPCIRCLIP
-
171S4-83755-01-00 SENSOR, SPEEDSENSOR, SPEED
-
181S4-81168-00-00 ...O-RING...O-RING
-
1991312-06014-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
203C5-82309-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
215GT-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
221YB-21359-00-00 BRACKET, COIL (CALIF ONLY)BRACKET, COIL (CALIF ONLY)
-
225XT-21359-10-00 BRACKET, COIL (EXCEPT CALIF)BRACKET, COIL (EXCEPT CALIF)
-
2397012-06010-00 BOLTBOLT
-
2495802-06020-00 BOLT, FLANGEBOLT, FLANGE
-
2595602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2692012-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2792012-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
283C5-83371-00-00 HORNHORN
-
2995827-06010-00 BOLT, FLANGEBOLT, FLANGE
