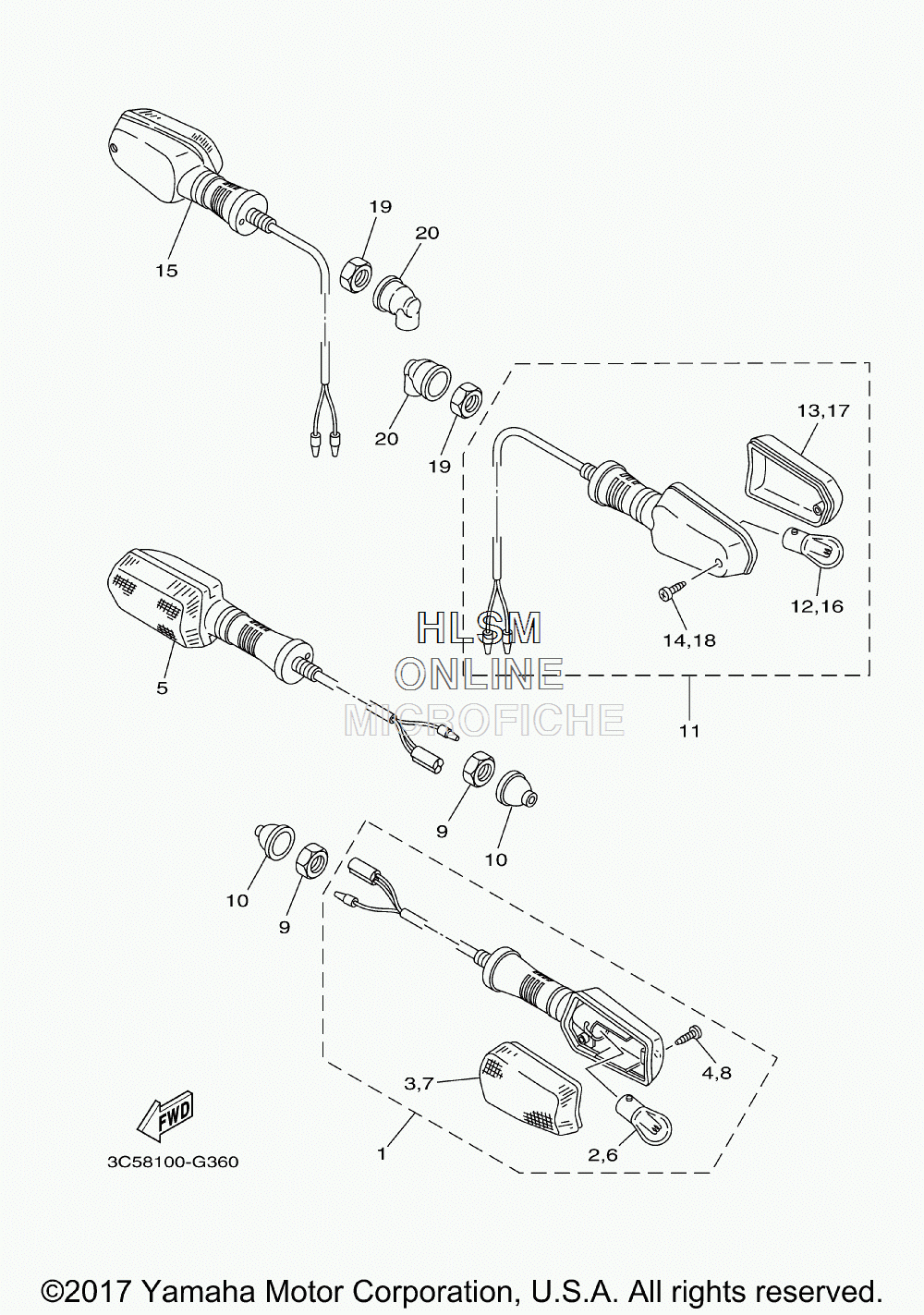

FLASHER LIGHT для Yamaha XT 250 - 2018 года выпуска
-
№АртикулНазвание
-
13C5-83310-10-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
2256-84714-61-00 ...BULB (12V-27/8W)...BULB (12V-27/8W)
-
31LJ-83342-00-00 ...LENS, FLASHER 2...LENS, FLASHER 2
-
497707-40520-00 ...SCREW, TAPPING...SCREW, TAPPING
-
53C5-83320-10-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
6256-84714-61-00 ...BULB (12V-27/8W)...BULB (12V-27/8W)
-
71LJ-83332-00-00 ...LENS, FLASHER...LENS, FLASHER
-
897707-40520-00 ...SCREW, TAPPING...SCREW, TAPPING
-
995302-12700-00 NUT, HEX.NUT, HEX.
-
1010V-83365-00-00 CAPCAP
-
113C5-83330-10-00 REAR FLASHER LIGHT ASSY 1REAR FLASHER LIGHT ASSY 1
-
12256-83311-70-00 ...BULB (12V-27W)...BULB (12V-27W)
-
131LJ-83332-00-00 ...LENS, FLASHER...LENS, FLASHER
-
1497707-40520-00 ...SCREW, TAPPING...SCREW, TAPPING
-
154BE-83340-00-00 REAR FLASHER LIGHT ASSY 2REAR FLASHER LIGHT ASSY 2
-
16256-83311-70-00 ...BULB (12V-27W)...BULB (12V-27W)
-
171LJ-83342-00-00 ...LENS, FLASHER 2...LENS, FLASHER 2
-
1897707-40520-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1995302-12700-00 NUT, HEX.NUT, HEX.
-
2018G-83365-00-00 CAPCAP
