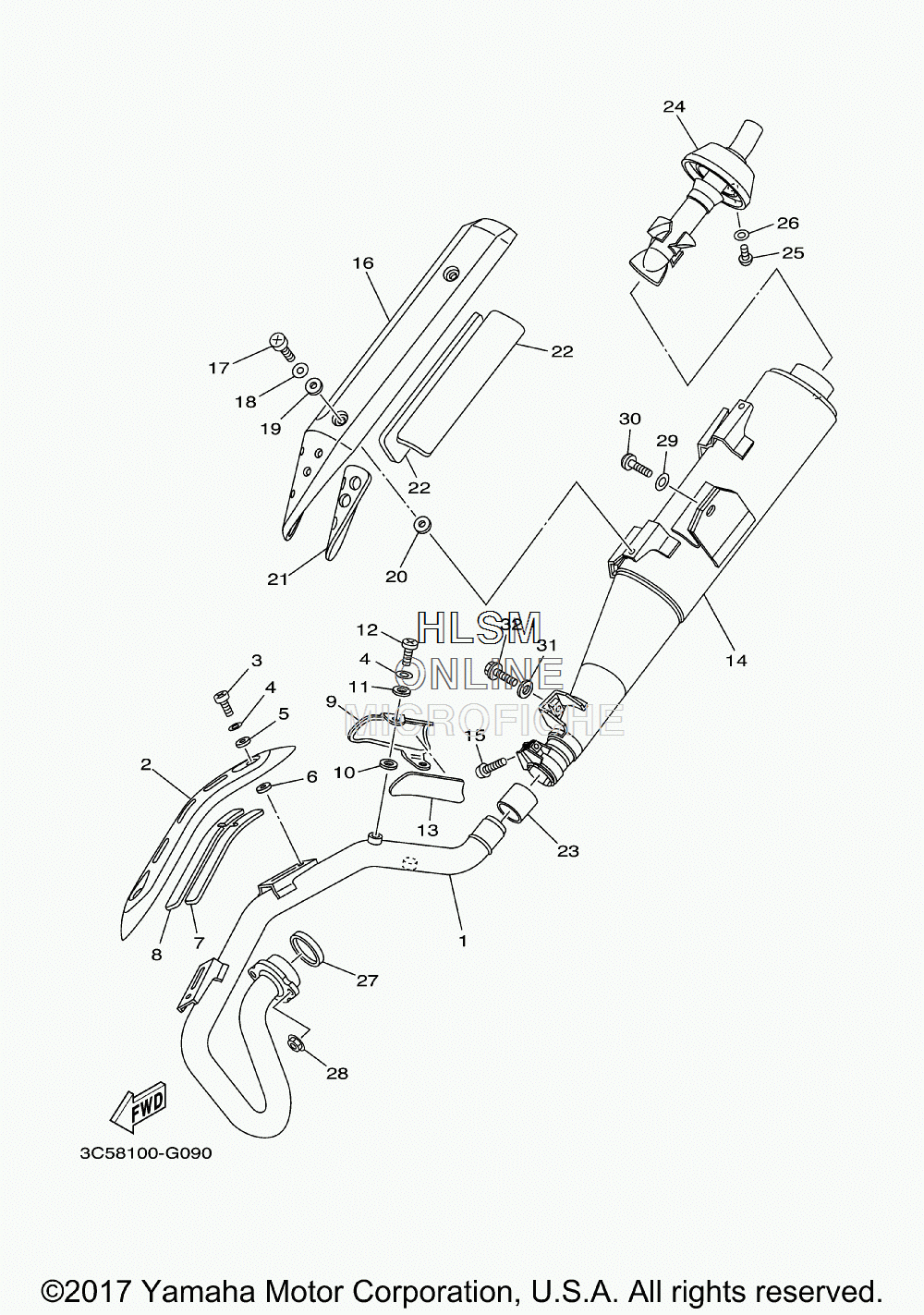

EXHAUST для Yamaha XT 250 - 2018 года выпуска
-
№АртикулНазвание
-
15XT-14611-10-00 PIPE, EXHAUST 1PIPE, EXHAUST 1
-
23C5-14628-00-00 PROTECTOR, EXHAUST PIPEPROTECTOR, EXHAUST PIPE
-
398980-06012-00 SCREW, BINDSCREW, BIND
-
490206-06090-00 WASHER, WAVEWASHER, WAVE
-
590201-05015-00 WASHER, PLATEWASHER, PLATE
-
690201-05016-00 WASHER, PLATEWASHER, PLATE
-
75XT-1465R-00-00 PLATE, PROTECTOR 1PLATE, PROTECTOR 1
-
85XT-1465T-00-00 PLATE, PROTECTOR 2PLATE, PROTECTOR 2
-
95XT-1479K-00-00 COVER, 3COVER, 3
-
1090201-05017-00 WASHER, PLATEWASHER, PLATE
-
1190201-05015-00 WASHER, PLATEWASHER, PLATE
-
1290154-06020-00 SCREW, BINDINGSCREW, BINDING
-
135XT-1465U-00-00 PLATE, PROTECTOR 3PLATE, PROTECTOR 3
-
143C5-14711-10-00 MUFFLER 1MUFFLER 1
-
1590109-085G6-00 BOLTBOLT
-
163C5-14728-00-00 PROTECTOR, MUFFLER 2PROTECTOR, MUFFLER 2
-
1798980-06012-00 SCREW, BINDSCREW, BIND
-
1890206-06090-00 WASHER, WAVEWASHER, WAVE
-
1990202-05187-00 WASHER, PLATEWASHER, PLATE
-
2090202-05188-00 WASHER, PLATEWASHER, PLATE
-
215XT-14738-00-00 PROTECTOR, MUFFLER 3PROTECTOR, MUFFLER 3
-
225XT-14748-00-00 PROTECTOR, MUFFLER 4PROTECTOR, MUFFLER 4
-
233YF-14714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
241RH-14752-01-00 PIPE, OUTLETPIPE, OUTLET
-
2598507-06010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2692907-06600-00 WASHER, PLATEWASHER, PLATE
-
273GD-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
2895704-08500-00 NUT, FLANGENUT, FLANGE
-
2990201-08326-00 WASHER, PLATEWASHER, PLATE
-
3090111-08019-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3190201-087A9-00 WASHER, PLATEWASHER, PLATE
-
3290105-08073-00 BOLT, FLANGEBOLT, FLANGE
