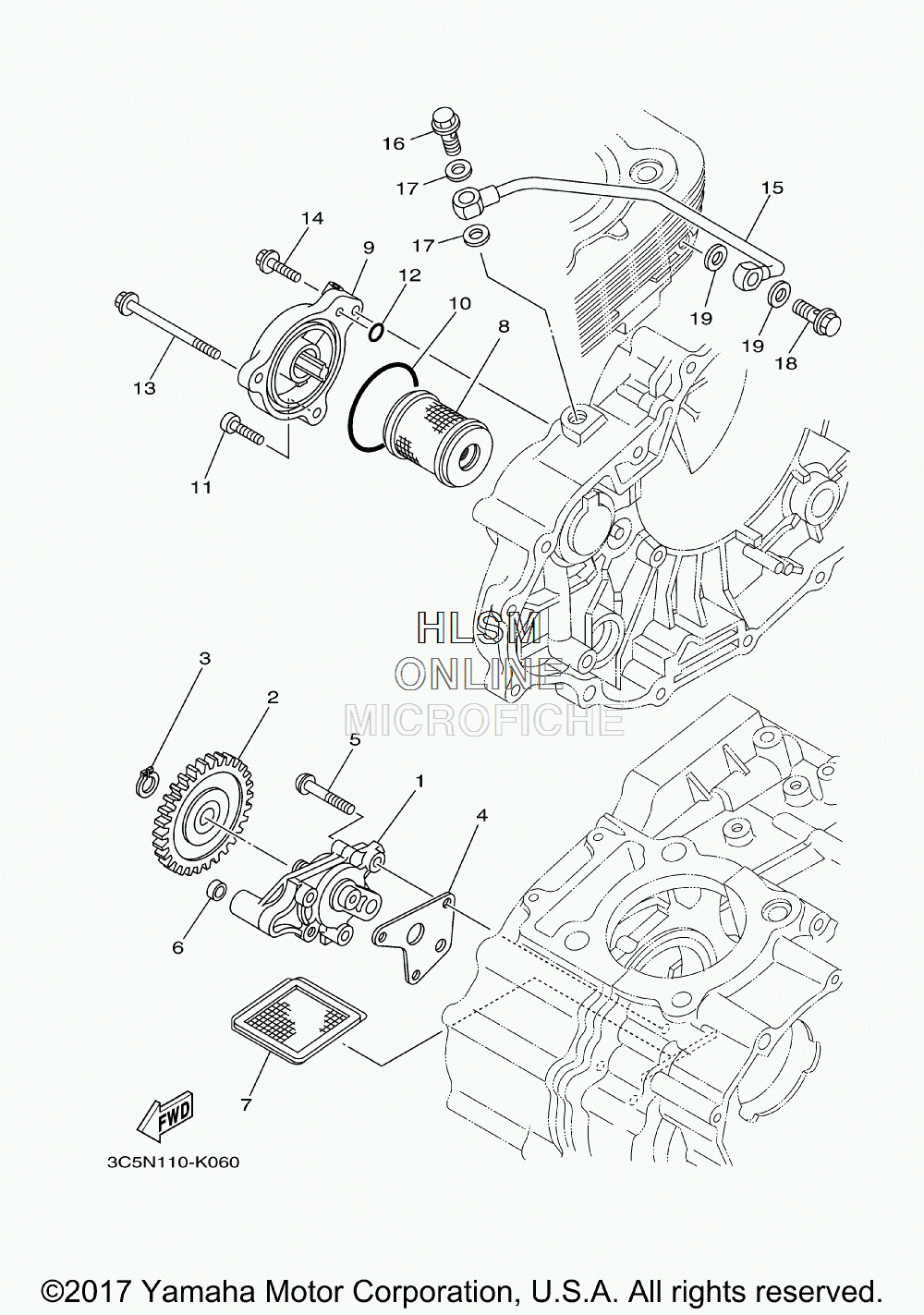

OIL PUMP для Yamaha XT 250 - 2018 года выпуска
-
№АртикулНазвание
-
14D3-13300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
25BP-13326-01-00 GEAR, PUMP DRIVEN 2 (38T)GEAR, PUMP DRIVEN 2 (38T)
-
399009-11400-00 CIRCLIPCIRCLIP
-
44D3-13329-00-00 GASKET, PUMP COVERGASKET, PUMP COVER
-
590149-06093-00 SCREWSCREW
-
690430-06156-00 GASKETGASKET
-
722F-13411-01-00 STRAINER, OILSTRAINER, OIL
-
85D3-13440-02-00 ELEMENT ASSY, OIL CLEANERELEMENT ASSY, OIL CLEANER
-
95XT-13447-00-00 COVER, OIL ELEMENTCOVER, OIL ELEMENT
-
1093210-54175-00 O-RINGO-RING
-
1191314-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1293210-07135-00 O-RINGO-RING
-
1391314-06070-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1491314-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
155XT-13161-01-00 PIPE, DELIVERY 1PIPE, DELIVERY 1
-
1690401-10003-00 BOLT, UNIONBOLT, UNION
-
1790430-10171-00 GASKETGASKET
-
1890401-08007-00 BOLT, UNIONBOLT, UNION
-
1990430-08119-00 GASKETGASKET
