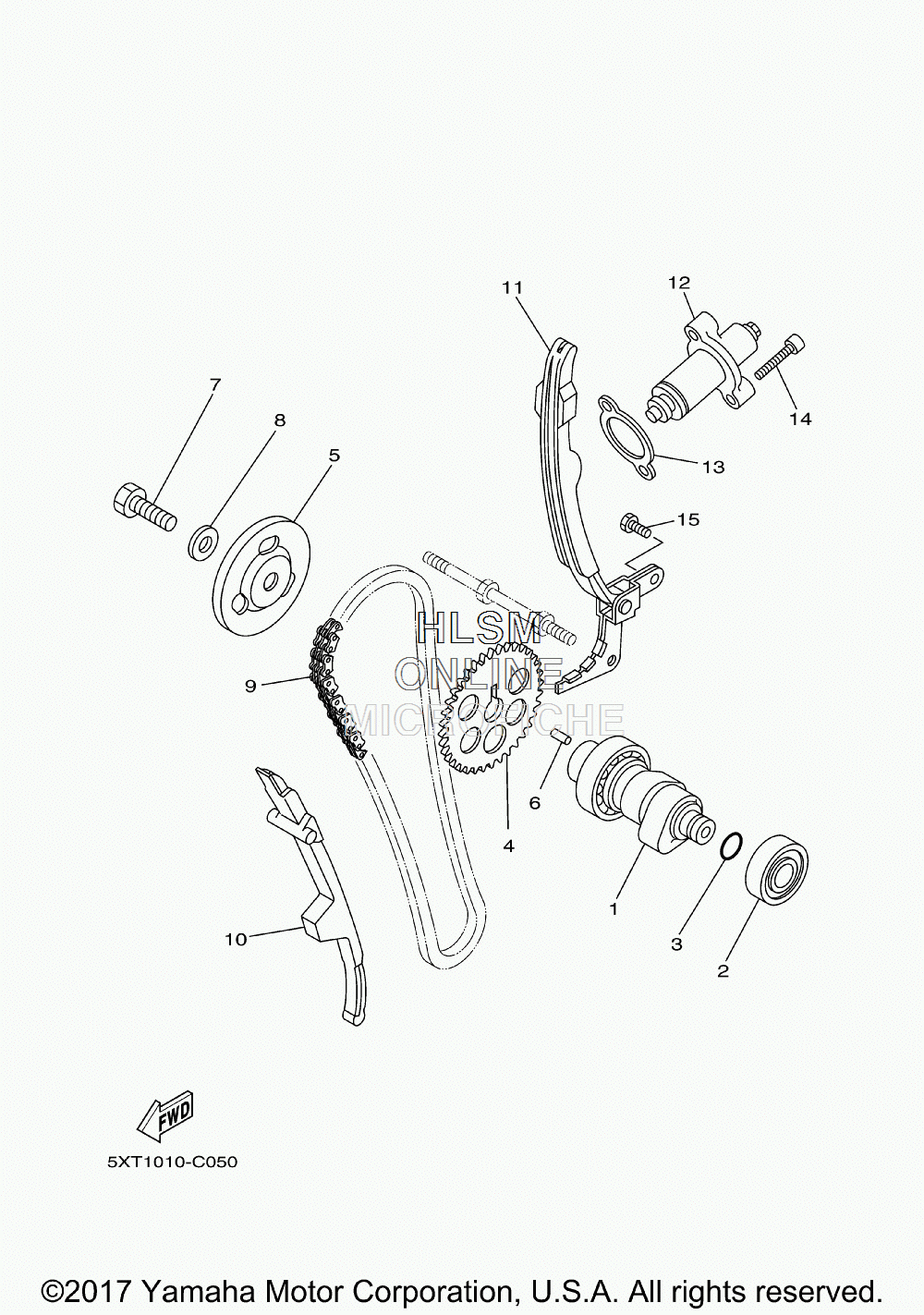

CAMSHAFT W/ CHAIN для Yamaha XT 250 - 2018 года выпуска
-
№АртикулНазвание
-
15XT-12170-00-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
293306-20204-00 BEARINGBEARING
-
393210-11453-00 O-RINGO-RING
-
45XT-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
54KB-11145-00-00 PLATE, BREATHER 2PLATE, BREATHER 2
-
693604-10011-00 PIN, DOWELPIN, DOWEL
-
790101-10016-00 BOLTBOLT
-
890201-10591-00 WASHER, PLATEWASHER, PLATE
-
994582-19104-00 CHAIN (DID SCR-0404 SV 104LE)CHAIN (DID SCR-0404 SV 104LE)
-
105BP-12231-00-00 GUIDE, STOPPER 1GUIDE, STOPPER 1
-
115XT-12241-01-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
125XT-12210-00-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
135XT-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
1491314-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1590101-06043-00 BOLTBOLT
