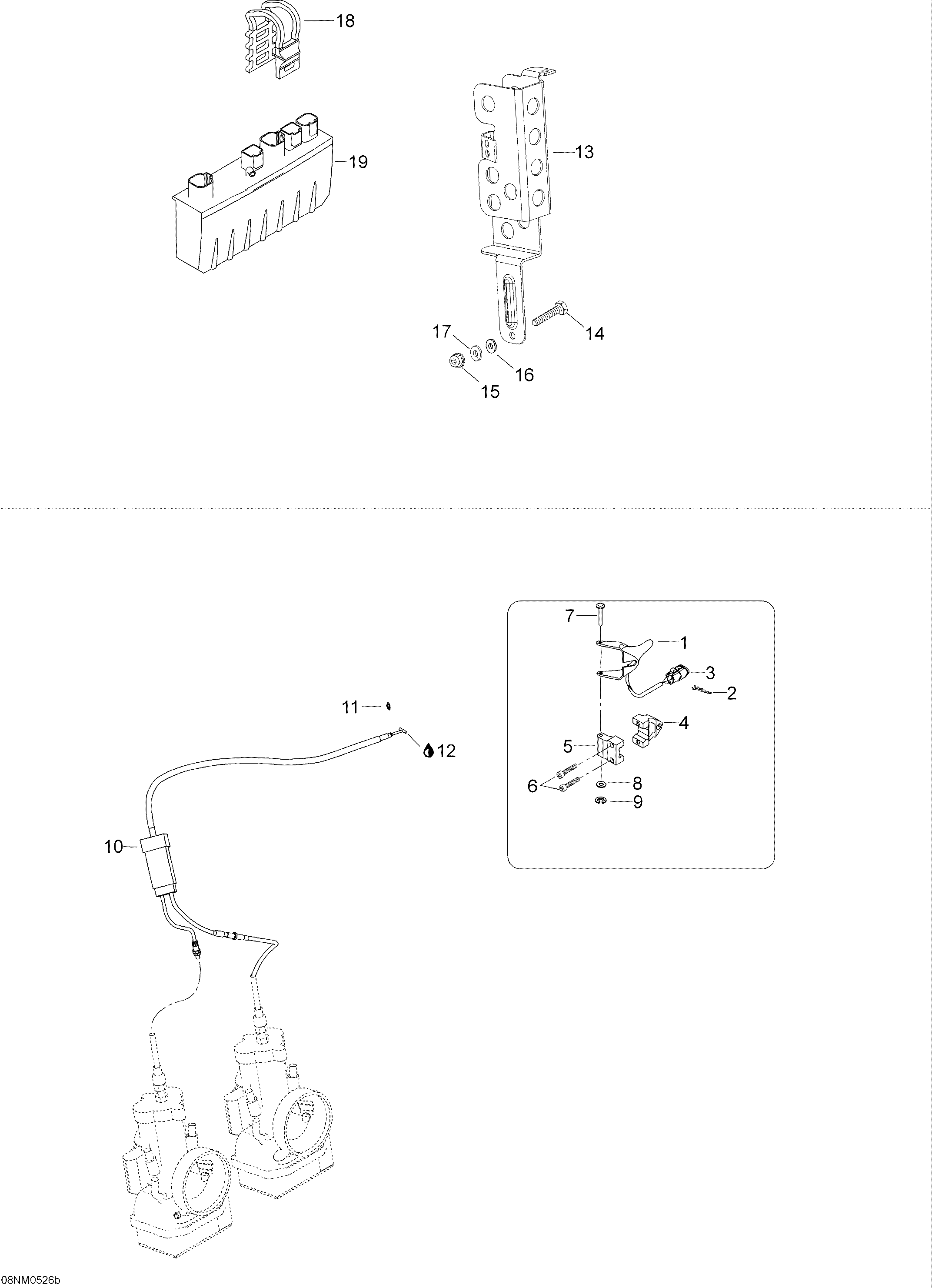

01- Engine для BRP Lynx Rave 440 - 2005
-
№АртикулНазвание
-
1512059767 Handle ass'yHandle ass'y
-
242603 ConnectorConnector
-
342271 Male connector housingMale connector housing
-
4512059537 Lower housingLower housing
-
5512059538 Upper housingUpper housing
-
640220 Socket head screw M5 x 25Socket head screw M5 x 25
-
7414438700 PinPin
-
8414438900 WasherWasher
-
9414439000 CirclipCirclip
-
10512059742 Throttle cableThrottle cable
-
1131038 CirclipCirclip
-
12293550004 Dielectric grease, 150gDielectric grease, 150g
-
13605352687 BracketBracket
-
1440029 Hex. socket screw M6 x 16Hex. socket screw M6 x 16
-
1533200 Elastic flanged nut M6Elastic flanged nut M6
-
1620009 Washer A6,4Washer A6,4
-
1720052 Lock washer A6Lock washer A6
-
18570069700 LatchLatch
-
19512059985 Module calib.Module calib.
