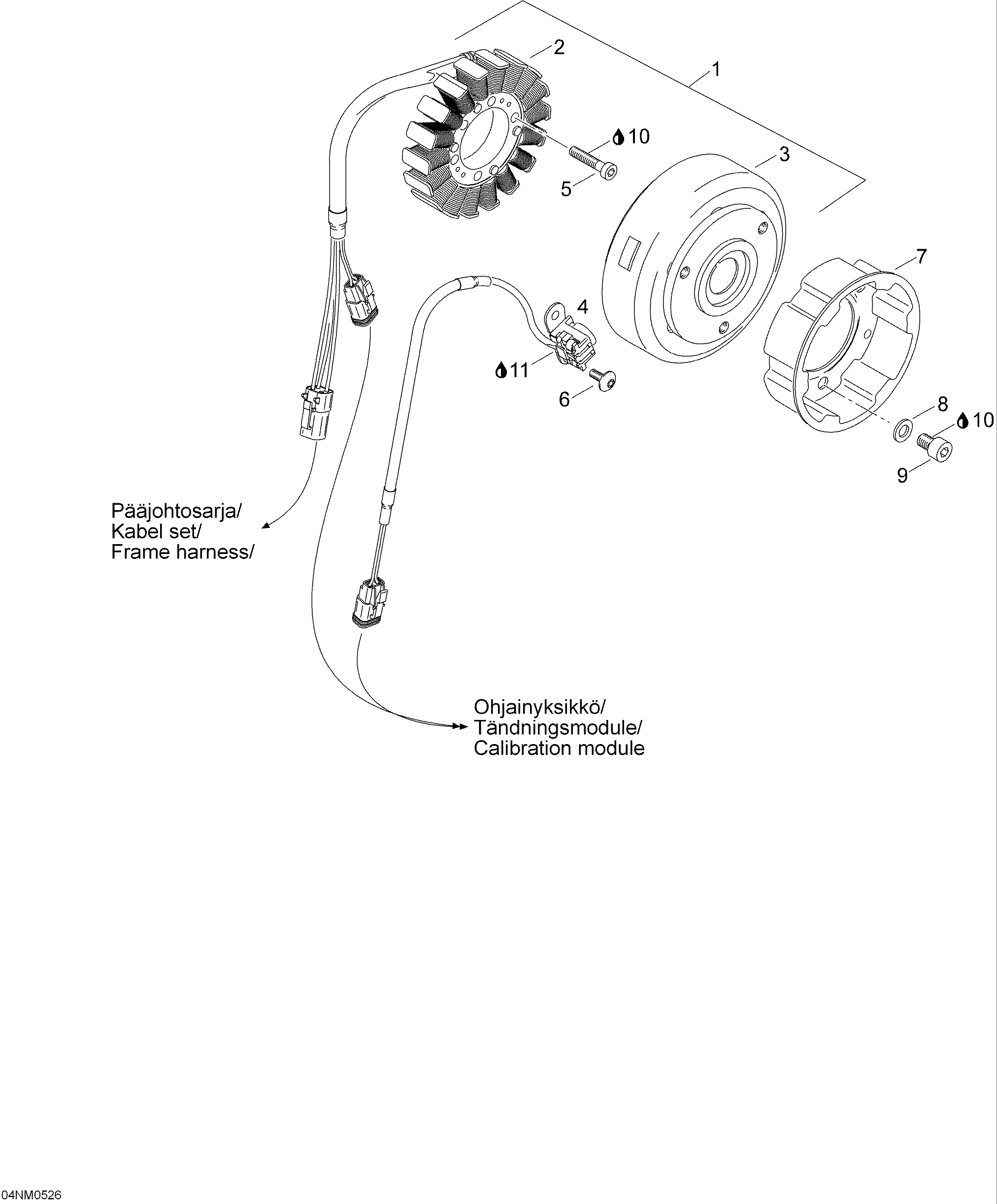

03- Magneto для BRP Lynx Rave 440 - 2005
-
№АртикулНазвание
-
1420888663 Magneto 12V/290W. Includes 1 to 4Magneto 12V/290W. Includes 1 to 4
-
2410922967 Stator assyStator assy
-
3420889347 Magneto flywheelMagneto flywheel
-
4420966837 Pick up assyPick up assy
-
5420840886 Allen screw M6 x 30Allen screw M6 x 30
-
6420640321 Taptite screw M6 x 16Taptite screw M6 x 16
-
7420852590 Starter cupStarter cup
-
8420827405 Lock washerLock washer
-
9420841520 Allen screw M8 x 12Allen screw M8 x 12
-
10293800060 Loctite 243, 10mlLoctite 243, 10ml
-
11420297710 PU-glue, sikaflex 255PU-glue, sikaflex 255
