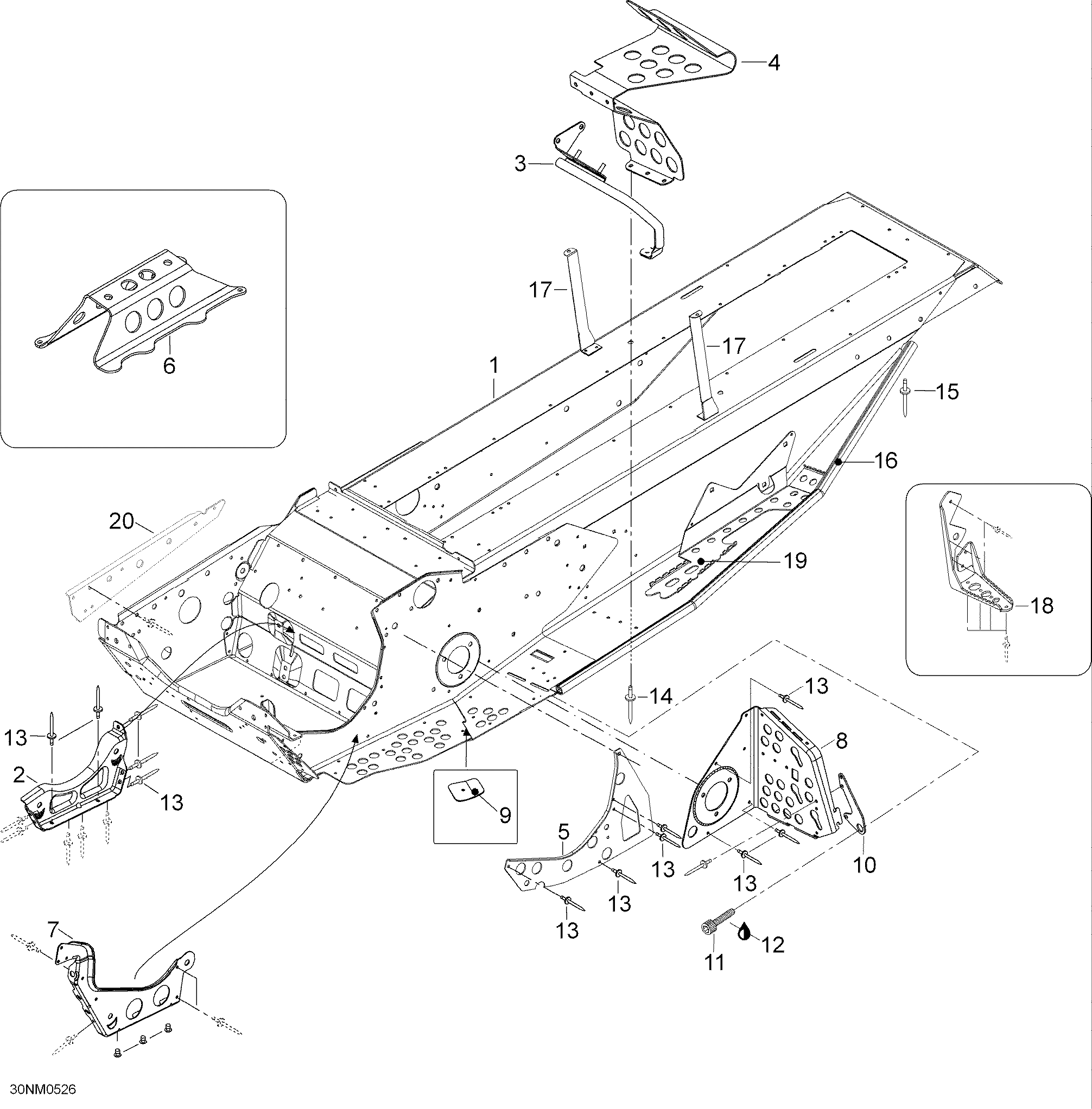

09- Frame для BRP Lynx Rave 440 - 2005
-
№АртикулНазвание
-
1605152365 Frame. Includes 1 to 20Frame. Includes 1 to 20
-
2518323346 StiffenerStiffener
-
3605352622 R.H. FootrestR.H. Footrest
-
3605352621 L.H. FootrestL.H. Footrest
-
4605351601 R.H. Toe holdR.H. Toe hold
-
4605351600 L.H. Toe holdL.H. Toe hold
-
5605350345 Inner reinforcementInner reinforcement
-
6518324093 Engine supportEngine support
-
7605451826 L.H. Engine supportL.H. Engine support
-
8518323805 R.H. footrest reinforcementR.H. footrest reinforcement
-
8518324527 L.H. footrest reinforcementL.H. footrest reinforcement
-
9605451590 Rivet plateRivet plate
-
10605450199 Support plateSupport plate
-
1140398 Socket head screw M12 x 25Socket head screw M12 x 25
-
1336007 RivetRivet
-
1436108 RivetRivet
-
1536489 RivetRivet
-
16605352467 L.H. RollerL.H. Roller
-
16605352468 R.H. RollerR.H. Roller
-
17605351612 L.H. Steel stripL.H. Steel strip
-
17605351613 R.H. Steel stripR.H. Steel strip
-
18605351603 R.H. Side bracketR.H. Side bracket
-
18605351602 L.H. Side bracketL.H. Side bracket
-
19605252476 R.H. Side bracketR.H. Side bracket
-
19605252475 L.H. Side bracketL.H. Side bracket
-
20605350346 StiffenerStiffener
