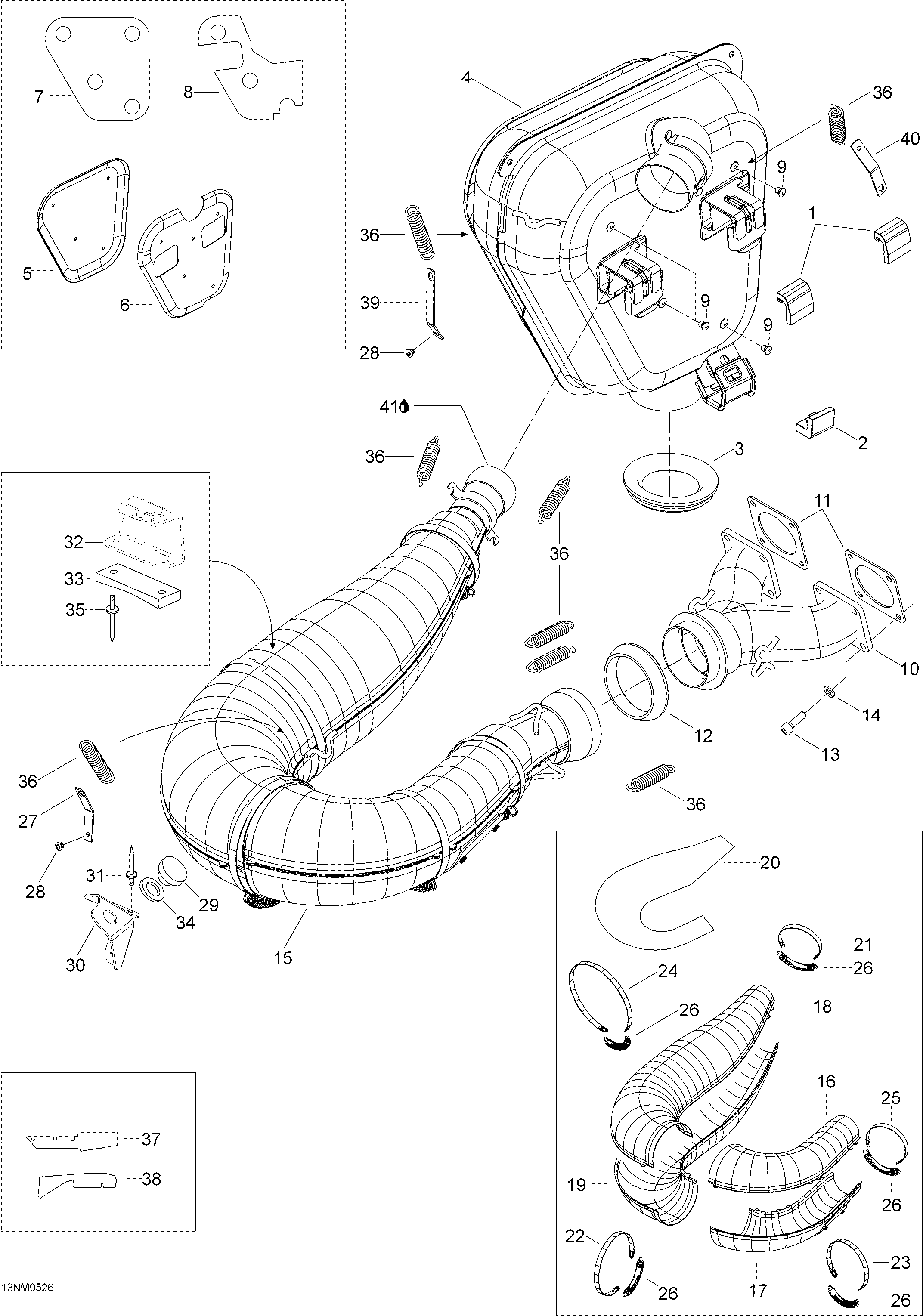

01- Exhaust System для BRP Lynx Rave 440 - 2005
-
№АртикулНазвание
-
1514053372 Upper stopperUpper stopper
-
2514053373 Lower stopperLower stopper
-
3514053394 Exhaust grommetExhaust grommet
-
4514053868 Muffler ass'y. Includes 4 to 9Muffler ass'y. Includes 4 to 9
-
5514053139 R.H. Heat shieldR.H. Heat shield
-
6514053883 L.H. Heat shieldL.H. Heat shield
-
7514053141 R.H. Insulating woolR.H. Insulating wool
-
8514053884 L.H. Insulating woolL.H. Insulating wool
-
9390910000 RivetRivet
-
10420973557 ManifoldManifold
-
11420850552 GasketGasket
-
12514053487 Exhaust gasketExhaust gasket
-
1340052 Socket head screw M6 x 20Socket head screw M6 x 20
-
1420052 Lock washer A6Lock washer A6
-
15514053873 Tuned pipe ass'y. Includes 15 to 26Tuned pipe ass'y. Includes 15 to 26
-
16514053151 Upper front half-enveloppeUpper front half-enveloppe
-
17514053152 Lower inferior half-enveloppe ass'yLower inferior half-enveloppe ass'y
-
18514053475 Upper rear half-enveloppeUpper rear half-enveloppe
-
19514053476 Lower rear half-enveloppe ass'yLower rear half-enveloppe ass'y
-
20514053558 Insulating woolInsulating wool
-
21514053437 Retaining strapRetaining strap
-
22514053534 Retaining strapRetaining strap
-
23514053499 Retaining strapRetaining strap
-
24514053605 Retaining strapRetaining strap
-
25514053494 Retaining strapRetaining strap
-
26514053643 SpringSpring
-
27605453357 Spring bracketSpring bracket
-
2836489 RivetRivet
-
29514053654 Rubber bumperRubber bumper
-
30605353078 BracketBracket
-
3136108 RivetRivet
-
32605453284 BracketBracket
-
33514053352 Rubber bumperRubber bumper
-
3420087 WasherWasher
-
3536037 RivetRivet
-
36415107100 SpringSpring
-
37514053702 Reflection sheetReflection sheet
-
38514053622 Reflection sheetReflection sheet
-
39514053393 Spring bracketSpring bracket
-
40514053436 Spring bracketSpring bracket
-
41293800090 Sealant, Loctite, 80mlSealant, Loctite, 80ml
