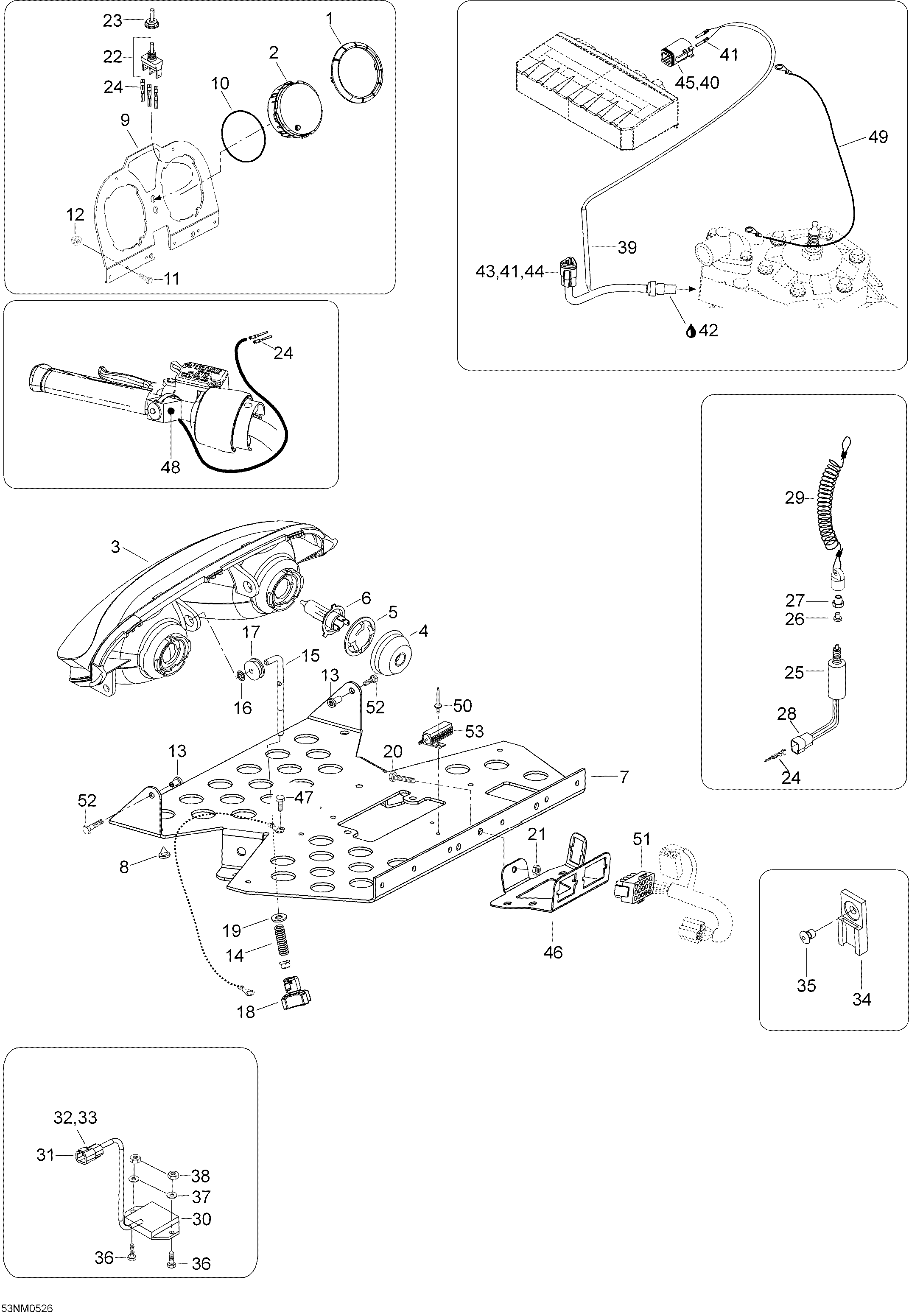

10- Electrical System для BRP Lynx Rave 440 - 2005
-
№АртикулНазвание
-
1515175651 Gauge ringGauge ring
-
2515176265 TachometerTachometer
-
3515175909 halogen headlamp. Includes 3 to 6halogen headlamp. Includes 3 to 6
-
4410607100 CoverCover
-
5410608300 Bulp holderBulp holder
-
6410504401 Halogen bulp 60/55WHalogen bulp 60/55W
-
7605252400 Headlamp supportHeadlamp support
-
8605452114 PluggPlugg
-
9605352668 Instrument panelInstrument panel
-
1048216 O-ringO-ring
-
1140026 Hex. screw M5 x 12Hex. screw M5 x 12
-
1233062 Elastic flanged nut M5Elastic flanged nut M5
-
13250100018 Well-nutWell-nut
-
14415100600 SpringSpring
-
15517295800 Adjuster RodAdjuster Rod
-
16732610072 Nut PushNut Push
-
17415100800 GrommetGrommet
-
18515175975 KnobKnob
-
1920003 Washer A6,4Washer A6,4
-
2040029 Hex. screw M6 x 16Hex. screw M6 x 16
-
2133010 Elastic stop nut M6Elastic stop nut M6
-
22410107300 SwitchSwitch
-
23515175281 Switch coverSwitch cover
-
2442603 ConnectorConnector
-
25515175571 Brake switchBrake switch
-
26570151100 CapCap
-
27515145900 NutNut
-
2842608 Female terminal housingFemale terminal housing
-
29515167900 Cap ass'yCap ass'y
-
30515175655 Voltage regulator. Includes 30 to 33Voltage regulator. Includes 30 to 33
-
31278001477 Female terminal housingFemale terminal housing
-
32515175568 ConnectorConnector
-
33278001478 Female lockFemale lock
-
34515175917 ClipClip
-
3536005 RivetRivet
-
3640030 Hex. screw M6 x 20Hex. screw M6 x 20
-
3720009 Washer A6,4Washer A6,4
-
3833010 Elastic stop nut M6Elastic stop nut M6
-
39515176041 Temperature sensor. Includes 39 to 44Temperature sensor. Includes 39 to 44
-
40515175670 Female terminal housingFemale terminal housing
-
41278000632 Female terminalFemale terminal
-
42293800018 Loctite 592, 50 mlLoctite 592, 50 ml
-
43515175671 Female terminal housingFemale terminal housing
-
44515175676 Female lockFemale lock
-
45515175706 Female lockFemale lock
-
46605352908 BracketBracket
-
47210251680 Hex. screw M5 x 16Hex. screw M5 x 16
-
48605350897 Srat knobbSrat knobb
-
49605352611 Ground wireGround wire
-
5036008 RivetRivet
-
5142617 Male terminal housingMale terminal housing
-
5240231 Hex. screw M5 x 30Hex. screw M5 x 30
-
5342625 ResistorResistor
