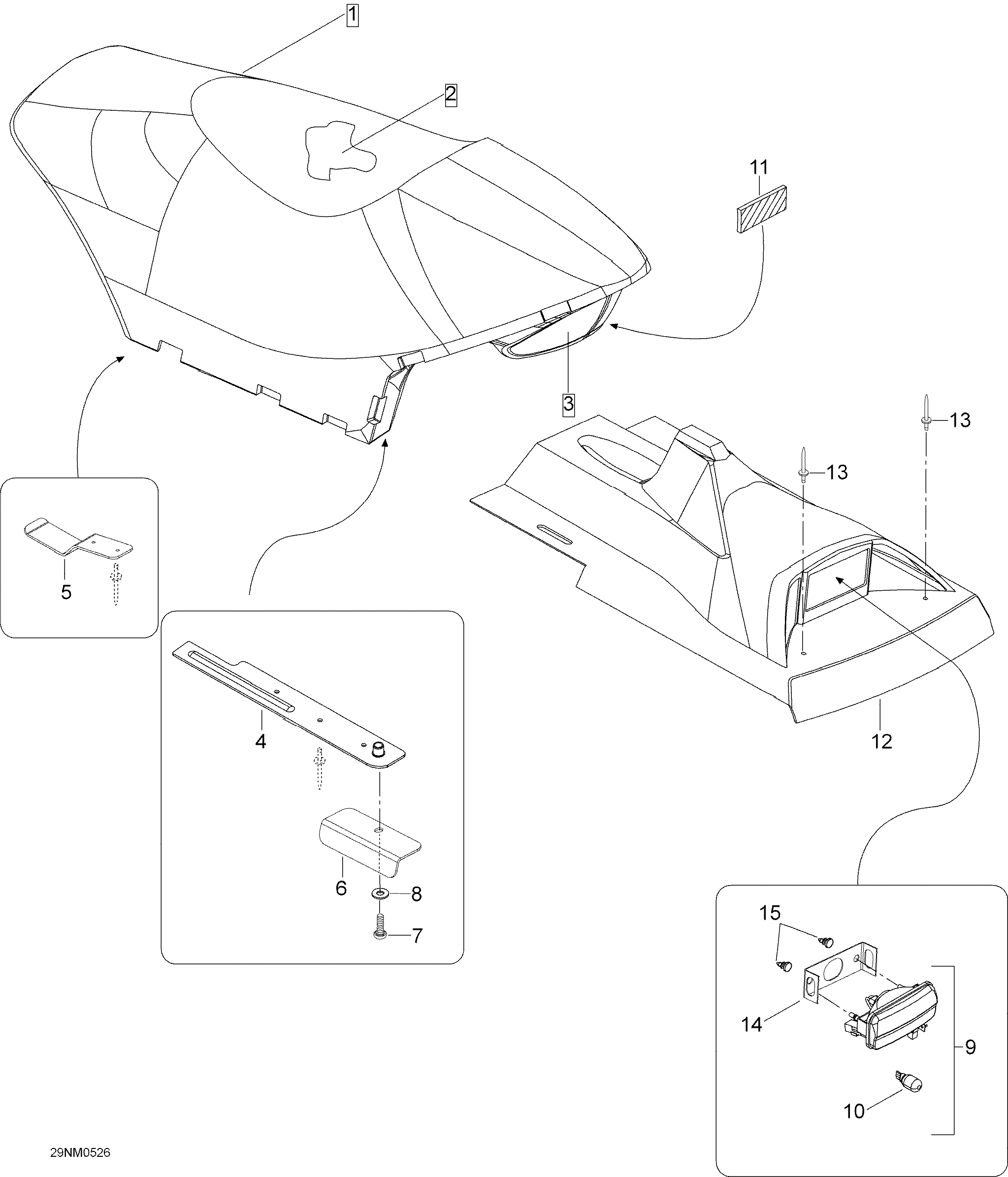

09- Seat для BRP Lynx Rave 440 - 2005
-
№АртикулНазвание
-
1605252236 CoverCover
-
2605252230 FoamFoam
-
3605252229 Seat baseSeat base
-
4605352802 R.H. BracketR.H. Bracket
-
4605352803 L.H. BracketL.H. Bracket
-
5605352804 SupportSupport
-
6605452935 Support plateSupport plate
-
740344 Socket head screw M8 x 25Socket head screw M8 x 25
-
820014 Lock washer A8Lock washer A8
-
9710000652 Tail lampTail lamp
-
10710000653 Tail lamp bulpTail lamp bulp
-
1121126 ReflectorReflector
-
12605251544 Cover, tunnelCover, tunnel
-
1336036 RivetRivet
-
14605352700 BracketBracket
-
15705001119 GrommetGrommet
