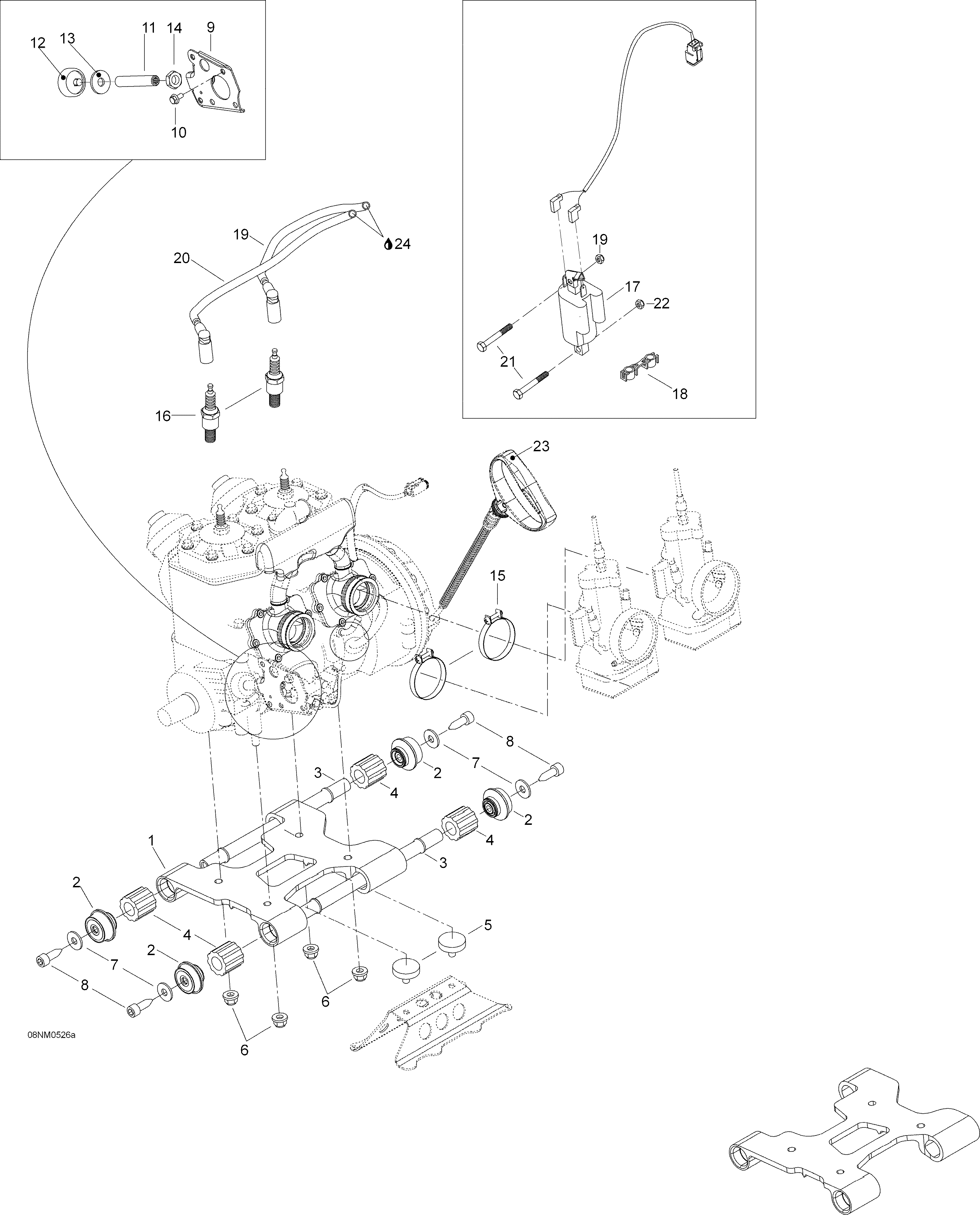

01- Engine And Engine Support для BRP Lynx Rave 440 - 2005
-
№АртикулНазвание
-
1512059754 Engine supportEngine support
-
2512059777 Rubber mountRubber mount
-
3512059776 Threated rodThreated rod
-
4512059781 Rubber damperRubber damper
-
5512059738 Rubber mountRubber mount
-
633074 Elastic flanged nut M10Elastic flanged nut M10
-
7506151251 WasherWasher
-
8250000131 Hex. screw m10 x 50Hex. screw m10 x 50
-
9512059840 PlatePlate
-
1040327 Hex. screw M6 x 12Hex. screw M6 x 12
-
11250500007 Stopper screwStopper screw
-
12512059741 StopperStopper
-
1320023 WasherWasher
-
14232170411 Nut M14Nut M14
-
15512059834 ClampClamp
-
16512059533 Spark plug BR9 ECSSpark plug BR9 ECS
-
17512059564 Ignition coilIgnition coil
-
18410914600 LockLock
-
19512059695 Cable ass'y (300mm)Cable ass'y (300mm)
-
20512059696 Cable ass'y (375mm)Cable ass'y (375mm)
-
2140031 Hex. screw M6 x 65Hex. screw M6 x 65
-
2233200 Elastic stop nut M6Elastic stop nut M6
-
23572084400 GripGrip
-
24293550004 Dielectric grease, 150gDielectric grease, 150g
-
-
