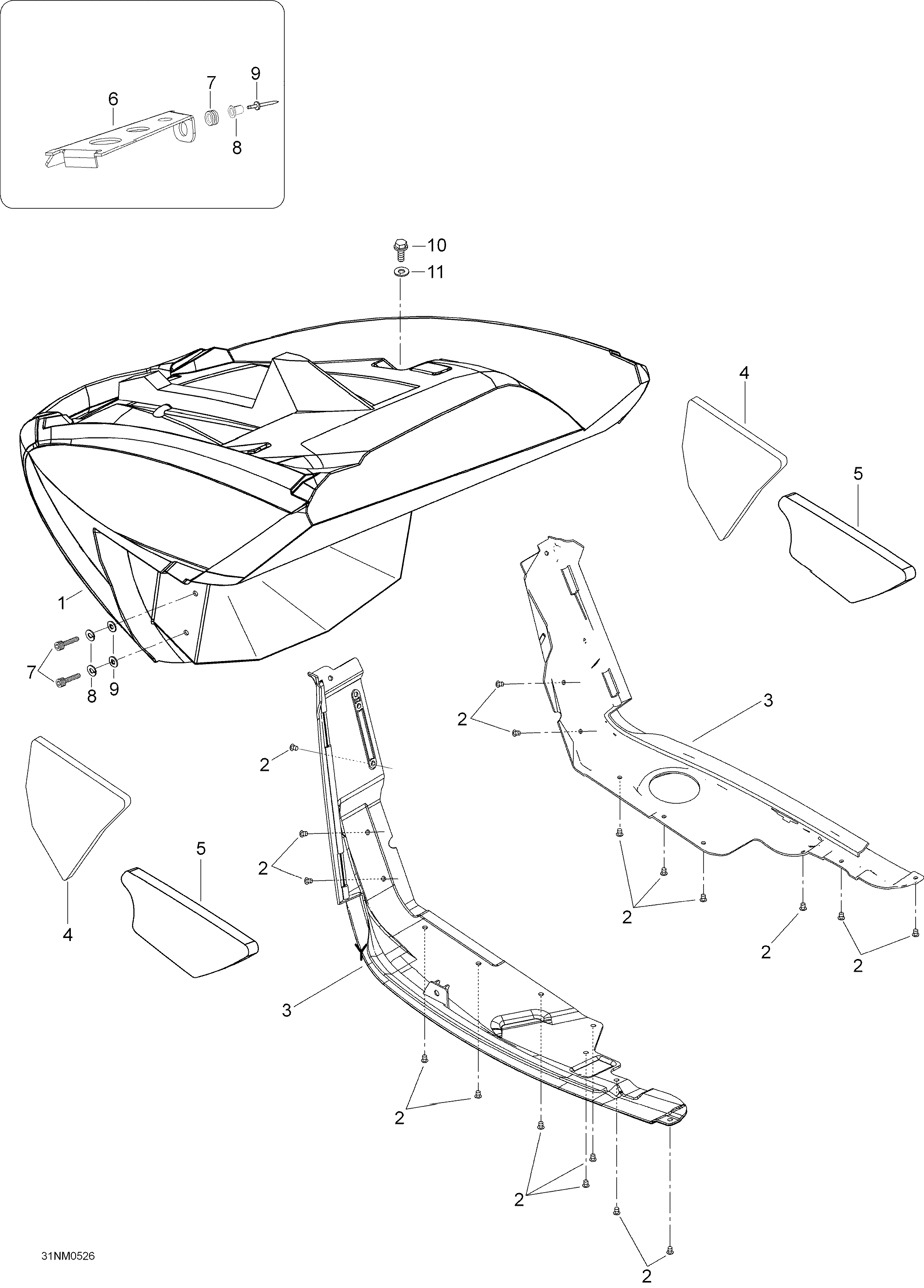

09- Bottom Pan для BRP Lynx Rave 440 - 2005
-
№АртикулНазвание
-
1605150087 Front bottom panFront bottom pan
-
236037 RivetRivet
-
3502006702 R.H. Bottom panR.H. Bottom pan
-
3502006703 L.H. Bottom panL.H. Bottom pan
-
4605151228 R.H. FoamR.H. Foam
-
4605151229 L.H. FoamL.H. Foam
-
5605153204 R.H. Foam, rearR.H. Foam, rear
-
5605153194 L.H. Foam, rearL.H. Foam, rear
-
6605353182 Bracket, hoodBracket, hood
-
7517302841 GrommetGrommet
-
836013 Insert M6Insert M6
-
936014 RivetRivet
-
1040327 Hex. screw M6 x 12Hex. screw M6 x 12
-
1120038 WasherWasher
