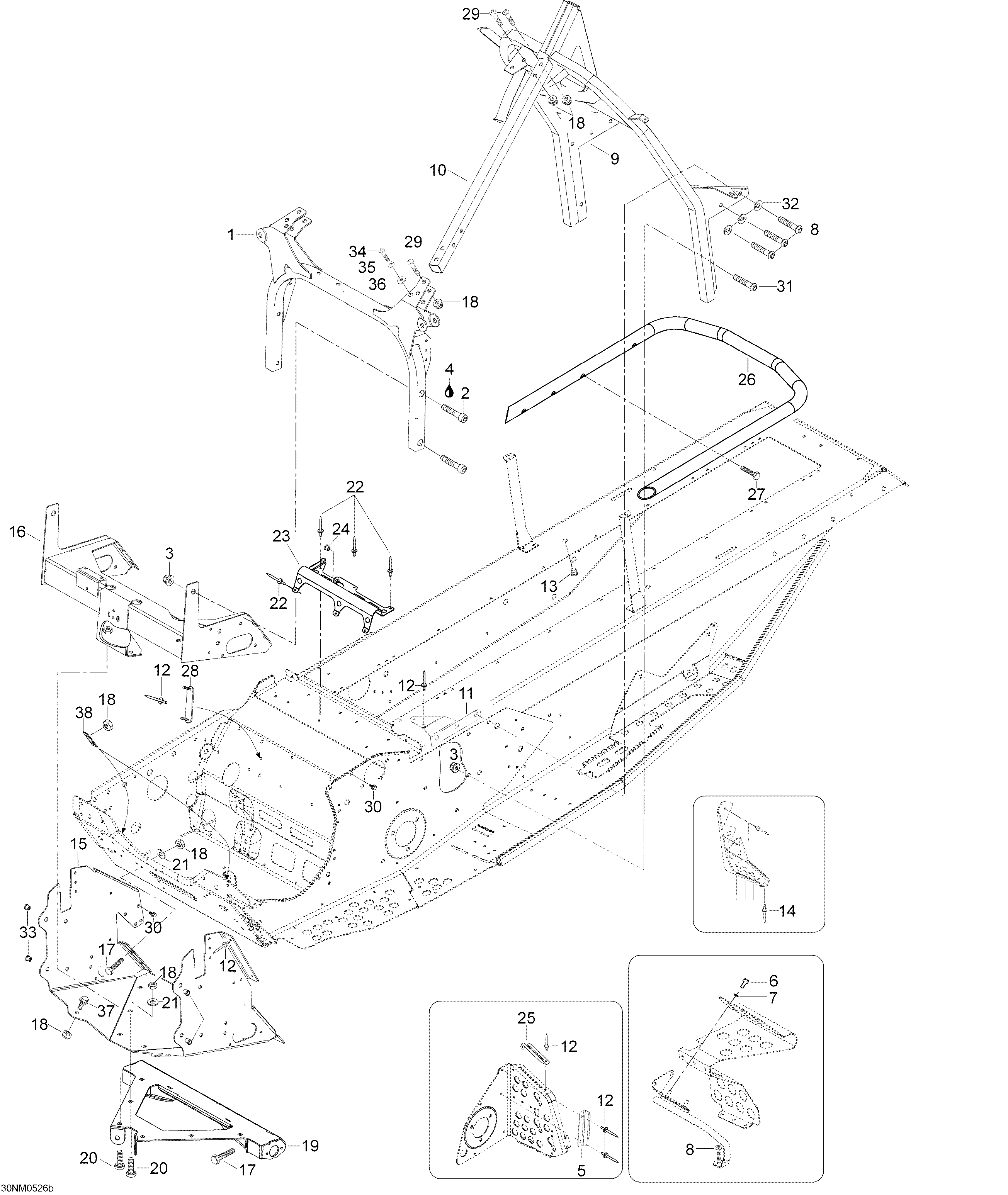

09- Frame And Components для BRP Lynx Rave 440 - 2005
-
№АртикулНазвание
-
1605249856 SupportSupport
-
240810 Socket head screw M8 x 20Socket head screw M8 x 20
-
333201 Elastic flanged nut M8Elastic flanged nut M8
-
4293800060 Loctite 243, 10mlLoctite 243, 10ml
-
5518317504 Cable protectorCable protector
-
640381 Socket head screw M6 x 20Socket head screw M6 x 20
-
720117 WasherWasher
-
840399 Socket head screw M8 x 16Socket head screw M8 x 16
-
9605250887 Handle supportHandle support
-
10605349876 Side barSide bar
-
11605352533 L.H. SupportL.H. Support
-
11605352534 R.H. SupportR.H. Support
-
1236108 RivetRivet
-
1328135 PlugPlug
-
1436083 RivetRivet
-
15605252562 Front cross memberFront cross member
-
16605350136 Front supportFront support
-
1740037 Screw M8 x 25Screw M8 x 25
-
1833011 Elastic flanged nut M8Elastic flanged nut M8
-
19605252697 SubframeSubframe
-
2040058 Locking screw M8 x 20Locking screw M8 x 20
-
2120010 Washer A8,4Washer A8,4
-
2236007 RivetRivet
-
23518323532 Air intake supportAir intake support
-
2436086 Rivet nut M6Rivet nut M6
-
25518322726 BracketBracket
-
26605352470 Rear bumperRear bumper
-
2740336 Hex. screw M8 x 20Hex. screw M8 x 20
-
28605451470 Bracket, fuel pumpBracket, fuel pump
-
2940137 Hex. screw M8 x 40Hex. screw M8 x 40
-
3040327 Hex. screw M6 x 12Hex. screw M6 x 12
-
3140351 Socket head screw M8 x 20Socket head screw M8 x 20
-
3220014 Lock washer A8Lock washer A8
-
3333043 Nut M6Nut M6
-
3440332 Socket head screw M6 x 16Socket head screw M6 x 16
-
3520052 Lock waher A6Lock waher A6
-
3620009 Washer A6.4Washer A6.4
-
3740386 Screw M8 x 30Screw M8 x 30
-
38605452373 Support plateSupport plate
